4 Pin Configuration and Functions

GUID-F1943E80-BC49-43D4-B229-FE85B6E056E6-low.gif Figure 4-1 LMC6081 D Package, 8-Pin SOIC, and P Package, 8-Pin PDIP
Table 4-1 Pin Functions: LMC6081
PIN TYPE(1) DESCRIPTION
NAME NO.
+IN 3 Input Noninverting input
–IN 2 Input Inverting input
NC 1, 5, 8 — No internal connection (can be left floating)
OUT 6 Output Output
V+ 7 Power Positive (highest) power supply
V– 4 Power Negative (lowest) power supply
GUID-CD30933B-FDA3-4D18-BF91-4064782A917F-low.gif Figure 4-2 LMC6082 D Package, 8-Pin SOIC, and P Package, 8-Pin PDIP
Table 4-2 Pin Functions: LMC6081
PIN TYPE(1) DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
–IN A 2 Input Inverting input, channel A
+IN B 5 Input Noninverting input, channel B
–IN B 6 Input Inverting input, channel B
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
V+ 8 Power Positive (highest) power supply
V– 4 Power Negative (lowest) power supply

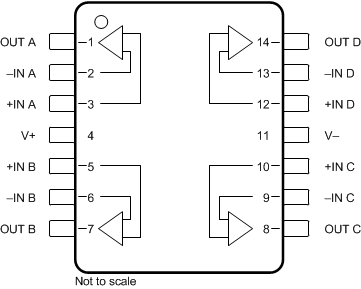

GUID-E4345B66-106B-4662-8A41-57CE2F2BD88F-low.gif Figure 4-3 LMC6084 D Package, 8-Pin SOIC, and P Package, 8-Pin PDIP
Table 4-3 Pin Functions: LMC6084
PIN TYPE(1) DESCRIPTION
NAME NO.
+IN A 3 Input Noninverting input, channel A
+IN B 5 Input Noninverting input, channel B
+IN C 10 Input Noninverting input, channel C
+IN D 12 Input Noninverting input, channel D
–IN A 2 Input Inverting input, channel A
–IN B 6 Input Inverting input, channel B
–IN C 9 Input Inverting input, channel C
–IN D 13 Input Inverting input, channel D
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
OUT C 8 Output Output, channel C
OUT D 14 Output Output, channel D
V+ 4 Power Positive (highest) power supply
V– 11 Power Negative (lowest) power supply
