5.7 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 500 kHz, L = 5.6 µH, COUT = 47 µF × 2, TA = 25°C.

LMR14030 Efficiency vs Load Current
VOUT = 5 V fSW = 500 kHz
Figure 5-1 Efficiency vs Load Current

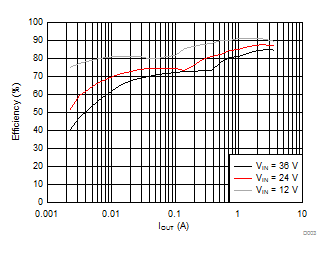

LMR14030 Efficiency vs Load Current
VOUT = 3.3 V fSW = 1 MHz
Figure 5-3 Efficiency vs Load Current
LMR14030 Load Regulation
VOUT = 5 V fSW = 500 kHz
Figure 5-5 Load Regulation
LMR14030 Dropout Curve
VOUT = 5 V fSW = 500 kHz
Figure 5-7 Dropout Curve

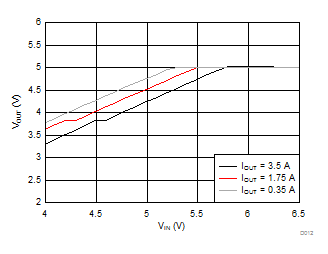

LMR14030 Dropout Curve
VOUT = 5 V fSW = 2.2 MHz
Figure 5-9 Dropout Curve

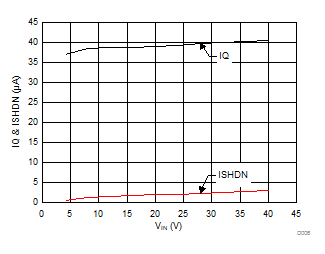

LMR14030 Shut-down Current and Quiescent CurrentFigure 5-11 Shut-down Current and Quiescent Current
LMR14030 Efficiency vs Load Current
VOUT = 5 V fSW = 1 MHz
Figure 5-2 Efficiency vs Load Current
LMR14030 Efficiency vs Load Current
VOUT = 3.3 V fSW = 2.2 MHz
Figure 5-4 Efficiency vs Load Current
LMR14030 Frequency vs VFB
VOUT = 5 V fSW = 500 kHz
Figure 5-6 Frequency vs VFB

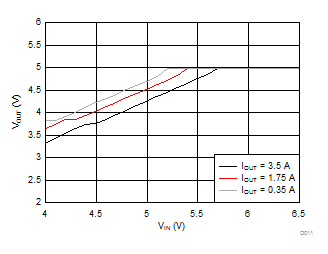

LMR14030 Dropout Curve
VOUT = 5V fSW = 1 MHz
Figure 5-8 Dropout Curve

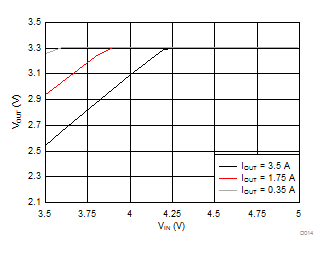

LMR14030 Dropout Curve
VOUT = 3.3 V fSW = 2.2 MHz
Figure 5-10 Dropout Curve
LMR14030 UVLO Threshold
IOUT = 0 A
Figure 5-12 UVLO Threshold
