Typical Characteristics

VS = ±18 V, VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2, and CL = 100 pF, (unless otherwise noted)

Table 1. Characteristic Performance Measurements

DESCRIPTION FIGURE
Offset Voltage Production Distribution Figure 1
Offset Voltage Drift Distribution Figure 2
Offset Voltage vs Temperature Figure 3
Offset Voltage vs Common-Mode Voltage Figure 4
Offset Voltage vs Common-Mode Voltage (Upper Stage) Figure 5
Offset Voltage vs Power Supply Figure 6
IB and IOS vs Common-Mode Voltage Figure 7
Input Bias Current vs Temperature Figure 8
Output Voltage Swing vs Output Current (Maximum Supply) Figure 9
CMRR and PSRR vs Frequency (Referred-to-Input) Figure 10
CMRR vs Temperature Figure 11
PSRR vs Temperature Figure 12
0.1-Hz to 10-Hz Noise Figure 13
Input Voltage Noise Spectral Density vs Frequency Figure 14
THD+N Ratio vs Frequency Figure 15
THD+N vs Output Amplitude Figure 16
Quiescent Current vs Temperature Figure 17
Quiescent Current vs Supply Voltage Figure 18
Open-Loop Gain and Phase vs Frequency Figure 19
Closed-Loop Gain vs Frequency Figure 20
Open-Loop Gain vs Temperature Figure 21
Open-Loop Output Impedance vs Frequency Figure 22
Small-Signal Overshoot vs Capacitive Load (100-mV Output Step) Figure 23, Figure 24
No Phase Reversal Figure 25
Positive Overload Recovery Figure 26
Negative Overload Recovery Figure 27
Small-Signal Step Response (100 mV) Figure 28, Figure 29
Large-Signal Step Response Figure 30, Figure 31
Large-Signal Settling Time (10-V Positive Step) Figure 32
Large-Signal Settling Time (10-V Negative Step) Figure 33
Short-Circuit Current vs Temperature Figure 34
Maximum Output Voltage vs Frequency Figure 35
EMIRR IN+ vs Frequency Figure 36
OPA170 OPA2170 OPA4170 G001_BOS557.gifFigure 1. Offset Voltage Production Distribution
OPA170 OPA2170 OPA4170 G003_BOS557.pngFigure 3. Offset Voltage vs Temperature
OPA170 OPA2170 OPA4170 G005_BOS557.gifFigure 5. Offset Voltage vs Common-Mode Voltage
(Upper Stage)
OPA170 OPA2170 OPA4170 G007_BOS557.gifFigure 7. IB and IOS vs Common-Mode Voltage
OPA170 OPA2170 OPA4170 G009_BOS557.gifFigure 9. Output Voltage Swing vs Output Current (Maximum Supply)
OPA170 OPA2170 OPA4170 G011_BOS557.gifFigure 11. CMRR vs Temperature
OPA170 OPA2170 OPA4170 G013_BOS557.gifFigure 13. 0.1-Hz to 10-Hz Noise
OPA170 OPA2170 OPA4170 G015_BOS557.gifFigure 15. THD+N Ratio vs Frequency
OPA170 OPA2170 OPA4170 G017_BOS557.gifFigure 17. Quiescent Current vs Temperature
OPA170 OPA2170 OPA4170 G019_BOS557.gifFigure 19. Open-Loop Gain and Phase vs Frequency
OPA170 OPA2170 OPA4170 G021_BOS557.gifFigure 21. Open-Loop Gain vs Temperature
OPA170 OPA2170 OPA4170 G023_BOS557.gif
100-mV output step
Figure 23. Small-Signal Overshoot vs Capacitive Load
OPA170 OPA2170 OPA4170 G025_BOS557.gifFigure 25. No Phase Reversal
OPA170 OPA2170 OPA4170 G027_BOS557.gifFigure 27. Negative Overload Recovery
OPA170 OPA2170 OPA4170 G029_BOS557.gifFigure 29. Small-Signal Step Response (100 mV)
OPA170 OPA2170 OPA4170 G031_BOS557.gif
Figure 31. Large-Signal Step Response
OPA170 OPA2170 OPA4170 G033_BOS557.gif
10-V negative step
Figure 33. Large-Signal Settling Time
OPA170 OPA2170 OPA4170 G035_BOS557.pngFigure 35. Maximum Output Voltage vs Frequency
OPA170 OPA2170 OPA4170 G002_BOS557.gifFigure 2. Offset Voltage Drift Distribution
OPA170 OPA2170 OPA4170 G004_BOS557.gifFigure 4. Offset Voltage vs Common-Mode Voltage
OPA170 OPA2170 OPA4170 G006_BOS557.pngFigure 6. Offset Voltage vs Power Supply
OPA170 OPA2170 OPA4170 G008_BOS557.gifFigure 8. Input Bias Current vs Temperature
OPA170 OPA2170 OPA4170 G010_BOS557.gifFigure 10. CMRR and PSRR vs Frequency
(Referred-to Input)
OPA170 OPA2170 OPA4170 G012_BOS557.pngFigure 12. PSRR vs Temperature
OPA170 OPA2170 OPA4170 G014_BOS557.pngFigure 14. Input Voltage Noise Spectral Density vs Frequency
OPA170 OPA2170 OPA4170 G016_BOS557.gifFigure 16. THD+N vs Output Amplitude
OPA170 OPA2170 OPA4170 G018_BOS557.gifFigure 18. Quiescent Current vs Supply Voltage
OPA170 OPA2170 OPA4170 G020_BOS557.gifFigure 20. Closed-Loop Gain vs Frequency
OPA170 OPA2170 OPA4170 G022_BOS557.gifFigure 22. Open-Loop Output Impedance vs Frequency
OPA170 OPA2170 OPA4170 G024_BOS557.gif
100-mV output step
Figure 24. Small-Signal Overshoot vs Capacitive Load
OPA170 OPA2170 OPA4170 G026_BOS557.gifFigure 26. Positive Overload Recovery
OPA170 OPA2170 OPA4170 G028_BOS557.gifFigure 28. Small-Signal Step Response (100 mV)
OPA170 OPA2170 OPA4170 G030_BOS557.gifFigure 30. Large-Signal Step Response
OPA170 OPA2170 OPA4170 G032_BOS557.gif
10-V positive step

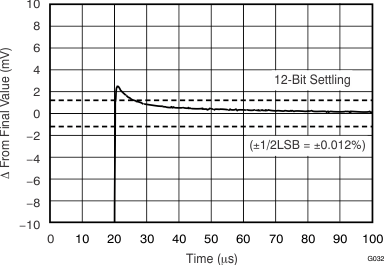

Figure 32. Large-Signal Settling Time
OPA170 OPA2170 OPA4170 G034_BOS557.png
Figure 34. Short-Circuit Current vs Temperature
OPA170 OPA2170 OPA4170 G036_BOS557.gifFigure 36. EMIRR IN+ vs Frequency
