5.8 Typical Characteristics

at TA = 25°C, VS = ±20V, VCM = VS / 2, RLOAD = 10kΩ (unless otherwise noted)

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage Production Distribution
Distribution from 74 amplifiers, TA = 25°C
Figure 5-1 Offset Voltage Production Distribution
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Temperature
VCM = V–
Data from 74 amplifiers
Figure 5-3 Offset Voltage vs Temperature

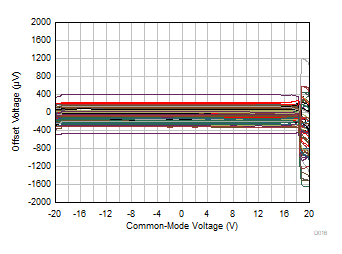

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage
TA = 25°C
Data from 74 amplifiers
Figure 5-5 Offset Voltage vs Common-Mode Voltage
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage
TA = 125°C
Data from 74 amplifiers
Figure 5-7 Offset Voltage vs Common-Mode Voltage
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage
TA = –40°C
Data from 74 amplifiers
Figure 5-9 Offset Voltage vs Common-Mode Voltage
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Power Supply
VCM = V–
Data from 74 amplifiers
Figure 5-11 Offset Voltage vs Power Supply

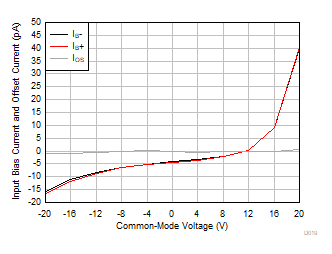

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Input Bias Current and Offset Current vs Common-Mode VoltageFigure 5-13 Input Bias Current and Offset Current vs Common-Mode Voltage
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Slew Rate vs Input Step Voltage

G = +1, CL = 20pF

Figure 5-15 Slew Rate vs Input Step Voltage

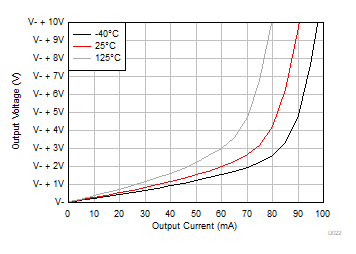

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Output Voltage Swing vs Output Current (Sinking)
VS = 40V
Figure 5-17 Output Voltage Swing vs Output Current (Sinking)
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Output Voltage Swing vs Output Current (Sinking)
VS = 5V
Figure 5-19 Output Voltage Swing vs Output Current (Sinking)

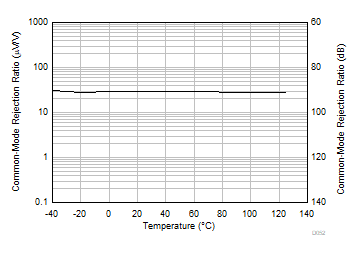

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 CMRR vs Temperature
VS = 40V
Figure 5-21 CMRR vs Temperature
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 CMRR vs Temperature
VS = 2.7V
Figure 5-23 CMRR vs Temperature
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 0.1Hz to 10Hz NoiseFigure 5-25 0.1Hz to 10Hz Noise

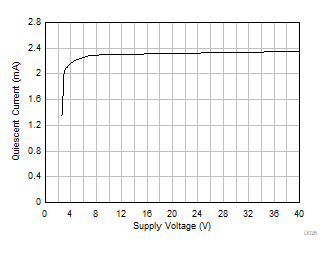

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Quiescent Current vs Supply Voltage
VCM = V–
Figure 5-27 Quiescent Current vs Supply Voltage
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Open-Loop Voltage Gain vs Temperature (dB)Figure 5-29 Open-Loop Voltage Gain vs Temperature (dB)

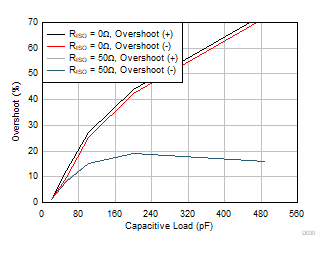

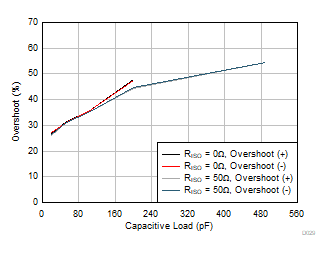

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Small-Signal Overshoot vs Capacitive Load
20mVpp output step, G = –1
Figure 5-31 Small-Signal Overshoot vs Capacitive Load

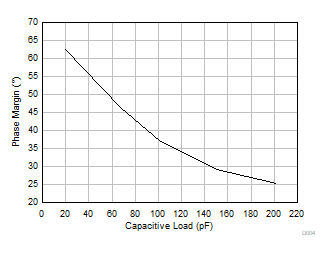

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Phase Margin vs Capacitive Load
G = +1
Figure 5-33 Phase Margin vs Capacitive Load
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Positive Overload Recovery
G = –10
Figure 5-35 Positive Overload Recovery

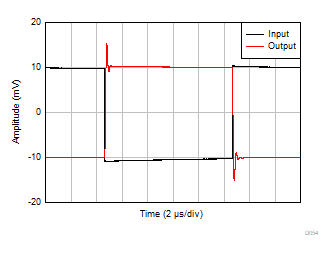

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Small-Signal Step Response
CL = 20pF, G = 1, 20mVpp step response
Figure 5-37 Small-Signal Step Response

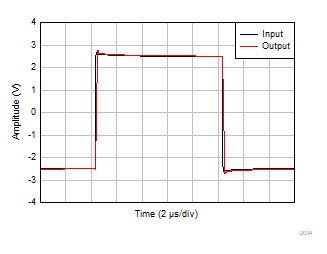

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Large-Signal Step Response
CL = 20pF, G = 1, 5Vpp step response
Figure 5-39 Large-Signal Step Response

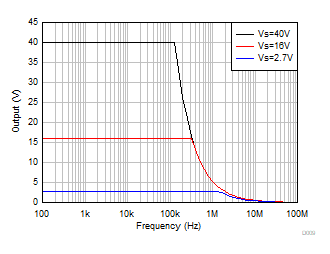

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Maximum Output Voltage vs FrequencyFigure 5-41 Maximum Output Voltage vs Frequency

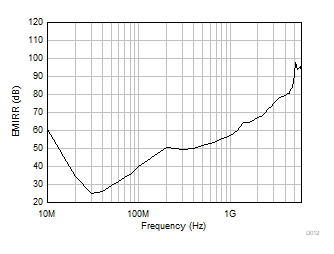

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 EMIRR (Electromagnetic Interference Rejection Ratio) vs FrequencyFigure 5-43 EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage Drift Distribution
Distribution from 74 amplifiers
Figure 5-2 Offset Voltage Drift Distribution
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Temperature
VCM = V+
Data from 74 amplifiers
Figure 5-4 Offset Voltage vs Temperature

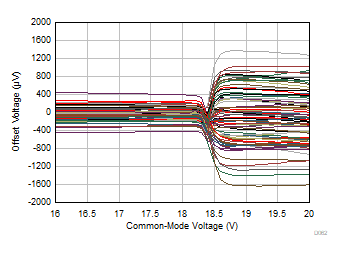

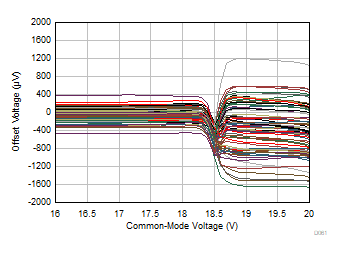

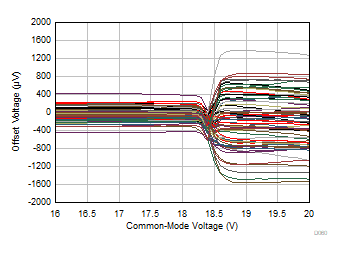

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage (Transition Region)
TA = 25°C
Data from 74 amplifiers
Figure 5-6 Offset Voltage vs Common-Mode Voltage (Transition Region)
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage (Transition Region)
TA = 125°C
Data from 74 amplifiers
Figure 5-8 Offset Voltage vs Common-Mode Voltage (Transition Region)
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Offset Voltage vs Common-Mode Voltage (Transition Region)
TA = –40°C
Data from 74 amplifiers
Figure 5-10 Offset Voltage vs Common-Mode Voltage (Transition Region)
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Closed-Loop Gain vs FrequencyFigure 5-12 Closed-Loop Gain vs Frequency

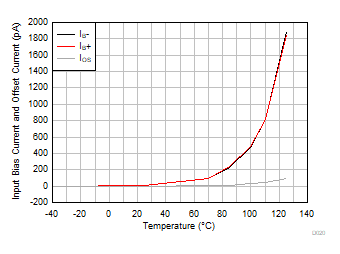

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Input Bias Current and Offset Current vs TemperatureFigure 5-14 Input Bias Current and Offset Current vs Temperature

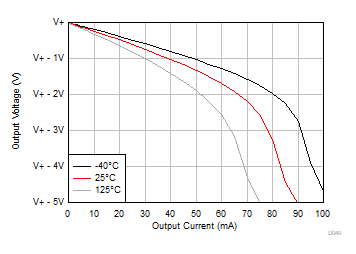

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Output Voltage Swing vs Output Current (Sourcing)
VS = 40V
Figure 5-16 Output Voltage Swing vs Output Current (Sourcing)
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Output Voltage Swing vs Output Current (Sourcing)
VS = 5V
Figure 5-18 Output Voltage Swing vs Output Current (Sourcing)

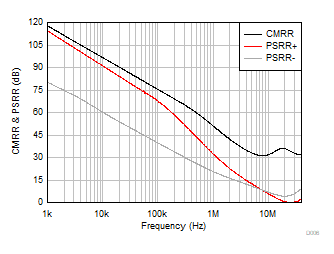

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 CMRR and PSRR vs Frequency
Figure 5-20 CMRR and PSRR vs Frequency
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 CMRR vs Temperature
VS = 5V
Figure 5-22 CMRR vs Temperature

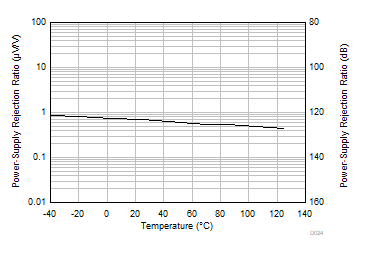

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 PSRR vs Temperature
Figure 5-24 PSRR vs Temperature

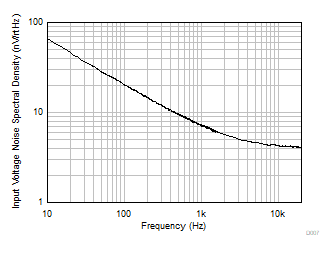

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Input Voltage Noise Spectral Density vs FrequencyFigure 5-26 Input Voltage Noise Spectral Density vs Frequency

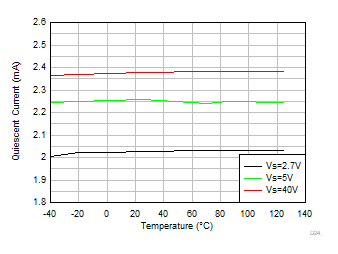

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Quiescent Current vs Temperature
VCM = V–
Figure 5-28 Quiescent Current vs Temperature
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Open-Loop Output Impedance vs FrequencyFigure 5-30 Open-Loop Output Impedance vs Frequency
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Small-Signal Overshoot vs Capacitive Load
20mVpp output step, G = +1
Figure 5-32 Small-Signal Overshoot vs Capacitive Load

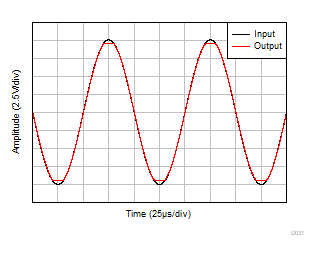

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 No Phase Reversal
VIN = ±10Vpp; VS = VOUT = ±9.55V
Figure 5-34 No Phase Reversal

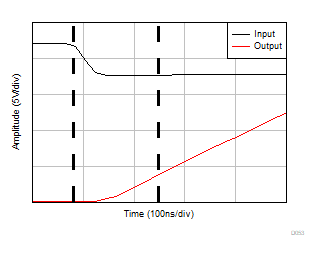

OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Negative Overload Recovery
G = –10
Figure 5-36 Negative Overload Recovery
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Small-Signal Step Response
CL = 20pF, G = –1, 20mVpp step response
Figure 5-38 Small-Signal Step Response
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Large-Signal Step Response
CL = 20pF, G = –1, 5Vpp step response
Figure 5-40 Large-Signal Step Response
OPA992-Q1 OPA2992-Q1 OPA4992-Q1 Channel Separation vs FrequencyFigure 5-42 Channel Separation vs Frequency
