Control Interface Timing Requirements

these timing parameters are critical for proper control port operation
MIN NOM MAX UNIT
t(MCY) MC pulse cycle time See Figure 1. 100 ns
t(MCL) MC low-level time 50 ns
t(MCH) MC high-level time 50 ns
t(MCH) ML high-level time See (1) ns
t(MLS) ML falling edge to MC rising edge 20 ns
t(MLH) ML hold time(2) 20 ns
t(MDH) MD hold time 15 ns
t(MCS) MD setup time 20 ns
PCM1753 PCM1754 PCM1755 eq_timing_sles254.gifseconds (min); fS: sampling rate.
MC rising edge for LSB to ML rising edge.

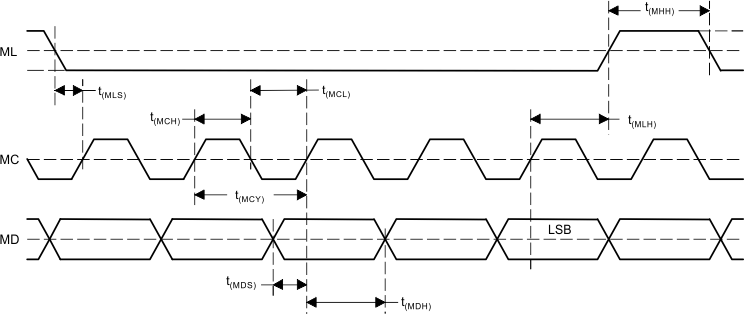

PCM1753 PCM1754 PCM1755 sftwarectrl_03.gifFigure 1. Control Interface Timing
