4 Detailed Description

4.1 Supported Command Set

Table 4-1 summarizes the ISO/IEC 15693 mandatory and optional commands that are supported by this transponder.

Table 4-1 Supported Command Set (ISO/IEC 15693 Mandatory and Optional Commands)

REQUEST REQUEST MODE (1)
REQUEST CODE INVENTORY ADDRESSED NONADDRESSED AFI OPTIONAL FLAG
Inventory 0x01 ✓ ✗ ✗ ✓ 0/–
Stay Quiet 0x02 ✗ ✓ ✗ ✗ 0/–
Read_Single_Block 0x20 ✗ ✓ ✓ ✗ –/1
Write_Single_Block 0x21 ✗ ✓ ✓ ✗ –/1
Lock_Block 0x22 ✗ ✓ ✓ ✗ –/1
(1) ✓ = Implemented, ✗ = Not applicable

4.2 Memory Organization

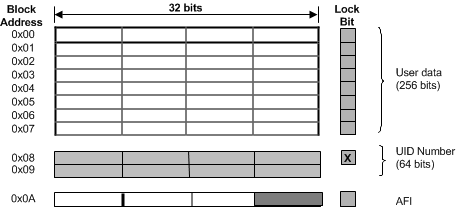

Figure 4-1 shows the organization of the user-accessible memory on this transponder.

RF37S114 memory_org_scbs907.gif Figure 4-1 Memory Organization
