11 Layout

11.1 Layout Guidelines

  1. Place series MELF resistors between the field inputs and the device input pins.
  2. Place small ~22 nF capacitors close to the field input pins to reduce noise.
  3. Place a supply buffering 0.1-µF capacitor around as close to the VCC pin as possible.

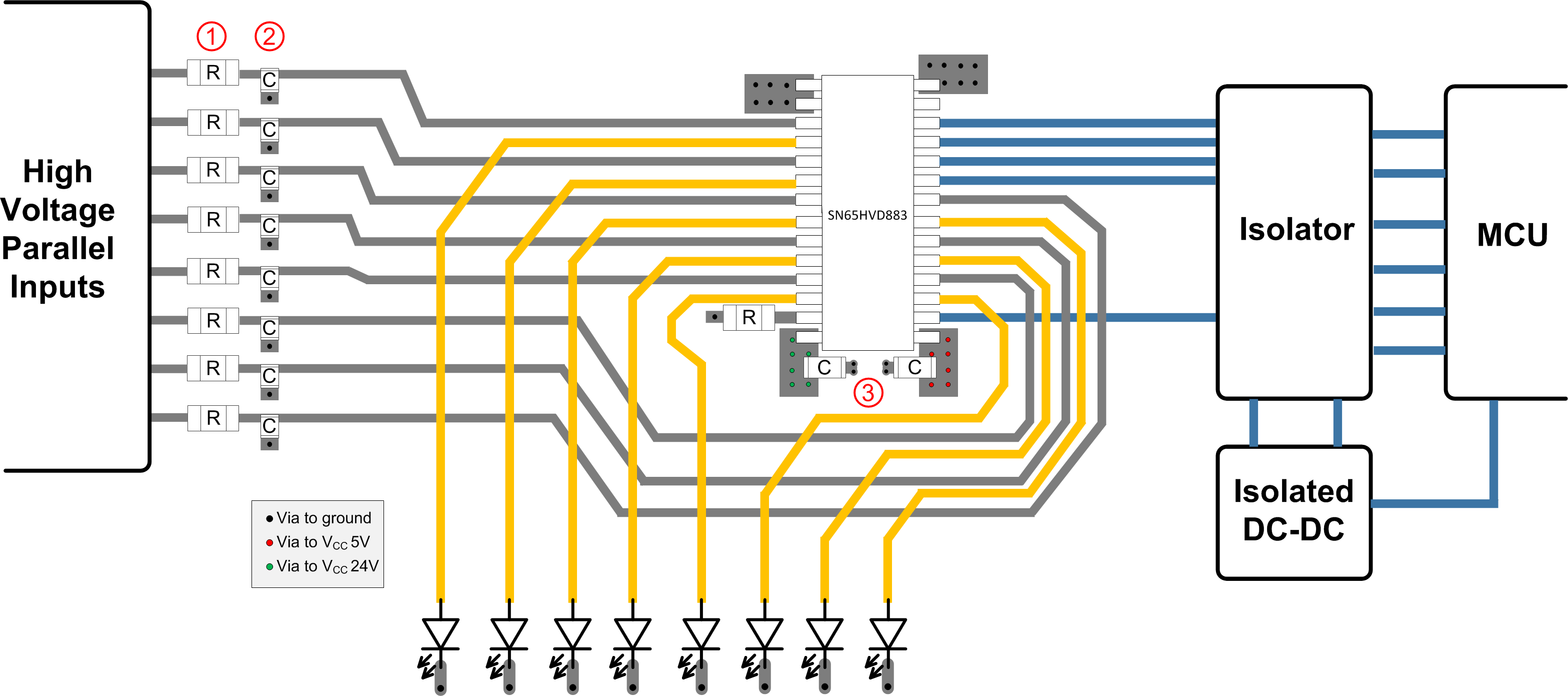

11.2 Layout Example

SN65HVS883 layout_example_slasee6.gif
