5.11 SPI Interface Timing

At 25°C, DVDD = 1.8V
PARAMETERTEST CONDITIONIOVDD=1.8VIOVDD=3.3VUNIT
MINTYPMAXMINTYPMAX
tsckSCLK period (1)10050ns
tsckhSCLK pulse width High5025ns
tscklSCLK pulse width Low5025ns
tleadEnable lead time3020ns
tlagEnable lag time3020ns
tdSequential transfer delay4020ns
taSlave DOUT access time4040ns
tdisSlave DOUT disable time4040ns
tsuDIN data setup time1515ns
thiDIN data hold time1510ns
tv;DOUTDOUT data valid time2518ns
trSCLK rise time44ns
tfSCLK fall time44ns
(1) These parameters are based on characterization and are not tested in production.

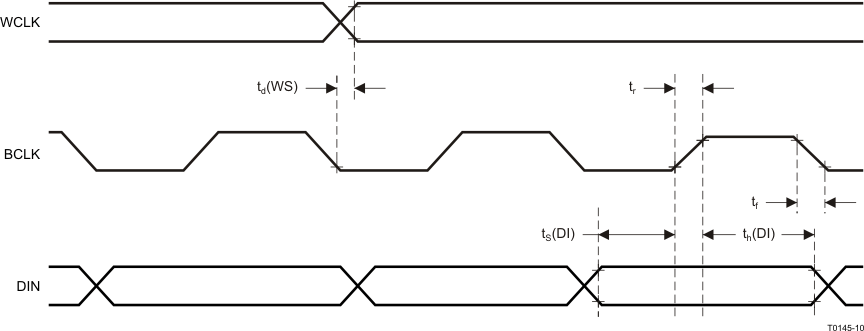

TAS2505 I2S/LJF/RJF Timing in Master ModeFigure 5-1 I2S/LJF/RJF Timing in Master Mode

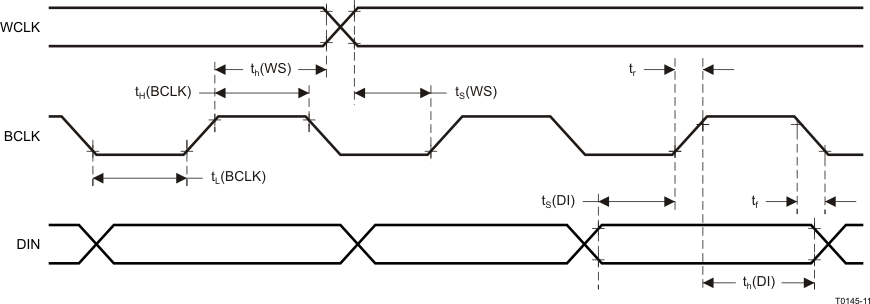

TAS2505 I2S/LJF/RJF Timing in Slave ModeFigure 5-2 I2S/LJF/RJF Timing in Slave Mode
TAS2505 DSP Timing in Master ModeFigure 5-3 DSP Timing in Master Mode
TAS2505 DSP Timing in Slave ModeFigure 5-4 DSP Timing in Slave Mode

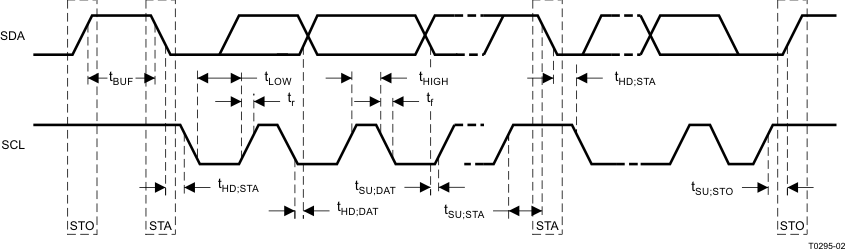

TAS2505 I2C Interface TimingFigure 5-5 I2C Interface Timing
TAS2505 SPI Interface Timing DiagramFigure 5-6 SPI Interface Timing Diagram
