Detailed Description

Overview

The TAS5727 is an efficient stereo I2S input Class-D audio power amplifier with a digital audio processor. The digital audio processor of the device uses noise shaping and customized correction algorithms to achieve a great power efficiency and high audio performance. Also, the device has up to eighteen equalizers and two-band advanced Automatic Gain Limiting (AGL).

The device needs only a single DVDD supply in addition to the higher-voltage PVDD power supply. An internal voltage regulator provides suitable voltage levels for the gate drive circuit. The wide PVDD power supply range of the device enables its use in a multitude of applications.

The TAS5727 is a slave-only device that is controlled by a bidirectional I2C interface that supports both 100-kHz and 400-kHz data transfer rates for single- and multiple-byte write and read operations. This control interface is used to program the registers of the device and read the device status. The PWM of this device operates with a carrier frequency between 384 kHz and 354 kHz, depending the sampling rate. This device allows the use of the same clock signal for both MCLK and BCLK (64xFs) when using a sampling frequency of 44.1 kHz or 48 kHz.

This amplifier can be configured in two different modes, stereo and mono single filter configuration is supported in mono mode.

Functional Block Diagrams

TAS5727 B0262-06_LOS599.gif Figure 15. Functional View
TAS5727 B0034-06_LOS637.gif Figure 16. Power-Stage Functional Block Diagram
TAS5727 B0321-11_LOS670.gif Figure 17. DAP Process Structure

Feature Description

Power Supply

To facilitate system design, the TAS5727 needs only a 3.3-V supply in addition to the (typical) 18-V power-stage supply. An internal voltage regulator provides suitable voltage levels for the gate drive circuitry. Additionally, all circuitry requiring a floating voltage supply, for example, the high-side gate drive, is accommodated by built-in bootstrap circuitry requiring only a few external capacitors.

To provide good electrical and acoustical characteristics, the PWM signal path for the output stage is designed as identical, independent half-bridges. For this reason, each half-bridge has separate bootstrap pins (BST_x), and power-stage supply pins (PVDD_x). The gate-drive voltage (GVDD_OUT) is derived from the PVDD voltage. Place all decoupling capacitors as close to their associated pins as possible. Inductance between the power-supply pins and decoupling capacitors must be avoided.

For a properly functioning bootstrap circuit, a small ceramic capacitor must be connected from each bootstrap pin (BST_x) to the power-stage output pin (OUT_x). When the power-stage output is low, the bootstrap capacitor is charged through an internal diode connected between the gate-drive regulator output pin (GVDD_OUT) and the bootstrap pin. When the power-stage output is high, the bootstrap capacitor potential is shifted above the output potential and thus provides a suitable voltage supply for the high-side gate driver. In an application with PWM switching frequencies in the range from 288 kHz to 384 kHz, TI recommends using 33-nF, X7R ceramic capacitors, size 0603 or 0805, for the bootstrap supply. These 33-nF capacitors ensure sufficient energy storage, even during minimal PWM duty cycles, to keep the high-side power-stage FET (LDMOS) fully turned on during the remaining part of the PWM cycle.

Pay special attention to the power-stage power supply; this includes component selection, PCB placement, and routing. As indicated, each half-bridge has independent power-stage supply pins (PVDD_x). For optimal electrical performance, EMI compliance, and system reliability, it is important that each PVDD_x pin is decoupled with a 100-nF, X7R ceramic capacitor placed as close as possible to each supply pin.

The TAS5727 is fully protected against erroneous power-stage turnon due to parasitic gate charging.

I2C Address Selection and Fault Output

I2C Chip Select

A_SEL_FAULT is an input pin during power up. It can be pulled high (15-kΩ pullup) or low (15-kΩ pulldown). High indicates an I2C subaddress of 0x56, and low a subaddress of 0x54.

I2C Device Address Change Procedure

  • Write to device address change enable register, 0xF8 with a value of 0xF9A5 A5A5.
  • Write to device register 0xF9 with a value of 0x0000 00XX, where XX is the new address.
  • Any writes after that should use the new device address XX.

Fault Indication

A_SEL_FAULT is an input pin during power up. This pin can be programmed after RESET to be an output by writing 1 to bit 0 of I2C register 0x05. In that mode, the A_SEL_FAULT pin has the definition shown in Table 1.

Any fault resulting in device shutdown is signaled by the A_SEL_FAULT pin going low (see Table 1). A latched version of this pin is available on D1 of register 0x02. This bit can be reset only by an I2C write.

Table 1. A_SEL_FAULT Output States

A_SEL_FAULT DESCRIPTION
0 Overcurrent (OC) or undervoltage (UVP) error or overtemperature error (OTE) or overvoltage error
1 No faults (normal operation)

Device Protection Systems

Overcurrent (OC) Protection With Current Limiting

The device has independent, fast-reacting current detectors on all high-side and low-side power-stage FETs. The detector outputs are closely monitored by two protection systems. The first protection system controls the power stage to prevent the output current further increasing, that is, the protection system performs a cycle-by-cycle current-limiting function, rather than prematurely shutting down during combinations of high-level music transients and extreme speaker load-impedance drops. If the high-current condition situation persists, that is, the power stage is being overloaded, a second protection system triggers a latching shutdown, resulting in the power stage being set in the high-impedance (Hi-Z) state. The device returns to normal operation once the fault condition (that is, a short circuit on the output) is removed. Current-limiting and overcurrent protection are not independent for half-bridges. That is, if the bridge-tied load between half-bridges A and B causes an overcurrent fault, half-bridges A, B, C, and D are shut down.

Overtemperature Protection

The TAS5727 has an overtemperature-protection system. If the device junction temperature exceeds 150°C (nominal), the device is put into thermal shutdown, resulting in all half-bridge outputs being set in the high-impedance (Hi-Z) state and A_SEL_FAULT being asserted low. The TAS5727 recovers automatically once the temperature drops approximately 30°C.

Undervoltage Protection (UVP) and Power-On Reset (POR)

The UVP and POR circuits of the TAS5727 fully protect the device in any power-up, power-down, and brownout situation. While powering up, the POR circuit resets the overload circuit (OLP) and ensures that all circuits are fully operational when the PVDD and AVDD supply voltages reach 7.6 V and 2.7 V, respectively. Although PVDD and AVDD are independently monitored, a supply-voltage drop below the UVP threshold on AVDD or either PVDD pin results in all half-bridge outputs immediately being set in the high-impedance (Hi-Z) state and A_SEL_FAULT being asserted low.

Clock, Auto Detection, and PLL

The TAS5727 is an I2S slave device. It accepts MCLK, SCLK, and LRCLK. The digital audio processor (DAP) supports all the sample rates and MCLK rates that are defined in the Clock Control Register (0x00).

The TAS5727 checks to verify that SCLK is a specific value of 32 fS, 48 fS, or 64 fS. The DAP only supports a
1 × fS LRCLK. The timing relationship of these clocks to SDIN is shown in subsequent sections. The clock section uses MCLK or the internal oscillator clock (when MCLK is unstable, out of range, or absent) to produce the internal clock (DCLK) running at 512 times the PWM switching frequency.

The DAP can autodetect and set the internal clock control logic to the appropriate settings for all supported clock rates as defined in the clock-control register.

The TAS5727 has robust clock error handling that uses the built-in trimmed oscillator clock to quickly detect changes and errors. Once the system detects a clock change or error, it mutes the audio (through a single-step mute) and then forces PLL to limp using the internal oscillator as a reference clock. Once the clocks are stable, the system autodetects the new rate and reverts to normal operation. During this process, the default volume is restored in a single step (also called hard unmute). The ramp process can be programmed to ramp back slowly (also called soft unmute) as defined in volume register (0x0E).

PWM Section

The TAS5727 DAP device uses noise-shaping and customized nonlinear correction algorithms to achieve high power efficiency and high-performance digital audio reproduction. The DAP uses a fourth-order noise shaper to increase dynamic range and SNR in the audio band. The PWM section accepts 24-bit PCM data from the DAP and outputs two BTL PWM audio output channels.

The PWM section has individual-channel DC-blocking filters that can be enabled and disabled. The filter cutoff frequency is less than 1 Hz. Individual-channel de-emphasis filters for 44.1 kHz and 48 kHz are included and can be enabled and disabled.

Finally, the PWM section has an adjustable maximum modulation limit of 93.8% to 99.2%.

For a detailed description of using audio processing features like DRC and EQ, see the User's Guide (SLOU299) and the TAS57xx GDE.

SSTIMER Functionality

The SSTIMER pin uses a capacitor connected between this pin and ground to control the output duty cycle when exiting all-channel shutdown. The capacitor on the SSTIMER pin is slowly charged through an internal current source, and the charge time determines the rate at which the output transitions from a near-zero duty cycle to the desired duty cycle. This allows for a smooth transition that minimizes audible pops and clicks. When the part is shut down, the drivers are placed in the high-impedance state and transition slowly down through a 3-kΩ resistor, similarly minimizing pops and clicks. The shutdown transition time is independent of the SSTIMER pin capacitance. Larger capacitors increase the start-up time, while capacitors smaller than 2.2 nF decrease the start-up time. The SSTIMER pin should be left floating for BD modulation.

Single-Filter PBTL Mode

The TAS5727 supports parallel BTL (PBTL) mode with OUT_A/OUT_B (and OUT_C/OUT_D) connected before the LC filter. To put the part in PBTL configuration, drive PBTL (pin 8) HIGH. This synchronizes the turnoff of half-bridges A and B (and similarly C/D) if an overcurrent condition is detected in either half-bridge. There is a pulldown resistor on the PBTL pin that configures the part in BTL mode if the pin is left floating.

PWM output multiplexers should be updated to set the device in PBTL mode. Output Mux Register (0x25) should be written with a value of 0x0110 3245. Also, the PWM shutdown register (0x19) should be written with a value of 0x3A.

I2C Serial Control Interface

The TAS5727 DAP has a bidirectional I2C interface that is compatible with the Inter IC (I2C) bus protocol and supports both 100-kHz and 400-kHz data transfer rates for single- and multiple-byte write and read operations. This is a slave-only device that does not support a multimaster bus environment or wait-state insertion. The control interface is used to program the registers of the device and to read device status.

The DAP supports the standard-mode I2C bus operation (100 kHz maximum) and the fast I2C bus operation (400 kHz maximum). The DAP performs all I2C operations without I2C wait cycles.

General I2C Operation

The I2C bus employs two signals, SDA (data) and SCL (clock), to communicate between integrated circuits in a system. Data is transferred on the bus serially, one bit at a time. The address and data can be transferred in byte (8-bit) format, with the most-significant bit (MSB) transferred first. In addition, each byte transferred on the bus is acknowledged by the receiving device with an acknowledge bit. Each transfer operation begins with the master device driving a start condition on the bus and ends with the master device driving a stop condition on the bus. The bus uses transitions on the data pin (SDA) while the clock is high to indicate start and stop conditions. A high-to-low transition on SDA indicates a start and a low-to-high transition indicates a stop. Normal data-bit transitions must occur within the low time of the clock period. These conditions are shown in Figure 18. The master generates the 7-bit slave address and the read/write (R/W) bit to open communication with another device and then waits for an acknowledge condition. The TAS5727 holds SDA low during the acknowledge clock period to indicate an acknowledgment. When this occurs, the master transmits the next byte of the sequence. Each device is addressed by a unique 7-bit slave address plus R/W bit (1 byte). All compatible devices share the same signals through a bidirectional bus using a wired-AND connection. An external pullup resistor must be used for the SDA and SCL signals to set the high level for the bus.

TAS5727 t0035-01.gif Figure 18. Typical I2C Sequence

There is no limit on the number of bytes that can be transmitted between start and stop conditions. When the last word transfers, the master generates a stop condition to release the bus. A generic data transfer sequence is shown in Figure 18.

The 7-bit address for TAS5715 is 0101 010 (0x54) or 0101 011 (0x56) defined by A_SEL (external pulldown for 0x54 and pullup for 0x56).

Single- and Multiple-Byte Transfers

The serial control interface supports both single-byte and multiple-byte read/write operations for subaddresses 0x00 to 0x1F. However, for the subaddresses 0x20 to 0xFF, the serial control interface supports only multiple-byte read/write operations (in multiples of 4 bytes).

During multiple-byte read operations, the DAP responds with data, a byte at a time, starting at the subaddress assigned, as long as the master device continues to respond with acknowledges. If a particular subaddress does not contain 32 bits, the unused bits are read as logic 0.

During multiple-byte write operations, the DAP compares the number of bytes transmitted to the number of bytes that are required for each specific subaddress. For example, if a write command is received for a biquad subaddress, the DAP must receive five 32-bit words. If fewer than five 32-bit data words have been received when a stop command (or another start command) is received, the received data is discarded.

Supplying a subaddress for each subaddress transaction is referred to as random I2C addressing. The TAS5727 also supports sequential I2C addressing. For write transactions, if a subaddress is issued followed by data for that subaddress and the 15 subaddresses that follow, a sequential I2C write transaction has taken place, and the data for all 16 subaddresses is successfully received by the TAS5727. For I2C sequential-write transactions, the subaddress then serves as the start address, and the amount of data subsequently transmitted, before a stop or start is transmitted, determines how many subaddresses are written. As was true for random addressing, sequential addressing requires that a complete set of data be transmitted. If only a partial set of data is written to the last subaddress, the data for the last subaddress is discarded. However, all other data written is accepted; only the incomplete data is discarded.

Single-Byte Write

As shown in Figure 19, a single-byte data-write transfer begins with the master device transmitting a start condition followed by the I2C device address and the read/write bit. The read/write bit determines the direction of the data transfer. For a data-write transfer, the read/write bit is a 0. After receiving the correct I2C device address and the read/write bit, the DAP responds with an acknowledge bit. Next, the master transmits the address byte or bytes corresponding to the TAS5727 internal memory address being accessed. After receiving the address byte, the TAS5727 again responds with an acknowledge bit. Next, the master device transmits the data byte to be written to the memory address being accessed. After receiving the data byte, the TAS5727 again responds with an acknowledge bit. Finally, the master device transmits a stop condition to complete the single-byte data-write transfer.

TAS5727 t0036-01.gif Figure 19. Single-Byte Write Transfer

Multiple-Byte Write

A multiple-byte data-write transfer is identical to a single-byte data-write transfer except that multiple data bytes are transmitted by the master device to the DAP as shown in Figure 20. After receiving each data byte, the TAS5727 responds with an acknowledge bit.

TAS5727 t0036-02.gif Figure 20. Multiple-Byte Write Transfer

Single-Byte Read

As shown in Figure 21, a single-byte data-read transfer begins with the master device transmitting a start condition, followed by the I2C device address and the read/write bit. For the data read transfer, both a write followed by a read are actually done. Initially, a write is done to transfer the address byte or bytes of the internal memory address to be read. As a result, the read/write bit becomes a 0. After receiving the TAS5727 address and the read/write bit, TAS5727 responds with an acknowledge bit. In addition, after sending the internal memory address byte or bytes, the master device transmits another start condition followed by the TAS5727 address and the read/write bit again. This time, the read/write bit becomes a 1, indicating a read transfer. After receiving the address and the read/write bit, the TAS5727 again responds with an acknowledge bit. Next, the TAS5727 transmits the data byte from the memory address being read. After receiving the data byte, the master device transmits a not-acknowledge followed by a stop condition to complete the single-byte data-read transfer.

TAS5727 t0036-03.gif Figure 21. Single-Byte Read Transfer

Multiple-Byte Read

A multiple-byte data-read transfer is identical to a single-byte data-read transfer except that multiple data bytes are transmitted by the TAS5727 to the master device as shown in Figure 22. Except for the last data byte, the master device responds with an acknowledge bit after receiving each data byte.

TAS5727 t0036-04.gif Figure 22. Multiple-Byte Read Transfer

Audio Serial Interface

Serial data is input on SDIN. The PWM outputs are derived from SDIN. The TAS5727 DAP accepts serial data in 16-, 20-, or 24-bit left-justified, right-justified, and I2S serial data formats.

Serial Interface Control and Timing

I2S Timing

I2S timing uses LRCLK to define when the data being transmitted is for the left channel and when it is for the right channel. LRCLK is low for the left channel and high for the right channel. A bit clock running at 32, 48, or 64 × fS is used to clock in the data. There is a delay of one bit clock from the time the LRCLK signal changes state to the first bit of data on the data lines. The data is written MSB-first and is valid on the rising edge of bit clock. The DAP masks unused trailing data bit positions.

TAS5727 t0034-01.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 23. I2S 64-fS Format
TAS5727 t0092-01.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 24. I2S 48-fS Format
TAS5727 t0266-01_los549.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 25. I2S 32-fS Format

Left-Justified

Left-justified (LJ) timing uses LRCLK to define when the data being transmitted is for the left channel and when it is for the right channel. LRCLK is high for the left channel and low for the right channel. A bit clock running at 32, 48, or 64 × fS is used to clock in the data. The first bit of data appears on the data lines at the same time LRCLK toggles. The data is written MSB-first and is valid on the rising edge of the bit clock. The DAP masks unused trailing data bit positions.

TAS5727 t0034-02.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 26. Left-Justified 64-fS Format
TAS5727 t0092-02.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 27. Left-Justified 48-fS Format
TAS5727 t0266-02_los549.gif

NOTE:

All data presented in 2s-complement form with MSB first.
Figure 28. Left-Justified 32-fS Format

Right-Justified

Right-justified (RJ) timing uses LRCLK to define when the data being transmitted is for the left channel and when it is for the right channel. LRCLK is high for the left channel and low for the right channel. A bit clock running at 32, 48, or 64 × fS is used to clock in the data. The first bit of data appears on the data 8 bit-clock periods (for 24-bit data) after LRCLK toggles. In RJ mode, the LSB of data is always clocked by the last bit clock before LRCLK transitions. The data is written MSB-first and is valid on the rising edge of bit clock. The DAP masks unused leading data bit positions.

TAS5727 t0034-03.gif Figure 29. Right-Justified 64-fS Format
TAS5727 t0092-03.gif Figure 30. Right-Justified 48-fS Format
TAS5727 t0266-03_los549.gif Figure 31. Right-Justified 32-fS Format

Dynamic Range Control (DRC)

The DRC scheme has two DRC blocks. There is one ganged DRC for the high-band left and right channels and one DRC for the low-band left and right channels.

The DRC input/output diagram is shown in Figure 32.

TAS5727 M0091-04_LOS670.gif
Professional-quality dynamic range compression automatically adjusts volume to flatten volume level.
 • Each DRC has adjustable threshold levels.
 • Programmable attack and decay time constants
 • Transparent compression: compressors can attack fast enough to avoid apparent clipping before engaging,
    and decay times can be set slow enough to avoid pumping.
Figure 32. Dynamic Range Control
TAS5727 B0265-04_LOS637.gif
T = 9.23 format, all other DRC coefficients are 3.23 format
Figure 33. DRC Structure

PWM Level Meter

The structure in Figure 34 shows the PWM level meter that can be used to study the power profile.

TAS5727 B0396-01_LOS670.gif Figure 34. PWM Level Meter Structure

Device Functional Modes

Stereo BTL Mode

The classic stereo mode of operation uses the TAS5727 device to amplify two independent signals, which represent the left and right portions of a stereo signal. These amplified left and right audio signals are presented on differential output pairs shown as OUT_A and OUT_B for a channel and OUT_C and OUT_D for the other one. The routing of the audio data which is presented on the OUT_x outputs can be changed according to the PWM Output Mux Register (0x25). By default, the TAS5727 device is configured to output channel 1 to the OUT_A and OUT_B outputs, and channel 2 to the OUT_C and OUT_D outputs. Stereo Mode operation outputs are shown in Figure 35.

TAS5727 Stereo_BTL_App.gif Figure 35. Stereo BTL Mode

Mono PBTL Mode

When this mode of operation is used, the two stereo outputs of the device are placed in parallel one with another to increase the power sourcing capabilities of the device. The TAS5727 supports parallel BTL (PBTL) mode with OUT_A/OUT_B (and OUT_C/OUT_D) connected before the LC filter. The merging of the two output channels in this device can be done before the inductor portion of the output filter. This is called Single-Filter PBTL, and this mono operation is shown in Figure 36. More information about this can be found in Single-Filter PBTL Mode.

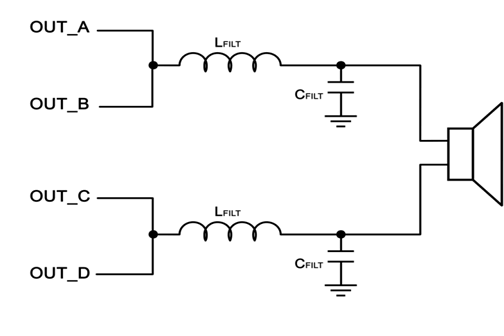

TAS5727 Post_Filter_PBTL.gif Figure 36. Mono PBTL Mode

Programming

26-Bit 3.23 Number Format

All mixer gain coefficients are 26-bit coefficients using a 3.23 number format. Numbers formatted as 3.23 numbers means that there are 3 bits to the left of the binary point and 23 bits to the right of the binary point (see Figure 37).

TAS5727 m0125-01_los599.gif Figure 37. 3.23 Format

The decimal value of a 3.23 format number can be found by following the weighting shown in Figure 37. If the most significant bit is logic 0, the number is a positive number, and the weighting shown yields the correct number. If the most significant bit is a logic 1, then the number is a negative number. In this case every bit must be inverted, a 1 added to the result, and then the weighting shown in Figure 38 applied to obtain the magnitude of the negative number.

TAS5727 m0126-01_los599.gif Figure 38. Conversion Weighting Factors—3.23 Format to Floating Point

Gain coefficients, entered through the I2C bus, must be entered as 32-bit binary numbers. Figure 39 shows the format of the 32 bit number (4 byte or 8 digit hexadecimal number).

TAS5727 m0127-01_los599.gif Figure 39. Alignment of 3.23 Coefficient in 32-Bit I2C Word

Table 2. Sample Calculation for 3.23 Format

db LINEAR DECIMAL HEX (3.23 FORMAT)
0 1 8,388,608 80 0000
5 1.77 14,917,288 00E3 9EA8
–5 0.56 4,717,260 0047 FACC
X L = 10(X/20) D = 8,388,608 × L H = dec2hex (D, 8)

Table 3. Sample Calculation for 9.17 Format

db LINEAR DECIMAL HEX (9.17 FORMAT)
0 1 131,072 2 0000
5 1.77 231,997 3 8A3D
–5 0.56 73,400 1 1EB8
X L = 10(X/20) D = 131,072 × L H = dec2hex (D, 8)

Register Maps

Table 4. Serial Control Interface Register Summary

SUBADDRESS REGISTER NAME NO. OF BYTES CONTENTS INITIALIZATION
VALUE
A u indicates unused bits.
0x00 Clock control register 1 Description shown in subsequent section 0x6C
0x01 Device ID register 1 Description shown in subsequent section 0x43
0x02 Error status register 1 Description shown in subsequent section 0x00
0x03 System control register 1 1 Description shown in subsequent section 0x80
0x04 Serial data interface register 1 Description shown in subsequent section 0x05
0x05 System control register 2 1 Description shown in subsequent section 0x40
0x06 Soft mute register 1 Description shown in subsequent section 0x00
0x07 Master volume 2 Description shown in subsequent section 0xFF (mute)
0x08 Channel 1 vol 2 Description shown in subsequent section 0x30 (0 dB)
0x09 Channel 2 vol 2 Description shown in subsequent section 0x30 (0 dB)
0x0A Channel 3 vol 2 Description shown in subsequent section 0x30 (0 dB)
0x0B–0x0D 1 Reserved(1)
0x0E Volume configuration register 1 Description shown in subsequent section 0x90
0x0F 1 Reserved(1)
0x10 Modulation limit register 1 Description shown in subsequent section 0x02
0x11 IC delay channel 1 1 Description shown in subsequent section 0xAC
0x12 IC delay channel 2 1 Description shown in subsequent section 0x54
0x13 IC delay channel 3 1 Description shown in subsequent section 0xAC
0x14 IC delay channel 4 1 Description shown in subsequent section 0x54
0x15–0x19 1 Reserved(1)
0x1A Start/stop period register 1 0x0F
0x1B Oscillator trim register 1 0x82
0x1C BKND_ERR register 1 0x02
0x1D–0x1F 1 Reserved(1)
0x20 Input MUX register 4 Description shown in subsequent section 0x0001 7772
0x21 Ch 4 source select register 4 Description shown in subsequent section 0x0000 4303
0x22–0x24 4 Reserved(1)
0x25 PWM MUX register 4 Description shown in subsequent section 0x0102 1345
0x26 ch1_bq[0] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x27 ch1_bq[1] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x28 ch1_bq[2] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x29 ch1_bq[3] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2A ch1_bq[4] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2B ch1_bq[5] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2C ch1_bq[6] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2D ch1_bq[7] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2E ch1_bq[8] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x2F ch1_bq[9] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x30 ch2_bq[0] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x31 ch2_bq[1] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x32 ch2_bq[2] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x33 ch2_bq[3] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x34 ch2_bq[4] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x35 ch2_bq[5] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x36 ch2_bq[6] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x37 ch2_bq[7] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x38 ch2_bq[8] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x39 ch2_bq[9] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x3A 4 Reserved(1)
0x3B DRC1 softening filter alpha 8 u[31:26], ae[25:0] 0x0008 0000
DRC1 softening filter omega u[31:26], oe[25:0] 0x0078 0000
0x3C DRC1 attack rate 8 0x0000 0100
DRC1 release rate 0xFFFF FF00
0x3D 8 Reserved(1)
0x3E DRC2 softening filter alpha 8 u[31:26], ae[25:0] 0x0008 0000
DRC2 softening filter omega u[31:26], oe[25:0] 0xFFF8 0000
0x3F DRC2 attack rate 8 u[31:26], at[25:0] 0x0008 0000
DRC2 release rate u[31:26], rt[25:0] 0xFFF8 0000
0x40 DRC1 attack threshold 4 T1[31:0] (9.23 format) 0x0800 0000
0x41–0x42 4 Reserved(1)
0x43 DRC2 attack threshold 4 T2[31:0] (9.23 format) 0x0074 0000
0x44–0x45 4 Reserved(1)
0x46 DRC control 4 Description shown in subsequent section 0x0000 0000
0x47–0x4E 4 Reserved(1)
0x4F PWM switching rate control 4 u[31:4], src[3:0] 0x0000 0006
0x50 Bank switch control 4 Description shown in subsequent section 0x0F70 8000
0x51 Ch 1 output mixer 8 Ch 1 output mix1[1] 0x0080 0000
Ch 1 output mix1[0] 0x0000 0000
0x52 Ch 2 output mixer 8 Ch 2 output mix2[1] 0x0080 0000 
Ch 2 output mix2[0] 0x0000 0000 
0x53 16 Reserved(1)
0x54 16 Reserved(1)
0x56 Output post-scale 4 u[31:26], post[25:0] 0x0080 0000
0x57 Output pre-scale 4 u[31:26], pre[25:0] (9.17 format) 0x0002 0000
0x58 ch1_bq[10] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x59 ch1_bq[11] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5A ch4_bq[0] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5B ch4_bq[1] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5C ch2_bq[10] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5D ch2_bq[11] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5E ch3_bq[0] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x5F ch3_bq[1] 20 u[31:26], b0[25:0] 0x0080 0000
u[31:26], b1[25:0] 0x0000 0000
u[31:26], b2[25:0] 0x0000 0000
u[31:26], a1[25:0] 0x0000 0000
u[31:26], a2[25:0] 0x0000 0000
0x60–0x61 4 Reserved(1)
0x62 IDF post scale 4 0x0000 0080
0x63–0x6A Reserved(1)
0x6B Left channel PWM level meter 4 Data[31:0] 0x0000 0000
0x6C Right channel PWM level meter 4 Data[31:0] 0x0000 0000
0x6D–0x6F Reserved(1)
0x70 ch1 inline mixer 4 u[31:26], in_mix1[25:0] 0x0080 0000
0x71 inline_DRC_en_mixer_ch1 4 u[31:26], in_mixdrc_1[25:0] 0x0000 0000
0x72 ch1 right_channel mixer 4 u[31:26], right_mix1[25:0] 0x0000 0000
0x73 ch1 left_channel_mixer 4 u[31:26], left_mix_1[25:0] 0x0080 0000
0x74 ch2 inline mixer 4 u[31:26], in_mix2[25:0] 0x0080 0000
0x75 inline_DRC_en_mixer_ch2 4 u[31:26], in_mixdrc_2[25:0] 0x0000 0000
0x76 ch2 left_chanel mixer 4 u[31:26], left_mix1[25:0] 0x0000 0000
0x77 ch2 right_channel_mixer 4 u[31:26], right_mix_1[25:0] 0x0080 0000
0x78–0xF7 Reserved(1)
0xF8 Update dev address key 4 Dev Id Update Key[31:0] (Key = 0xF9A5A5A5) 0x0000 0000
0xF9 Update dev address reg 4 u[31:8],New Dev Id[7:0] (New Dev Id = 0x38 for TAS5727) 0x0000 0036
0xFA–0xFF 4 Reserved(1)
Reserved registers should not be accessed.

All DAP coefficients are 3.23 format unless specified otherwise.

Registers 0x3B through 0x46 should be altered only during the initialization phase.

Clock Control Register (0x00)

The clocks and data rates are automatically determined by the TAS5727. The clock control register contains the autodetected clock status. Bits D7–D5 reflect the sample rate. Bits D4–D2 reflect the MCLK frequency.

Table 5. Clock Control Register (0x00)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 fS = 32-kHz sample rate
0 0 1 Reserved
0 1 0 Reserved
0 1 1 fS = 44.1/48-kHz sample rate(1)
1 0 0 fS = 16-kHz sample rate
1 0 1 fS = 22.05/24-kHz sample rate
1 1 0 fS = 8-kHz sample rate
1 1 1 fS = 11.025/12-kHz sample rate
0 0 0 MCLK frequency = 64 × fS(2)
0 0 1 MCLK frequency = 128 × fS(2)
0 1 0 MCLK frequency = 192 × fS(3)
0 1 1 MCLK frequency = 256 × fS (1)(4)
1 0 0 MCLK frequency = 384 × fS
1 0 1 MCLK frequency = 512 × fS
1 1 0 Reserved
1 1 1 Reserved
0 Reserved(1)
0 Reserved(1)
Default values are in bold.
Only available for 44.1-kHz and 48-kHz rates
Rate only available for 32/44.1/48-KHz sample rates
Not available at 8 kHz

Device Id Register (0x01)

The device ID register contains the ID code for the firmware revision.

Table 6. General Status Register (0x01)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 0 0 0 0 0 Identification code(1)
Default values are in bold.

Error Status Register (0x02)

The error bits are sticky and are not cleared by the hardware. This means that the software must clear the register (write zeroes) and then read them to determine if they are persistent errors.

Error definitions:

  • MCLK error: MCLK frequency is changing. The number of MCLKs per LRCLK is changing.
  • SCLK error: The number of SCLKs per LRCLK is changing.
  • LRCLK error: LRCLK frequency is changing.
  • Frame slip: LRCLK phase is drifting with respect to internal frame sync.

Table 7. Error Status Register (0x02)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
1 - MCLK error
1 PLL autolock error
1 SCLK error
1 LRCLK error
1 Frame slip
1 Clip indicator
1 Overcurrent, overtemperature, overvoltage, or undervoltage error
0 0 0 0 0 0 0 0 Reserved
0 0 0 0 0 0 0 0 No errors (1)
Default values are in bold.

System Control Register 1 (0x03)

System control register 1 has several functions:

Bit D7: If 0, the DC-blocking filter for each channel is disabled.
If 1, the DC-blocking filter (–3 dB cutoff <1 Hz) for each channel is enabled.
Bit D5: If 0, use soft unmute on recovery from a clock error. This is a slow recovery. Unmute takes the same time as the volume ramp defined in register 0x0E.
If 1, use hard unmute on recovery from clock error. This is a fast recovery, a single-step volume ramp.
Bits D1–D0: Select de-emphasis

Table 8. System Control Register 1 (0x03)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 PWM high-pass (dc blocking) disabled
1 PWM high-pass (dc blocking) enabled (1)
0 Reserved(1)
0 Soft unmute on recovery from clock error(1)
1 Hard unmute on recovery from clock error
1 Reserved(1)
0 Reserved(1)
0 Reserved(1)
0 0 No de-emphasis(1)
0 1 De-emphasis for fS = 32 kHz
1 0 De-emphasis for fS = 44.1 kHz
1 1 De-emphasis for fS = 48 kHz
Default values are in bold.

Serial Data Interface Register (0x04)

As shown in Table 9, the TAS5727 supports nine serial data modes. The default is 24-bit, I2S mode.

Table 9. Serial Data Interface Control Register (0x04) Format

RECEIVE SERIAL DATA
INTERFACE FORMAT
WORD LENGTH D7–D4 D3 D2 D1 D0
Right-justified 16 0000 0 0 0 0
Right-justified 20 0000 0 0 0 1
Right-justified 24 0000 0 0 1 0
I2S 16 000 0 0 1 1
I2S 20 0000 0 1 0 0
I2S(1) 24 0000 0 1 0 1
Left-justified 16 0000 0 1 1 0
Left-justified 20 0000 0 1 1 1
Left-justified 24 0000 1 0 0 0
Reserved 0000 1 0 0 1
Reserved 0000 1 0 1 0
Reserved 0000 1 0 1 1
Reserved 0000 1 1 0 0
Reserved 0000 1 1 0 1
Reserved 0000 1 1 1 0
Reserved 0000 1 1 1 1
Default values are in bold.

System Control Register 2 (0x05)

When bit D6 is set low, the system exits all-channel shutdown and starts playing audio; otherwise, the outputs are shut down (hard mute).

Table 10. System Control Register 2 (0x05)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 Mid-Z ramp disabled(1)
1 Mid-Z ramp enabled
0 Exit all-channel shutdown (normal operation)
1 Enter all-channel shutdown (hard mute)(1)
0 0 Reserved(1)
0 Ternary modulation disabled(1)
1 Ternary modulation enabled
0 Reserved(1)
0 A_SEL_FAULT configured as input
1 A_SEL_FAULT configured configured as output to function as A_SEL_FAULT pin.
0 Reserved(1)
Default values are in bold.

Ternary modulation is disabled by default. To enable ternary modulation, the following writes are required before bringing the system out of shutdown:

  1. Set bit D3 of register 0x05 to 1.
  2. Write the following ICD settings:
    1. 0x11= 80
    2. 0x12= 7C
    3. 0x13= 80
    4. 0x24 =7C
  3. Set the input mux register as follows:
    1. 0x20 = 00 89 77 72

Soft Mute Register (0x06)

Writing a 1 to any of the following bits sets the output of the respective channel to 50% duty cycle (soft mute).

Table 11. Soft Mute Register (0x06)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 0 0 Reserved(1)
1 Soft mute channel 3
0 Soft unmute channel 3(1)
1 Soft mute channel 2
0 Soft unmute channel 2(1)
1 Soft mute channel 1
0 Soft unmute channel 1(1)
Default values are in bold.

Volume Registers (0x07, 0x08, 0x09)

Step size is 0.125 dB and volume registers are 2 bytes.

Master volume – 0x07 (default is mute)
Channel-1 volume – 0x08 (default is 0 dB)
Channel-2 volume – 0x09 (default is 0 dB)

Table 12. Master Volume Table

VALUE LEVEL VALUE LEVEL VALUE LEVEL VALUE LEVEL VALUE LEVEL VALUE LEVEL
0x0000 24.000 0x0027 19.250 0x004E 14.250 0x0075 9.375 0x009C 4.500 0x00C3 –0.375
0x0001 23.875 0x0028 19.000 0x004F 14.125 0x0076 9.250 0x009D 4.375 0x00C4 –0.500
0x0002 23.750 0x0029 18.875 0x0050 14.000 0x0077 9.125 0x009E 4.250 0x00C5 –0.625
0x0003 23.625 0x002A 18.750 0x0051 13.875 0x0078 9.000 0x009F 4.125 0x00C6 –0.750
0x0004 23.500 0x002B 18.625 0x0052 13.750 0x0079 8.875 0x00A0 4.000 0x00C7 –0.875
0x0005 23.375 0x002C 18.500 0x0053 13.625 0x007A 8.750 0x00A1 3.875 0x00C8 –1.000
0x0006 23.250 0x002D 18.375 0x0054 13.500 0x007B 8.625 0x00A2 3.750 0x00C9 –1.125
0x0007 23.125 0x002E 18.250 0x0055 13.375 0x007C 8.500 0x00A3 3.625 0x00CA –1.250
0x0008 23.000 0x002F 18.125 0x0056 13.250 0x007D 8.375 0x00A4 3.500 0x00CB –1.375
0x0009 22.875 0x0030 18.000 0x0057 13.125 0x007E 8.250 0x00A5 3.375 0x00CC –1.500
0x000A 22.750 0x0031 17.875 0x0058 13.000 0x007F 8.125 0x00A6 3.250 0x00CD –1.625
0x000B 22.625 0x0032 17.750 0x0059 12.875 0x0080 8.000 0x00A7 3.125 0x00CE –1.750
0x000C 22.500 0x0033 17.625 0x005A 12.750 0x0081 7.875 0x00A8 3.000 0x00CF –1.875
0x000D 22.375 0x0034 17.500 0x005B 12.625 0x0082 7.750 0x00A9 2.875 0x00D0 –2.000
0x000E 22.250 0x0035 17.375 0x005C 12.500 0x0083 7.625 0x00AA 2.750 0x00D1 –2.125
0x000F 22.125 0x0036 17.250 0x005D 12.375 0x0084 7.500 0x00AB 2.625 0x00D2 –2.250
0x0010 22.000 0x0037 17.125 0x005E 12.250 0x0085 7.375 0x00AC 2.500 0x00D3 –2.375
0x0011 21.875 0x0038 17.000 0x005F 12.125 0x0086 7.250 0x00AD 2.375 0x00D4 –2.500
0x0012 21.750 0x0039 16.875 0x0060 12.000 0x0087 7.125 0x00AE 2.250 0x00D5 –2.625
0x0013 21.625 0x003A 16.750 0x0061 11.875 0x0088 7.000 0x00AF 2.125 0x00D6 –2.750
0x0014 21.500 0x003B 16.625 0x0062 11.750 0x0089 6.875 0x00B0 2.000 0x00D7 –2.875
0x0015 21.375 0x003C 16.500 0x0063 11.625 0x008A 6.750 0x00B1 1.875 0x00D8 –3.000
0x0016 21.250 0x003D 16.375 0x0064 11.500 0x008B 6.625 0x00B2 1.750 0x00D9 –3.125
0x0017 21.125 0x003E 16.250 0x0065 11.375 0x008C 6.500 0x00B3 1.625 0x00DA –3.250
0x0018 21.000 0x003F 16.125 0x0066 11.250 0x008D 6.375 0x00B4 1.500 0x00DB –3.375
0x0019 20.875 0x0040 16.000 0x0067 11.125 0x008E 6.250 0x00B5 1.375 0x00DC –3.500
0x001A 20.750 0x0041 15.875 0x0068 11.000 0x008F 6.125 0x00B6 1.250 0x00DD –3.625
0x001B 20.625 0x0042 15.750 0x0069 10.875 0x0090 6.000 0x00B7 1.125 0x00DE –3.750
0x001C 20.500 0x0043 15.625 0x006A 10.750 0x0091 5.875 0x00B8 1.000 0x00DF –3.875
0x001D 20.375 0x0044 15.500 0x006B 10.625 0x0092 5.750 0x00B9 0.875 0x00E0 –4.000
0x001E 20.250 0x0045 15.375 0x006C 10.500 0x0093 5.625 0x00BA 0.750 0x00E1 –4.125
0x001F 20.125 0x0046 15.250 0x006D 10.375 0x0094 5.500 0x00BB 0.625 0x00E2 –4.250
0x0020 20.000 0x0047 15.125 0x006E 10.250 0x0095 5.375 0x00BC 0.500 0x00E3 –4.375
0x0021 19.875 0x0048 15.000 0x006F 10.125 0x0096 5.250 0x00BD 0.375 0x00E4 –4.500
0x0022 19.750 0x0049 14.875 0x0070 10.000 0x0097 5.125 0x00BE 0.250 0x00E5 –4.625
0x0023 19.625 0x004A 14.750 0x0071 9.875 0x0098 5.000 0x00BF 0.125 0x00E6 –4.750
0x0024 19.500 0x004B 14.625 0x0072 9.750 0x0099 4.875 0x00C0 0.000 0x00E7 –4.875
0x0025 19.375 0x004C 14.500 0x0073 9.625 0x009A 4.750 0x00C1 –0.125 0x00E8 –5.000
0x0026 19.125 0x004D 14.375 0x0074 9.500 0x009B 4.625 0x00C2 –0.250 0x00E9 –5.125
0x00EA –5.250 0x0119 –11.125 0x0148 –17.000 0x0177 –22.875 0x01A6 –28.750 0x01D5 –34.625
0x00EB –5.375 0x011A –11.250 0x0149 –17.125 0x0178 –23.000 0x01A7 –28.875 0x01D6 –34.750
0x00EC –5.500 0x011B –11.375 0x014A –17.250 0x0179 –23.125 0x01A8 –29.000 0x01D7 –34.875
0x00ED –5.625 0x011C –11.500 0x014B –17.375 0x017A –23.250 0x01A9 –29.125 0x01D8 –35.000
0x00EE –5.750 0x011D –11.625 0x014C –17.500 0x017B –23.375 0x01AA –29.250 0x01D9 –35.125
0x00EF –5.875 0x011E –11.750 0x014D –17.625 0x017C –23.500 0x01AB –29.375 0x01DA –35.250
0x00F0 –6.000 0x011F –11.875 0x014E –17.750 0x017D –23.625 0x01AC –29.500 0x01DB –35.375
0x00F1 –6.125 0x0120 –12.000 0x014F –17.875 0x017E –23.750 0x01AD –29.625 0x01DC –35.500
0x00F2 –6.250 0x0121 –12.125 0x0150 –18.000 0x017F –23.875 0x01AE –29.750 0x01DD –35.625
0x00F3 –6.375 0x0122 –12.250 0x0151 –18.125 0x0180 –24.000 0x01AF –29.875 0x01DE –35.750
0x00F4 –6.500 0x0123 –12.375 0x0152 –18.250 0x0181 –24.125 0x01B0 –30.000 0x01DF –35.875
0x00F5 –6.625 0x0124 –12.500 0x0153 –18.375 0x0182 –24.250 0x01B1 –30.125 0x01E0 –36.000
0x00F6 –6.750 0x0125 –12.625 0x0154 –18.500 0x0183 –24.375 0x01B2 –30.250 0x01E1 –36.125
0x00F7 –6.875 0x0126 –12.750 0x0155 –18.625 0x0184 –24.500 0x01B3 –30.375 0x01E2 –36.250
0x00F8 –7.000 0x0127 –12.875 0x0156 –18.750 0x0185 –24.625 0x01B4 –30.500 0x01E3 –36.375
0x00F9 –7.125 0x0128 –13.000 0x0157 –18.875 0x0186 –24.750 0x01B5 –30.625 0x01E4 –36.500
0x00FA –7.250 0x0129 –13.125 0x0158 –19.000 0x0187 –24.875 0x01B6 –30.750 0x01E5 –36.625
0x00FB –7.375 0x012A –13.250 0x0159 –19.125 0x0188 –25.000 0x01B7 –30.875 0x01E6 –36.750
0x00FC –7.500 0x012B –13.375 0x015A –19.250 0x0189 –25.125 0x01B8 –31.000 0x01E7 –36.875
0x00FD –7.625 0x012C –13.500 0x015B –19.375 0x018A –25.250 0x01B9 –31.125 0x01E8 –37.000
0x00FE –7.750 0x012D –13.625 0x015C –19.500 0x018B –25.375 0x01BA –31.250 0x01E9 –37.125
0x00FF –7.875 0x012E –13.750 0x015D –19.625 0x018C –25.500 0x01BB –31.375 0x01EA –37.250
0x0100 –8.000 0x012F –13.875 0x015E –19.750 0x018D –25.625 0x01BC –31.500 0x01EB –37.375
0x0101 –8.125 0x0130 –14.000 0x015F –20.875 0x018E –25.750 0x01BD –31.625 0x01EC –37.500
0x0102 –8.250 0x0131 –14.125 0x0160 –20.000 0x018F –25.875 0x01BE –31.750 0x01ED –37.625
0x0103 –8.375 0x0132 –14.250 0x0161 –20.125 0x0190 –26.000 0x01BF –31.875 0x01EE –37.750
0x0104 –8.500 0x0133 –14.375 0x0162 –20.250 0x0191 –26.125 0x01C0 –32.000 0x01EF –37.875
0x0105 –8.625 0x0134 –14.500 0x0163 –20.375 0x0192 –26.250 0x01C1 –32.125 0x01F0 –38.000
0x0106 –8.750 0x0135 –14.625 0x0164 –20.500 0x0193 –26.375 0x01C2 –32.250 0x01F1 –38.125
0x0107 –8.875 0x0136 –14.750 0x0165 –20.625 0x0194 –26.500 0x01C3 –32.375 0x01F2 –38.250
0x0108 –9.000 0x0137 –14.875 0x0166 –20.750 0x0195 –26.625 0x01C4 –32.500 0x01F3 –38.375
0x0109 –9.125 0x0138 –15.000 0x0167 –20.875 0x0196 –26.750 0x01C5 –32.625 0x01F4 –38.500
0x010A –9.250 0x0139 –15.125 0x0168 –21.000 0x0197 –26.875 0x01C6 –32.750 0x01F5 –38.625
0x010B –9.375 0x013A –15.250 0x0169 –21.125 0x0198 –27.000 0x01C7 –32.875 0x01F6 –38.750
0x010C –9.500 0x013B –15.375 0x016A –21.250 0x0199 –27.125 0x01C8 –33.000 0x01F7 –38.875
0x010D –9.625 0x013C –15.500 0x016B –21.375 0x019A –27.250 0x01C9 –33.125 0x01F8 –39.000
0x010E –9.750 0x013D –15.625 0x016C –21.500 0x019B –27.375 0x01CA –33.250 0x01F9 –39.125
0x010F –9.875 0x013E –15.750 0x016D –21.625 0x019C –27.500 0x01CB –33.375 0x01FA –39.250
0x0110 –10.000 0x013F –15.875 0x016E –21.750 0x019D –27.625 0x01CC –33.500 0x01FB –39.375
0x0111 –10.125 0x0140 –16.000 0x016F –21.875 0x019E –27.750 0x01CD –33.625 0x01FC –39.500
0x0112 –10.250 0x0141 –16.125 0x0170 –22.000 0x019F –27.875 0x01CE –33.750 0x01FD –39.625
0x0113 –10.375 0x0142 –16.250 0x0171 –22.125 0x01A0 –28.000 0x01CF –33.875 0x01FE –39.750
0x0114 –10.500 0x0143 –16.375 0x0172 –22.250 0x01A1 –28.125 0x01D0 –34.000 0x01FF –39.875
0x0115 –10.625 0x0144 –16.500 0x0173 –22.375 0x01A2 –28.250 0x01D1 –34.125 0x0200 –40.000
0x0116 –10.750 0x0145 –16.625 0x0174 –22.500 0x01A3 –28.375 0x01D2 –34.250 0x0201 –40.125
0x0117 –10.875 0x0146 –16.750 0x0175 –22.625 0x01A4 –28.500 0x01D3 –34.375 0x0202 –40.250
0x0118 –11.000 0x0147 –16.875 0x0176 –22.750 0x01A5 –28.625 0x01D4 –34.500 0x0203 –40.375
0x0204 –40.500 0x0233 –46.375 0x0262 –52.250 0x0291 –58.250 0x02C0 –64.000 0x02EF –69.875
0x0205 –40.625 0x0234 –46.500 0x0263 –52.375 0x0292 –58.125 0x02C1 –64.125 0x02F0 –70.000
0x0206 –40.750 0x0235 –46.625 0x0264 –52.500 0x0293 –58.375 0x02C2 –64.250 0x02F1 –70.125
0x0207 –40.875 0x0236 –46.750 0x0265 –52.625 0x0294 –58.500 0x02C3 –64.375 0x02F2 –70.250
0x0208 –41.000 0x0237 –46.875 0x0266 –52.750 0x0295 –58.625 0x02C4 –64.500 0x02F3 –70.375
0x0209 –41.125 0x0238 –47.000 0x0267 –52.875 0x0296 –58.750 0x02C5 –64.625 0x02F4 –70.500
0x020A –41.250 0x0239 –47.125 0x0268 –53.000 0x0297 –58.875 0x02C6 –64.750 0x02F5 –70.625
0x020B –41.375 0x023A –47.250 0x0269 –53.125 0x0298 –59.000 0x02C7 –64.875 0x02F6 –70.750
0x020C –41.500 0x023B –47.375 0x026A –53.250 0x0299 –59.125 0x02C8 –65.000 0x02F7 –70.875
0x020D –41.625 0x023C –47.500 0x026B –53.375 0x029A –59.250 0x02C9 –65.125 0x02F8 –71.000
0x020E –41.750 0x023D –47.625 0x026C –53.500 0x029B –59.375 0x02CA –65.250 0x02F9 –71.125
0x020F –41.875 0x023E –47.750 0x026D –53.625 0x029C –59.500 0x02CB –65.375 0x02FA –71.250
0x0210 –42.000 0x023F –47.875 0x026E –53.750 0x029D –59.625 0x02CC –65.500 0x02FB –71.375
0x0211 –42.125 0x0240 –48.000 0x026F –53.875 0x029E –59.750 0x02CD –65.625 0x02FC –71.500
0x0212 –42.250 0x0241 –48.125 0x0270 –54.000 0x029F –59.875 0x02CE –65.750 0x02FD –71.625
0x0213 –42.375 0x0242 –48.250 0x0271 –54.125 0x02A0 –60.000 0x02CF –65.875 0x02FE –71.750
0x0214 –42.500 0x0243 –48.375 0x0272 –54.250 0x02A1 –60.125 0x02D0 –66.000 0x02FF –71.875
0x0215 –42.625 0x0244 –48.500 0x0273 –54.375 0x02A2 –60.250 0x02D1 –66.125 0x0300 –72.000
0x0216 –42.750 0x0245 –48.625 0x0274 –54.500 0x02A3 –60.375 0x02D2 –66.250 0x0301 –72.125
0x0217 –42.875 0x0246 –48.750 0x0275 –54.625 0x02A4 –60.500 0x02D3 –66.375 0x0302 –72.250
0x0218 –43.000 0x0247 –48.875 0x0276 –54.750 0x02A5 –60.625 0x02D4 –66.500 0x0303 –72.375
0x0219 –43.125 0x0248 –49.000 0x0277 –54.875 0x02A6 –60.750 0x02D5 –66.625 0x0304 –72.500
0x021A –43.250 0x0249 –49.125 0x0278 –55.000 0x02A7 –60.875 0x02D6 –66.750 0x0305 –72.625
0x021B –43.375 0x024A –49.250 0x0279 –55.125 0x02A8 –61.000 0x02D7 –66.875 0x0306 –72.750
0x021C –43.500 0x024B –49.375 0x027A –55.250 0x02A9 –61.125 0x02D8 –67.000 0x0307 –72.875
0x021D –43.625 0x024C –49.500 0x027B –55.375 0x02AA –61.250 0x02D9 –67.125 0x0308 –73.000
0x021E –43.750 0x024D –49.625 0x027C –55.500 0x02AB –61.375 0x02DA –67.250 0x0309 –73.125
0x021F –43.875 0x024E –49.750 0x027D –55.625 0x02AC –61.500 0x02DB –67.375 0x030A –73.250
0x0220 –44.000 0x024F –49.875 0x027E –55.750 0x02AD –61.625 0x02DC –67.500 0x030B –73.375
0x0221 –44.125 0x0250 –50.000 0x027F –55.875 0x02AE –61.750 0x02DD –67.625 0x030C –73.500
0x0222 –44.250 0x0251 –50.125 0x0280 –56.000 0x02AF –61.875 0x02DE –67.750 0x030D –73.625
0x0223 –44.375 0x0252 –50.250 0x0281 –56.250 0x02B0 –62.000 0x02DF –67.875 0x030E –73.750
0x0224 –44.500 0x0253 –50.375 0x0282 –56.125 0x02B1 –62.125 0x02E0 –68.000 0x030F –73.875
0x0225 –44.625 0x0254 –50.500 0x0283 –56.375 0x02B2 –62.250 0x02E1 –68.125 0x0310 –74.000
0x0226 –44.750 0x0255 –50.625 0x0284 –56.500 0x02B3 –62.375 0x02E2 –68.250 0x0311 –74.250
0x0227 –44.875 0x0256 –50.750 0x0285 –56.625 0x02B4 –62.500 0x02E3 –68.375 0x0312 –74.125
0x0228 –45.000 0x0257 –50.875 0x0286 –56.750 0x02B5 –62.625 0x02E4 –68.500 0x0313 –74.375
0x0229 –45.125 0x0258 –51.000 0x0287 –56.875 0x02B6 –62.750 0x02E5 –68.625 0x0314 –74.500
0x022A –45.250 0x0259 –51.125 0x0288 –57.000 0x02B7 –62.875 0x02E6 –68.750 0x0315 –74.625
0x022B –45.375 0x025A –51.250 0x0289 –57.125 0x02B8 –63.000 0x02E7 –68.875 0x0316 –74.750
0x022C –45.500 0x025B –51.375 0x028A –57.250 0x02B9 –63.125 0x02E8 –69.000 0x0317 –74.875
0x022D –45.625 0x025C –51.500 0x028B –57.375 0x02BA –63.250 0x02E9 –69.125 0x0318 –75.000
0x022E –45.750 0x025D –51.625 0x028C –57.500 0x02BB –63.375 0x02EA –69.250 0x0319 –75.125
0x022F –45.875 0x025E –51.750 0x028D –57.625 0x02BC –63.500 0x02EB –69.375 0x031A –75.250
0x0230 –46.000 0x025F –51.875 0x028E –57.750 0x02BD –63.625 0x02EC –69.500 0x031B –75.375
0x0231 –46.125 0x0260 –52.000 0x028F –57.875 0x02BE –63.750 0x02ED –69.625 0x031C –75.500
0x0232 –46.250 0x0261 –52.125 0x0290 –58.000 0x02BF –63.875 0x02EE –69.750 0x031D –75.625
0x031E –75.750 0x0344 –80.500 0x036A –85.250 0x0390 –90.000 0x03B6 –94.750 0x03DC –99.500
0x031F –75.875 0x0345 –80.625 0x036B –85.375 0x0391 –90.125 0x03B7 –94.875 0x03DD –99.625
0x0320 –76.000 0x0346 –80.750 0x036C –85.500 0x0392 –90.250 0x03B8 –95.000 0x03DE –99.750
0x0321 –76.125 0x0347 –80.875 0x036D –85.625 0x0393 –90.375 0x03B9 –95.125 0x03DF –99.875
0x0322 –76.250 0x0348 –81.000 0x036E –85.750 0x0394 –90.500 0x03BA –95.250 0x03E0 –100.000
0x0323 –76.375 0x0349 –81.125 0x036F –85.875 0x0395 –90.625 0x03BB –95.375 0x03E1 –100.125
0x0324 –76.500 0x034A –81.250 0x0370 –86.000 0x0396 –90.750 0x03BC –95.500 0x03E2 –100.250
0x0325 –76.625 0x034B –81.375 0x0371 –86.125 0x0397 –90.875 0x03BD –95.625 0x03E3 –100.375
0x0326 –76.750 0x034C –81.500 0x0372 –86.250 0x0398 –91.000 0x03BE –95.750 0x03E4 –100.500
0x0327 –76.875 0x034D –81.625 0x0373 –86.375 0x0399 –91.125 0x03BF –95.875 0x03E5 –100.625
0x0328 –77.000 0x034E –81.750 0x0374 –86.500 0x039A –91.250 0x03C0 –96.000 0x03E6 –100.750
0x0329 –77.125 0x034F –81.875 0x0375 –86.625 0x039B –91.375 0x03C1 –96.125 0x03E7 –100.875
0x032A –77.250 0x0350 –82.000 0x0376 –86.750 0x039C –91.500 0x03C2 –96.250 0x03E8 –101.000
0x032B –77.375 0x0351 –82.125 0x0377 –86.875 0x039D –91.625 0x03C3 –96.375 0x03E9 –101.125
0x032C –77.500 0x0352 –82.250 0x0378 –87.000 0x039E –91.750 0x03C4 –96.500 0x03EA –101.250
0x032D –77.625 0x0353 –82.375 0x0379 –87.125 0x039F –91.875 0x03C5 –96.625 0x03EB –101.375
0x032E –77.750 0x0354 –82.500 0x037A –87.250 0x03A0 –92.000 0x03C6 –96.750 0x03EC –101.500
0x032F –77.875 0x0355 –82.625 0x037B –87.375 0x03A1 –92.125 0x03C7 –96.875 0x03ED –101.625
0x0330 –78.000 0x0356 –82.750 0x037C –87.500 0x03A2 –92.250 0x03C8 –97.000 0x03EE –101.750
0x0331 –78.125 0x0357 –82.875 0x037D –87.625 0x03A3 –92.375 0x03C9 –97.125 0x03EF –101.875
0x0332 –78.250 0x0358 –83.000 0x037E –87.750 0x03A4 –92.500 0x03CA –97.250 0x03F0 –102.000
0x0333 –78.375 0x0359 –83.125 0x037F –87.875 0x03A5 –92.625 0x03CB –97.375 0x03F1 –102.125
0x0334 –78.500 0x035A –83.250 0x0380 –88.000 0x03A6 –92.750 0x03CC –97.500 0x03F2 –102.250
0x0335 –78.625 0x035B –83.375 0x0381 –88.125 0x03A7 –92.875 0x03CD –97.625 0x03F3 –102.375
0x0336 –78.750 0x035C –83.500 0x0382 –88.250 0x03A8 –93.000 0x03CE –97.750 0x03F4 –102.500
0x0337 –78.875 0x035D –83.625 0x0383 –88.375 0x03A9 –93.125 0x03CF –97.875 0x03F5 –102.625
0x0338 –79.000 0x035E –83.750 0x0384 –88.500 0x03AA –93.250 0x03D0 –98.000 0x03F6 –102.750
0x0339 –79.125 0x035F –83.875 0x0385 –88.625 0x03AB –93.375 0x03D1 –98.125 0x03F7 –102.875
0x033A –79.250 0x0360 –84.000 0x0386 –88.750 0x03AC –93.500 0x03D2 –98.250 0x03F8 –103.000
0x033B –79.375 0x0361 –84.125 0x0387 –88.875 0x03AD –93.625 0x03D3 –98.375 0x03F9 –103.125
0x033C –79.500 0x0362 –84.250 0x0388 –89.000 0x03AE –93.750 0x03D4 –98.500 0x03FA –103.250
0x033D –79.625 0x0363 –84.375 0x0389 –89.125 0x03AF –93.875 0x03D5 –98.625 0x03FB –103.375
0x033E –79.750 0x0364 –84.500 0x038A –89.250 0x03B0 –94.000 0x03D6 –98.750 0x03FC –103.500
0x033F –79.875 0x0365 –84.625 0x038B –89.375 0x03B1 –94.125 0x03D7 –98.875 0x03FD –103.625
0x0340 –80.000 0x0366 –84.750 0x038C –89.500 0x03B2 –94.250 0x03D8 –99.000 0x03FE –103.750
0x0341 –80.250 0x0367 –84.875 0x038D –89.625 0x03B3 –94.375 0x03D9 –99.125 0x03FF Mute
0x0341 –80.250 0x0368 –85.000 0x038E –89.750 0x03B4 –94.500 0x03DA –99.250
0x0343 –80.375 0x0369 –85.125 0x038F –89.875 0x03B5 –94.625 0x03DB –99.375

Volume Configuration Register (0x0E)

Bits D2–D0: Volume slew rate (used to control volume change and MUTE ramp rates). These bits control the number of steps in a volume ramp. Volume steps occur at a rate that depends on the sample rate of the I2S data as follows:
Sample rate (kHz) Approximate ramp rate
8/16/32 125 μs/step
11.025/22.05/44.1 90.7 μs/step
12/24/48 83.3 μs/step

In two-band DRC, register 0x0A should be set to 0x30 and register 0x0E bits 6 and 5 should be set to 1.

Table 13. Volume Configuration Register (0x0E)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
1 Reserved(1)
0 DRC2 volume 1 (ch4) from I2C register 0x08
1 DRC2 volume 1 (ch4) from I2C register 0x0A(1)
0 DRC2 volume 2 (ch3) from I2C register 0x09
1 DRC2 volume 2 (ch3) from I2C register 0x0A(1)
1 0 Reserved(1)
0 0 0 Volume slew 512 steps (43 ms volume ramp time at 48 kHz)(1)
0 0 1 Volume slew 1024 steps (85-ms volume ramp time at 48 kHz)
0 1 0 Volume slew 2048 steps (171-ms volume ramp time at 48 kHz)
0 1 1 Volume slew 256 steps (21-ms volume ramp time at 48 kHz)
1 X X Reserved
Default values are in bold.

Modulation Limit Register (0x10)

Table 14. Modulation Limit Register (0x10)

D7 D6 D5 D4 D3 D2 D1 D0 MODULATION LIMIT
0 0 0 0 0 Reserved
0 0 0 99.2%
0 0 1 98.4%
0 1 0 97.7%(1)
0 1 1 96.9%
1 0 0 96.1%
1 0 1 95.3%
1 1 0 94.5%
1 1 1 93.8%
Default values are in bold.

Interchannel Delay Registers (0x11, 0x12, 0x13, and 0x14)

Internal PWM channels 1, 2, 1, and 2 are mapped into registers 0x11, 0x12, 0x13, and 0x14.

Table 15. Channel Interchannel Delay Register Format

BITS DEFINITION D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 0 0 0 Minimum absolute delay, 0 DCLK cycles
0 1 1 1 1 1 Maximum positive delay, 31 × 4 DCLK cycles
1 0 0 0 0 0 Maximum negative delay, –32 × 4 DCLK cycles
0 0 Reserved
SUBADDRESS D7 D6 D5 D4 D3 D2 D1 D0 Delay = (value) × 4 DCLKs
0x11 1 0 1 0 1 1 Default value for channel 1(1)
0x12 0 1 0 1 0 1 Default value for channel 2(1)
0x13 1 0 1 0 1 1 Default value for channel 1(1)
0x14 0 1 0 1 0 1 Default value for channel 2(1)
Default values are in bold.

ICD settings have high impact on audio performance (for example, dynamic range, THD, crosstalk, and so forth) Therefore, appropriate ICD settings must be used. By default, the device has ICD settings for the AD mode. If used in BD mode, then update these registers before coming out of all-channel shutdown.

Table 16. ICD Settings

MODE AD MODE BD MODE
0x11 AC B8
0x12 54 60
0x13 AC A0
0x14 54 48

PWM Shutdown Group Register (0x19)

Settings of this register determine which PWM channels are active. The value should be 0x30 for BTL mode and 0x3A for PBTL mode. The default value of this register is 0x30. The functionality of this register is tied to the state of bit D5 in the system control register.

This register defines which channels belong to the shutdown group (SDG). If a 1 is set in the shutdown group register, that particular channel is not started following an exit out of all-channel shutdown command (if bit D5 is set to 0 in system control register 2, 0x05).

Table 17. PWM Shutdown Group Register (0x19)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 Reserved(1)
0 Reserved(1)
1 Reserved(1)
1 Reserved(1)
0 PWM channel 4 does not belong to shutdown group.(1)
1 PWM channel 4 belongs to shutdown group.
0 PWM channel 3 does not belong to shutdown group.(1)
1 PWM channel 3 belongs to shutdown group.
0 PWM channel 2 does not belong to shutdown group.(1)
1 PWM channel 2 belongs to shutdown group.
0 PWM channel 1 does not belong to shutdown group.(1)
1 PWM channel 1 belongs to shutdown group.
Default values are in bold.

Start/Stop Period Register (0x1A)

This register is used to control the soft-start and soft-stop period following an enter or exit all-channel shutdown command or change in the PDN state. This helps reduce pops and clicks at start-up and shutdown. The times are only approximate and vary depending on device activity level and I2S clock stability.

Table 18. Start/Stop Period Register (0x1A)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 SSTIMER enabled(1)
1 SSTIMER disabled
0 0 Reserved(1)
0 0 No 50% duty cycle start/stop period
0 1 0 0 0 16.5-ms 50% duty cycle start/stop period
0 1 0 0 1 23.9-ms 50% duty cycle start/stop period
0 1 0 1 0 31.4-ms 50% duty cycle start/stop period
0 1 0 1 1 40.4-ms 50% duty cycle start/stop period
0 1 1 0 0 53.9-ms 50% duty cycle start/stop period
0 1 1 0 1 70.3-ms 50% duty cycle start/stop period
0 1 1 1 0 94.2-ms 50% duty cycle start/stop period
0 1 1 1 1 125.7-ms 50% duty cycle start/stop period(1)
1 0 0 0 0 164.6-ms 50% duty cycle start/stop period
1 0 0 0 1 239.4-ms 50% duty cycle start/stop period
1 0 0 1 0 314.2-ms 50% duty cycle start/stop period
1 0 0 1 1 403.9-ms 50% duty cycle start/stop period
1 0 1 0 0 538.6-ms 50% duty cycle start/stop period
1 0 1 0 1 703.1-ms 50% duty cycle start/stop period
1 0 1 1 0 942.5-ms 50% duty cycle start/stop period
1 0 1 1 1 1256.6-ms 50% duty cycle start/stop period
1 1 0 0 0 1728.1-ms 50% duty cycle start/stop period
1 1 0 0 1 2513.6-ms 50% duty cycle start/stop period
1 1 0 1 0 3299.1-ms 50% duty cycle start/stop period
1 1 0 1 1 4241.7-ms 50% duty cycle start/stop period
1 1 1 0 0 5655.6-ms 50% duty cycle start/stop period
1 1 1 0 1 7383.7-ms 50% duty cycle start/stop period
1 1 1 1 0 9897.3-ms 50% duty cycle start/stop period
1 1 1 1 1 13,196.4-ms 50% duty cycle start/stop period
Default values are in bold.

Oscillator Trim Register (0x1B)

The TAS5727 PWM processor contains an internal oscillator to support autodetect of I2S clock rates. This reduces system cost because an external reference is not required. Currently, TI recommends a reference resistor value of 18.2 kΩ (1%). This should be connected between OSC_RES and DVSSO.

Writing 0x00 to register 0x1B enables the trim that was programmed at the factory.

Note that trim must always be run following reset of the device.

Table 19. Oscillator Trim Register (0x1B)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
1 Reserved(1)
0 Oscillator trim not done (read-only)(1)
1 Oscillator trim done (read only)
0 0 0 0 Reserved(1)
0 Select factory trim (Write a 0 to select factory trim; default is 1.)
1 Factory trim disabled(1)
0 Reserved(1)
Default values are in bold.

BKND_ERR Register (0x1C)

When a back-end error signal is received from the internal power stage, the power stage is reset, stopping all PWM activity. Subsequently, the modulator waits approximately for the time listed in Table 20 before attempting to re-start the power stage.

Table 20. BKND_ERR Register (0x1C)(1)

D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 0 0 0 0 X Reserved
0 0 1 0 Set back-end reset period to 299 ms(2)
0 0 1 1 Set back-end reset period to 449 ms
0 1 0 0 Set back-end reset period to 598 ms
0 1 0 1 Set back-end reset period to 748 ms
0 1 1 0 Set back-end reset period to 898 ms
0 1 1 1 Set back-end reset period to 1047 ms
1 0 0 0 Set back-end reset period to 1197 ms
1 0 0 1 Set back-end reset period to 1346 ms
1 0 1 X Set back-end reset period to 1496 ms
1 1 X X Set back-end reset period to 1496 ms
This register can be written only with a non-reserved value. Also this register can be written once after the reset.
Default values are in bold.

Input Multiplexer Register (0x20)

This register controls the modulation scheme (AD or BD mode) as well as the routing of I2S audio to the internal channels.

Table 21. Input Multiplexer Register (0x20)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 Channel-1 AD mode(1)
1 Channel-1 BD mode
0 0 0 SDIN-L to channel 1(1)
0 0 1 SDIN-R to channel 1
0 1 0 Reserved
0 1 1 Reserved
1 0 0 Reserved
1 0 1 Reserved
1 1 0 Ground (0) to channel 1
1 1 1 Reserved
0 Channel 2 AD mode(1)
1 Channel 2 BD mode
0 0 0 SDIN-L to channel 2
0 0 1 SDIN-R to channel 2(1)
0 1 0 Reserved
0 1 1 Reserved
1 0 0 Reserved
1 0 1 Reserved
1 1 0 Ground (0) to channel 2
1 1 1 Reserved
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 1 1 1 0 1 1 1 Reserved(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 1 1 1 0 0 1 0 Reserved(1)
Default values are in bold.

Channel 4 Source Select Register (0x21)

This register selects the channel 4 source.

Table 22. Subchannel Control Register (0x21)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 1 0 0 0 0 1 Reserved(1)
0 (L + R)/2
1 Left-channel post-BQ(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 0 0 0 0 1 1 Reserved(1)
Default values are in bold.

PWM Output MUX Register (0x25)

This DAP output mux selects which internal PWM channel is output to the external pins. Any channel can be output to any external output pin.

Bits D21–D20: Selects which PWM channel is output to OUT_A
Bits D17–D16: Selects which PWM channel is output to OUT_B
Bits D13–D12: Selects which PWM channel is output to OUT_C
Bits D09–D08: Selects which PWM channel is output to OUT_D

Note that channels are encoded so that channel 1 = 0x00, channel 2 = 0x01, …, channel 4 = 0x03.

Table 23. PWM Output Mux Register (0x25)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 1 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 0 Reserved(1)
0 0 Multiplex channel 1 to OUT_A(1)
0 1 Multiplex channel 2 to OUT_A
1 0 Multiplex channel 1 to OUT_A
1 1 Multiplex channel 2 to OUT_A
0 0 Reserved(1)
0 0 Multiplex channel 1 to OUT_B
0 1 Multiplex channel 2 to OUT_B
1 0 Multiplex channel 1 to OUT_B(1)
1 1 Multiplex channel 2 to OUT_B
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 0 Reserved(1)
0 0 Multiplex channel 1 to OUT_C
0 1 Multiplex channel 2 to OUT_C(1)
1 0 Multiplex channel 1 to OUT_C
1 1 Multiplex channel 2 to OUT_C
0 0 Reserved(1)
0 0 Multiplex channel 1 to OUT_D
0 1 Multiplex channel 2 to OUT_D
1 0 Multiplex channel 1 to OUT_D
1 1 Multiplex channel 2 to OUT_D(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 1 0 0 0 1 0 1 Reserved(1)
Default values are in bold.

DRC Control Register (0x46)

Table 24. DRC Control Register (0x46)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 Reserved(1)
0 Reserved
1 Reserved
0 Reserved(1)
0 Reserved(1)
0 Reserved(1)
0 DRC2 turned OFF(1)
1 DRC2 turned ON
0 DRC1 turned OFF(1)
1 DRC1 turned ON
Default values are in bold.

PWM Switching Rate Control Register (0x4F)

PWM switching rate should be selected through the register 0x4F before coming out of all-channnel shutdown.

Table 25. PWM Switching Rate Control Register (0x4F)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 0 Reserved(1)
0 1 1 0 SRC = 6(1)
0 1 1 1 SRC = 7
1 0 0 0 SRC = 8
1 0 0 1 SRC = 9
1 0 1 0 Reserved
1 1 Reserved
Default values are in bold.

Bank Switch and EQ Control (0x50)

Table 26. Bank Switching Command (0x50)

D31 D30 D29 D28 D27 D26 D25 D24 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D23 D22 D21 D20 D19 D18 D17 D16 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D15 D14 D13 D12 D11 D10 D9 D8 FUNCTION
0 0 0 0 0 0 0 0 Reserved(1)
D7 D6 D5 D4 D3 D2 D1 D0 FUNCTION
0 EQ ON(1)
1 EQ OFF (bypass BQ 0–7 of channels 1 and 2)
0 Reserved(1)
0 Ignore bank-mapping in bits D31–D8. Use default mapping.(1)
1 Use bank-mapping in bits D31–D8.
0 L and R can be written independently.(1)
1 L and R are ganged for EQ biquads; a write to the left-channel biquad is also written to the right-channel biquad. (0x29–0x2F is ganged to 0x30–0x36. Also, 0x58–0x5B is ganged to 0x5C–0x5F.
0 Reserved(1)
0 0 0 No bank switching. All updates to DAP(1)
0 0 1 Configure bank 1 (32 kHz by default)
0 1 X Reserved
1 X X Reserved
Default values are in bold.
