6.9 Typical Characteristics

VCC = 5 V, TA = 250C (unless otherwise noted)
THVD1520 D_001.gifFigure 1. Driver Output Voltage vs Driver Output Current
THVD1520 D_003.gifFigure 3. Driver Output Current vs Supply Voltage

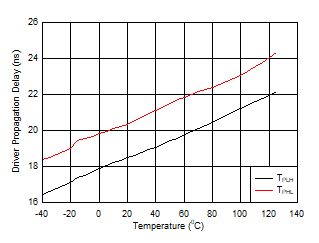

THVD1520 D005.gifFigure 5. Driver Propagation Delay vs Temperature

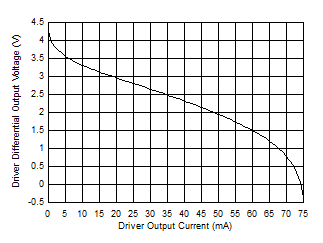

THVD1520 D_002.gifFigure 2. Driver Differential Output Voltage vs Driver Output Current
THVD1520 D004.gifFigure 4. Driver Rise or Fall Time vs Temperature
THVD1520 D006.gif

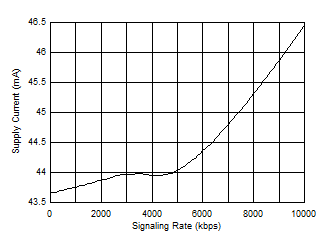

50% duty cycle square-wave RL = 54 Ω CL = 50 pF DE = VCC, RE = GND
Figure 6. Supply Current vs Signaling Rate
