5.7 Typical Characteristics
Operation of the device at these or any other conditions beyond those indicated in the Section 5.4 table are not implied.
Figure 5-1 Reference Voltage vs Junction Temperature
Figure 5-3 Reference Input Current vs Junction Temperature (for TLV431B)
Figure 5-5 Minimum Cathode Current (µA) vs Temperature
Figure 5-7 Off-State Cathode Current vs Junction Temperature for TLV431A
Figure 5-9 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Junction Temperature for TLV431A
| ‡ Extrapolated from life-test data taken at 125°C; the activation energy assumed is 0.7 eV. |
Figure 5-2 Reference Current vs Free- air Temperature (TLV431A)
Figure 5-4 Cathode Current vs Cathode Voltage

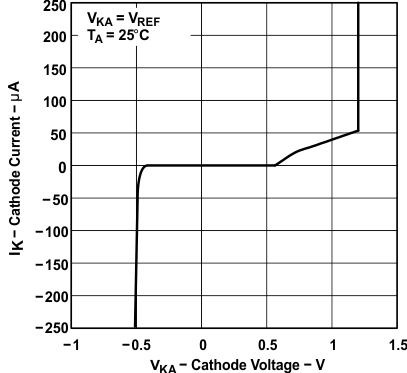

Figure 5-6 Cathode Current vs Cathode Voltage
Figure 5-8 Off-State Cathode Current vs Junction Temperature for TLV431B
Figure 5-10 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Junction Temperature (for TLV431B)
Figure 5-12 Equivalent Input Noise Voltage
Figure 5-13 Equivalent Noise Voltage over a 10s Period
Figure 5-14 Voltage Gain and Phase Margin
Figure 5-15 Reference Impedance vs Frequency
Figure 5-16 Pulse
Response 1
Figure 5-17 Pulse
Response 2
‡
The areas under the curves represent conditions that can cause the device to
oscillate. For VKA = 2V and 3V curves, R2 and Vbat
were adjusted to establish the initial VKA and IK
conditions with CL = 0. Vbat and CL then
were adjusted to determine the ranges of stability.
Figure 5-18 Stability Boundary Conditions
Figure 5-19 Phase
Margin vs Capacitive Load VKA = VREF (1.25 V),
TA= 25°C (For TLV431B-Q1)
Figure 5-20 Phase
Margin vs Capacitive Load VKA = 2.50V, TA= 25°C (For
TLV431B-Q1)
Figure 5-21 Phase
Margin vs Capacitive Load VKA = 5.00V, TA= 25°C (For
TLV431B-Q1)
