Specifications

Absolute Maximum Ratings

Over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Supply voltage, Vs = (V+) - (V-) –0.3 6 V
Input pins Voltage (2) (3) Common mode (V-) - 0.3 (V+) + 0.3 V
Differential (V-) - 0.3 (V+) + 0.3 V
Input pins Current -10 10 mA
Output short current (4) Continuous Continuous
Storage temperature, Tstg –65 150 °C
Junction temperature 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Not to exceed -0.3V or +6.0V on ANY pin, referred to V-
Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.3 V beyond the supply rails should be current-limited to 10 mA or less.
Short-circuit to Vs/2, one amplifier per package. Continuous short circuit operation at elevated ambient temperature can result in exceeding the maximum allowed junction temperature of 150°C.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±250
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500-V HBM is possible with the necessary precautions. Pins listed as ±2000 V may actually have higher performance.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250-V CDM is possible with the necessary precautions. Pins listed as ±750 V may actually have higher performance.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply voltage (V+ – V–) 1.7 5.5 V
Specified temperature -40 125 °C

Thermal Information

THERMAL METRIC(1) TLV8811
DBV
(SOT-23)
5 PINS
TLV8812
DGK
(VSSOP)
8 PINS
UNIT
θJA Junction-to-ambient thermal resistance 177.4 177.6 ºC/W
θJCtop Junction-to-case (top) thermal resistance 133.9 68.8
θJB Junction-to-board thermal resistance 36.3 98.2
ψJT Junction-to-top characterization parameter 23.6 12.3
ψJB Junction-to-board characterization parameter 35.7 96.7
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

TA = 25°C, VS = 1.8 V to 5 V, VCM = VOUT = VS/2, and RL≥ 10 MΩ to VS / 2, unless otherwise noted .
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
OFFSET VOLTAGE
VOS Input offset voltage, TLV8811 VS = 1.8V and 3.3V, VCM = V- ±75 ±550 µV
Input offset voltage, TLV8812 VS = 1.8V and 3.3V, VCM = V- ±55 ±500 µV
ΔVOS/ΔT Input offset drift VCM = V- TA = –40°C to 125°C ±1 µV/°C
PSRR Power-supply rejection ratio VS = 1.8V to 3.3V,  VCM = V- ±1.6 ±60 µV/V
INPUT VOLTAGE RANGE
VCM Common-mode voltage range VS = 3.3V 0 2.4 V
CMRR Common-mode rejection ratio, TLV8811 (V–) ≤ VCM ≤ (V+) – 0.9 V, VS = 3.3V 77 95 dB
Common-mode rejection ratio, TLV8812 (V–) ≤ VCM ≤ (V+) – 0.9 V, VS = 3.3V 80 98 dB
INPUT BIAS CURRENT
IB Input bias current VS = 1.8V ±100 fA
IOS Input offset current VS = 1.8V ±100 fA
INPUT IMPEDANCE
Differential 7 pF
Common mode 3 pF
NOISE
En Input voltage noise ƒ = 0.1 Hz to 10 Hz 8 µVp-p
en Input voltage noise density ƒ = 100 Hz 360 nV/√Hz
ƒ = 1 kHz 450
OPEN-LOOP GAIN
AOL Open-loop voltage gain (V–) + 0.3 V ≤ VO ≤ (V+) – 0.3 V, RL = 100 kΩ 120 dB
OUTPUT
VOH Voltage output swing from positive rail VS = 1.8V, RL = 100 kΩ to V+/2 10 3.5 mV
VOL Voltage output swing from negative rail VS = 1.8V, RL = 100 kΩ to V+/2 2.5 10
ISC Short-circuit current VS = 3.3V, Short to VS/2 4.7 mA
ZO Open loop output impedance ƒ = 1 KHz, IO = 0 A 90
FREQUENCY RESPONSE
GBP Gain-bandwidth product CL = 20 pF, RL = 10 MΩ, VS = 5V 6 kHz
SR Slew rate (10% to 90%) G = 1, Rising Edge, CL = 20 pF, VS = 5V 1.4 V/ms
G = 1, Falling Edge, CL = 20 pF, VS = 5V 1.5
POWER
SUPPLY
IQ Quiescent Current, TLV8811 VCM = V-, IO = 0, VS = 3.3V 450 750 nA
Quiescent Current,
Per Channel, TLV8812
VCM = V-, IO = 0, VS = 3.3V 425 700

Typical Characteristics

at TA = 25°C, RL = 10MΩ to VS/2 ,CL = 20pF, VCM = VS / 2V unless otherwise specified.
TLV8811 TLV8812 TG_811_Iq_Vs_Vs.png
VCM = V- TLV8811 RL=No Load
Figure 1. Supply Current vs. Supply Voltage, TLV8811
TLV8811 TLV8812 TG_Vos_Vcm_1p8.png
VS= 1.8V RL= 10MΩ
Figure 3. Typical Offset Voltage vs. Common Mode Voltage
TLV8811 TLV8812 TG_812_Vos_Vcm_5V.png
VS= 5V RL= 10MΩ
Figure 5. Typical Offset Voltage vs. Common Mode Voltage
TLV8811 TLV8812 IB_VCM_1p8V_m40.png
VS= 1.8V TA = -40°C
Figure 7. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 IB_VCM_1p8V_25C.png
VS= 1.8V TA = 25°C
Figure 9. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 IB_VCM_1p8V_125C.png
VS= 1.8V TA = 125°C
Figure 11. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 TG_Isrc_Vo_18V.png
VS= 1.8V RL= No Load
Figure 13. Output Swing vs. Sourcing Current, 1.8V
TLV8811 TLV8812 TG_Isrc_Vo_3p3.png
VS= 3.3V RL= No Load
Figure 15. Output Swing vs. Sourcing Current, 3.3V
TLV8811 TLV8812 TG_Isrc_Vo_5V.png
VS= 5V RL= No Load
Figure 17. Output Swing vs. Sourcing Current, 5V
TLV8811 TLV8812 TG_SSPULSE_1p8.png
TA = 25 RL= 10MΩ Vout = 200mVpp
VS= ±0.9V CL= 20pF AV = +1
Figure 19. Small Signal Pulse Response, 1.8V
TLV8811 TLV8812 TG_LSPULSE_1p8.png
TA = 25 RL= 10MΩ Vout = 1Vpp
VS= ±0.9V CL= 20pF AV = +1
Figure 21. Large Signal Pulse Response, 1.8V
TLV8811 TLV8812 802_CMRR_vs_Freq.png
TA = 25 RL= 10MΩ ΔVCM = 0.5Vpp
VS= 5V CL= 20p
VCM = Vs/2 AV = +1
Figure 23. CMRR vs Frequency
TLV8811 TLV8812 AVPH_5V_10M.png
TA = -40, 25, 125°C RL= 10MΩ VOUT = 200mVPP
VS= 5V CL= 20pF VCM = Vs/2
Figure 25. Open Loop Gain and Phase, 5V, 10 MΩ Load
TLV8811 TLV8812 AVPH_1p8V_1M.png
TA = -40, 25, 125°C RL= 1MΩ VOUT = 200mVPP
VS= 5V CL= 20pF VCM = Vs/2
Figure 27. Open Loop Gain and Phase, 5V, 1 MΩ Load
TLV8811 TLV8812 AVPH_5V_100k.png
TA = -40, 25, 125°C RL= 100kΩ VOUT = 200mVPP
VS= 5V CL= 20pF VCM = Vs/2
Figure 29. Open Loop Gain and Phase, 5V, 100kΩ Load
TLV8811 TLV8812 AVPH_1p8V_10M.png
TA = -40, 25, 125°C RL= 10MΩ VOUT = 200mVPP
VS= 1.8V CL= 20pF VCM = Vs/2
Figure 31. Open Loop Gain and Phase, 1.8V, 10 MΩ Load
TLV8811 TLV8812 AVPH_1p8V_1M.png
TA = -40, 25, 125°C RL= 1MΩ VOUT = 200mVPP
VS= 1.8V CL= 20pF VCM = Vs/2
Figure 33. Open Loop Gain and Phase, 1.8V, 1 MΩ Load
TLV8811 TLV8812 AVPH_1p8V_100k.png
TA = -40, 25, 125°C RL= 100kΩ VOUT = 200mVPP
VS= 1.8V CL= 20pF VCM = Vs/2
Figure 35. Open Loop Gain and Phase, 1.8V, 100kΩ Load
TLV8811 TLV8812 TG_812_Iq_Vs_Vs.png
VCM = V- TLV8812 RL=No Load
Figure 2. Supply Current vs. Supply Voltage, TLV8812
TLV8811 TLV8812 TG_Vos_Vcm_3p3V.png
VS= 3.3V RL= 10MΩ
Figure 4. Typical Offset Voltage vs. Common Mode Voltage

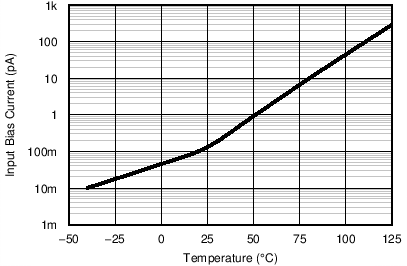

TLV8811 TLV8812 Ib_vs_Temp.png
VS= 5V TA = -40 to 125 VCM = Vs/2
Figure 6. Input Bias Current vs. Temperature
TLV8811 TLV8812 IB_VCM_5V_m40.png
VS= 5V TA = -40°C
Figure 8. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 IB_VCM_5V_25C.png
VS= 5V TA = 25°C
Figure 10. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 IB_VCM_5V_125C.png
VS= 5V TA = 125°C
Figure 12. Input Bias Current vs. Common Mode Voltage
TLV8811 TLV8812 TG_Isnk_Vo_18V.png
VS= 1.8V RL= No Load
Figure 14. Output Swing vs. Sinking Current, 1.8V
TLV8811 TLV8812 TG_Isnk_Vo_3V.png
VS= 3.3V RL= No Load
Figure 16. Output Swing vs. Sinking Current, 3.3V
TLV8811 TLV8812 TG_Isnk_Vo_5V.png
VS= 5V RL= No Load
Figure 18. Output Swing vs. Sinking Current, 5V
TLV8811 TLV8812 TG_SSPULSE_5.png
TA = 25 RL= 10MΩ Vout = 200mVpp
VS= ±2.5V CL= 20pF AV = +1
Figure 20. Small Signal Pulse Response, 5V
TLV8811 TLV8812 TG_LSPULSE_5.png
TA = 25 RL= 10MΩ Vout = 2Vpp
VS= ±2.5V CL= 20pF AV = +1
Figure 22. Large Signal Pulse Response, 5V
TLV8811 TLV8812 PSRR_VS_FREQ.png
TA = 25 RL= 10MΩ ΔVS = 0.5Vpp
VS= 3.3V CL= 20p
VCM = Vs/2 AV = +1
Figure 24. ±PSRR vs Frequency
TLV8811 TLV8812 AVPH_3V_10M.png
TA = -40, 25, 125°C RL= 10MΩ VOUT = 200mVPP
VS= 3.3V CL= 20pF VCM = Vs/2
Figure 26. Open Loop Gain and Phase, 3.3V, 10 MΩ Load
TLV8811 TLV8812 AVPH_3V_1M.png
TA = -40, 25, 125°C RL= 1MΩ VOUT = 200mVPP
VS= 3.3V CL= 20pF VCM = Vs/2
Figure 28. Open Loop Gain and Phase, 3.3V, 1 MΩ Load
TLV8811 TLV8812 AVPH_3V_100k.png
TA = -40, 25, 125°C RL= 100kΩ VOUT = 200mVPP
VS= 3.3V CL= 20pF VCM = Vs/2
Figure 30. Open Loop Gain and Phase, 3.3V, 100kΩ Load
TLV8811 TLV8812 TG_Zout.png
TA = 25°C VS= 5 V RL= 10MΩ
Figure 32. Open Loop Output Impedance
TLV8811 TLV8812 Noise.png
TA = 25 RL= 1MΩ VCM = Vs/2
VS= 5V CL= 20pF AV = +1
Figure 34. Input Voltage Noise vs Frequency
TLV8811 TLV8812 EMIRR_3p3V.png
TA = 25 RL= 1MΩ VCM = Vs/2
VS= 3.3V CL= 20pF AV = +1
Figure 36. EMIRR Performance
