Typical Characteristics

at TA = 25°C, (unless otherwise noted)

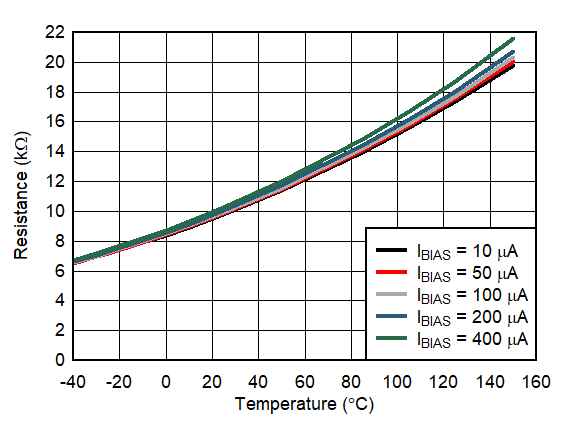

GUID-20200917-CA0I-KPCL-K3QP-TCMD73QMPMXP-low.gifFigure 6-1 Resistance vs Ambient Temperature Using Multiple Bias Currents
GUID-67E675CC-9DE0-438B-9BF7-200FC2A66683-low.gifFigure 6-3 TCR vs Sense Currents (ISNS)
Figure 6-5 Supply Dependence Resistance vs Bias Current
VSNS = 1 V

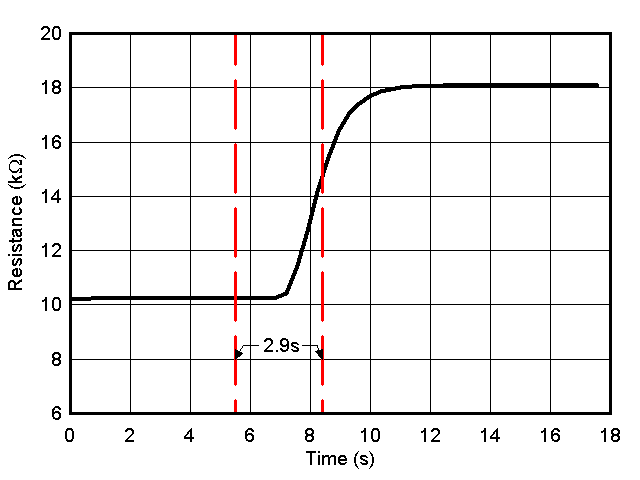

Figure 6-7 Step Response
Ambient condition: still air
Figure 6-9 Thermal Response Time (DEC and DYA Package)
Ambient material: stirred liquid
Figure 6-11 Thermal Response Time (LPG Package)
RBIAS = 10 kΩ with ±0.01% tolerance
Figure 6-2 Resistance vs Ambient Temperature Using Multiple Bias Voltages
VSns = 1.8 V, 2.5 V, 3.3 V, and 5.0 V, RBias = 10 kΩ with ±0.01% Tolerance

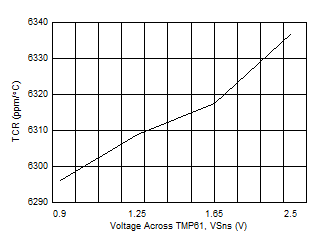

Figure 6-4 TCR vs Sense Voltages, VSns
RBias = 10 kΩ ( ±0.01% tolerance)

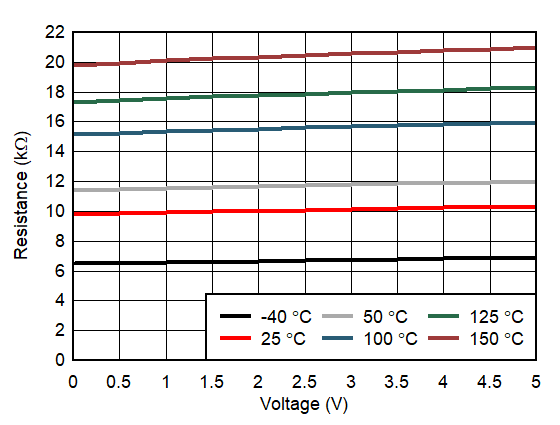

Figure 6-6 Supply Dependence vs Bias Voltage
Ambient material: stirred liquid

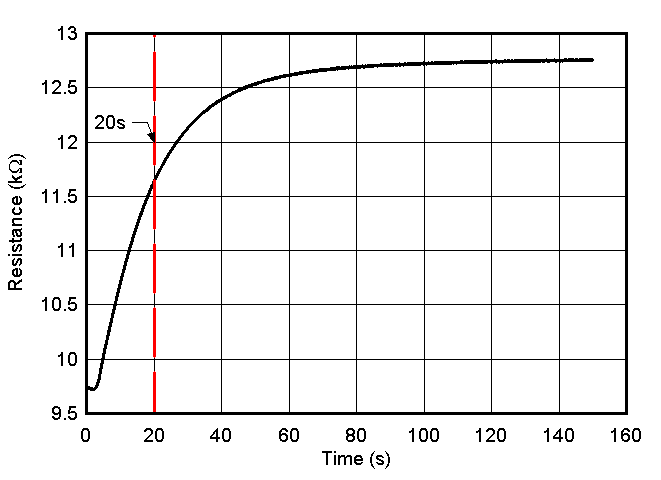

Figure 6-8 Thermal Response Time (DEC package)
Ambient condition: still air

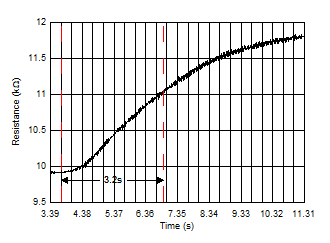

Figure 6-10 Thermal Response Time (LPG Package)
