7.7 Typical Characteristics

Conditions are –40°C ≤ TJ = TA ≤ +125°C, V(IN) = 12 V, V(EN/UVLO) = 2 V, V(OVP) = V(DMODE) = V(PGTH) = 0 V, R(ILIM) = 150 kΩ, C(OUT) = 1 µF, C(dVdT) = OPEN, PGOOD = FLT = IMON = OPEN. (unless stated otherwise)
TPS25942A TPS25942L TPS25944A TPS25944L C001_SLVSCE9.png
Figure 1. Internal UVLO Threshold Voltage vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L D003_SLVSCE9.gif
Figure 3. Input Supply Current vs Supply Voltage at Shutdown
TPS25942A TPS25942L TPS25944A TPS25944L C005_SLVSCE9.png
Figure 5. OVP Threshold Voltage vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C007_SLVSCE9.png
Figure 7. EN Threshold Voltage for Low IQ Mode vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C009_SLVSCE9.png
Figure 9. Enable Turnoff Delay vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L D204_SLVSCE9.gif
Figure 11. DMODE Threshold Voltage vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C013_SLVSCE9.png
Figure 13. GAIN(dVdT) vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C015_SLVSCE9.png
Figure 15. Current Limit vs Current Limit Resistor
TPS25942A TPS25942L TPS25944A TPS25944L D017_SLVSCE9.gif
Figure 17. Current Limit vs Temperature Across R(ILIM)
TPS25942A TPS25942L TPS25944A TPS25944L D030_SLVSCE9.gif
For I(LIM) = 5.3 A, device goes into thermal shutdown for
[V(IN) – V(OUT)] > 8 V
Figure 19. Current Limit Normalized (%) vs V(IN) – V(OUT)
TPS25942A TPS25942L TPS25944A TPS25944L C022_SLVSCE9.png
Figure 21. Fast Trip Threshold vs Current Limit
TPS25942A TPS25942L TPS25944A TPS25944L C023_SLVSCE9.png
Figure 23. GAIN(IMON) vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L D025_SLVSCE9.gif
Figure 25. RON vs Temperature Across Load Current
TPS25942A TPS25942L TPS25944A TPS25944L C102_SLVSCE9.png
Figure 27. V(REVTH) vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C104_SLVSCE9.png
Figure 29. Circuit Breaker Timer Fault Assertion Delay vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L 1_TurnON_EN_4.5V Cdvdt0nF.png
V(IN) = 4.5 V
Figure 31. Turnon With Enable
TPS25942A TPS25942L TPS25944A TPS25944L 3_EN_Ramp_11OhmLoad_11VV_TON(dly).png
R(FLT) = 100 kΩ
Figure 33. EN Turnon Delay : EN ↑ to Output Ramp ↑
TPS25942A TPS25942L TPS25944A TPS25944L 5_OVP_11Ohm_Load_TOVPR(dly).png
V(IN) = 12 V RL = 12 Ω R(FLT) = 100 kΩ
Figure 35. OVP Turnoff Delay: OVP ↑ to Fault ↓
TPS25942A TPS25942L TPS25944A TPS25944L 7_Power Good Deglitch_Raising.png
V(IN) = 12 V RL = 12 Ω R(FLT) = 100 kΩ
R(PGOOD) = 100 kΩ
Figure 37. Power Good Delay (Rising)

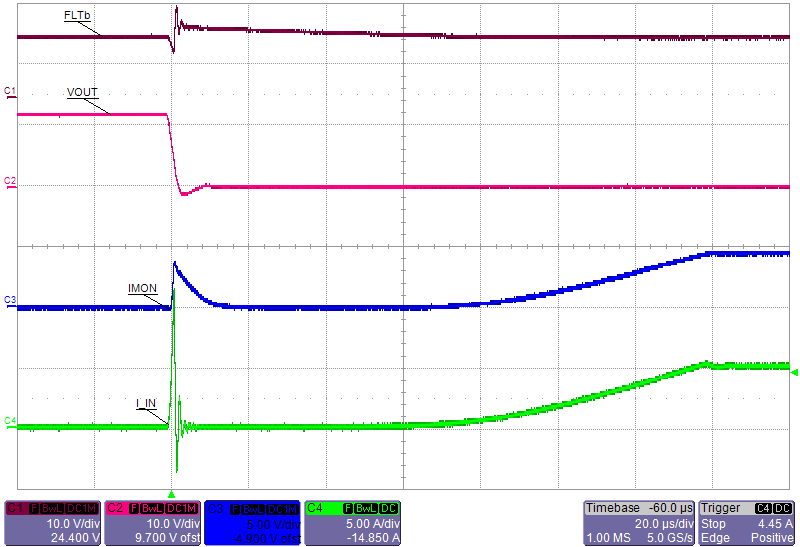

TPS25942A TPS25942L TPS25944A TPS25944L 9_Hot_Short_Fasttrip_response_Current_Regulation.png
V(IN) = 12 V R(IMON) = 16.9 kΩ R(FLT) = 100 kΩ
R(ILIM) = 17.8 KΩ
Figure 39. Hot-Short: Fast Trip Response and Current Regulation
TPS25942A TPS25942L TPS25944A TPS25944L 11_ENLBLK-21OhmLoad_12V_Blocing FET disable(dly).png
Figure 41. Transition from Normal Mode to Non-Ideal Diode Mode
TPS25942A TPS25942L TPS25944A TPS25944L figure44_slvsce9.png
V(IN) = 12 V RL = 3 Ω to 2 Ω R(IMON) = 16.9 kΩ
R(ILIM) = 17.8 KΩ R(FLT) = 100 kΩ
Figure 43. Overload: TPS25944A Circuit Break Function
TPS25942A TPS25942L TPS25944A TPS25944L figure46_slvsce9.png
V(IN) = 5 V R(IMON) = 16.9 kΩ R(FLT) = 100 kΩ
R(ILIM) = 17.8 KΩ
Figure 45. Hot Short Response: TPS25944A
Device Turns Off after the Fault Timer tCB(dly) (4 ms) Expires
TPS25942A TPS25942L TPS25944A TPS25944L D002_SLVSCE9.gif
Figure 2. Input Supply Current vs Supply Voltage During Normal Operation
TPS25942A TPS25942L TPS25944A TPS25944L C004_SLVSCE9.png
Figure 4. EN Threshold Voltage vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C006_SLVSCE9.png
Figure 6. PGTH Threshold Voltage vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C008_SLVSCE9.png
Figure 8. Enable Turnon Delay vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C100_SLVSCE9.png
Figure 10. OVP Disable Delay vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L D203_SLVSCE9.gif
Figure 12. DMODE Pulldown Current vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C014_SLVSCE9.png
Figure 14. Output Ramp Time vs C(dVdT)
TPS25942A TPS25942L TPS25944A TPS25944L C016_SLVSCE9.png
Figure 16. Current Limit Accuracy vs Current Limit
TPS25942A TPS25942L TPS25944A TPS25944L D018_SLVSCE9.gif
Figure 18. Current Limit (% Normalized) vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C019_SLVSCE9.png
Figure 20. Current Limit for R(ILIM) = Open and Short vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L D022_SLVSCE9.gif
Figure 22. IMON Offset vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C024_SLVSCE9.png
Figure 24. Current Monitor Output vs Output Current
TPS25942A TPS25942L TPS25944A TPS25944L C026_SLVSCE9.png
Figure 26. OUT Leakage Current in Off State vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C103_SLVSCE9.png
Figure 28. V(FWDTH) vs Temperature
TPS25942A TPS25942L TPS25944A TPS25944L C029_SLVSCE9.png
Taken on 2-Layer board, 2oz.(0.08-mm thick) with GND plane area: 14 cm2 (Top) and 20 cm2 (Bottom)
Figure 30. Thermal Shutdown Time vs Power Dissipation
TPS25942A TPS25942L TPS25944A TPS25944L 2_EN_Ramp_11OhmLoad_11V_IIN.png
V(IN) = 11 V
Figure 32. Turnon and Turnoff With Enable
TPS25942A TPS25942L TPS25944A TPS25944L 4_EN_Ramp_11OhmLoad_11V_TOFF(dly).png
R(FLT) = 100 kΩ
Figure 34. EN Turnoff Delay : EN ↓ to Fault ↓
TPS25942A TPS25942L TPS25944A TPS25944L 6_OVP_11Ohm_Load_TOVPF(dly).png
V(IN) = 12 V RL = 12 Ω R(FLT) = 100 kΩ
Figure 36. OVP Turnon Delay: OVP ↓ to Output Ramp ↑
TPS25942A TPS25942L TPS25944A TPS25944L 8_Power Good Deglitch_Falling.png
V(IN) = 12 V RL = 12 Ω R(FLT) = 100 kΩ
R(PGOOD) = 100 kΩ
Figure 38. Power Good Delay (Falling)
TPS25942A TPS25942L TPS25944A TPS25944L 10_Hot_Short_Fasttrip_response_Zoomed.png
V(IN) = 12 V R(IMON) = 16.9 kΩ R(FLT) = 100 kΩ
R(ILIM) = 17.8 KΩ
Figure 40. Hot-Short: Fast Trip Response (Zoomed)
TPS25942A TPS25942L TPS25944A TPS25944L 12_ENLBLK-21OhmLoad_12V_tENBLKON(dly).png
Figure 42. Transition from Non-Ideal Diode Mode to Normal Mode
TPS25942A TPS25942L TPS25944A TPS25944L figure45_slvsce9.png
Figure 44. Overload: Zoomed In (First Cycle)
TPS25942A TPS25942L TPS25944A TPS25944L figure47_slvsce9.png
V(IN) = 12 V R(IMON) = 16.9 kΩ R(FLT) = 100 kΩ
R(ILIM) = 17.8 KΩ
Figure 46. Hot Short Response: TPS25944A
Device Turns Off When TJ > T(TSD) Before Timer Expires
