6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Input voltage range VDD –0.3 22 V
CS1N, CS1P, CS2N, CS2P, GSNS1, GSNS2, ISH1, ISH2, PHSET, PMBDATA, PMBCLK, SMBALERT, SYNC, VSNS1, VSNS2 –0.3 5.5
AVSDATA, AVSCLK, TSNS1, TSNS2 –0.3 3.6
CNTL1, CNTL2, FB1, FB2 –0.3 7
Output voltage range ADDR0, ADDR1, RT, BP3 –0.3 3.6 V
BP5, COMP1, COMP2, DIFFO1, FLT1, FLT2, PG1, PG2, PWM1, PWM2 –0.3 7
Operating junction temperature, TJ –40 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –55 155 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) –2 2 kV
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) –1.5 1.5
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VDD Input operating voltage 4.5 20 V
TJ Operating junction temperature –40 125 °C

6.4 Thermal Information

THERMAL METRIC(1) TPS40428 UNIT
QFN (40 PINS)
RθJA Junction-to-ambient thermal resistance 27.8 °C/W
RθJCtop Junction-to-case (top) thermal resistance 17.2
θJB Junction-to-board thermal resistance 4.8
RψJT Junction-to-top characterization parameter 0.2
RψJB Junction-to-board characterization parameter 4.8
RθJCbot Junction-to-case (bottom) thermal resistance 1.2
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

TJ = –40ºC to 125ºC, VIN = VVDD = 12 V, RRT valued to produce a switching frequency (fSW) of 500 kHz, all parameters at zero power dissipation (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUT SUPPLY
VVDD Input supply voltage range 4.5 20 V

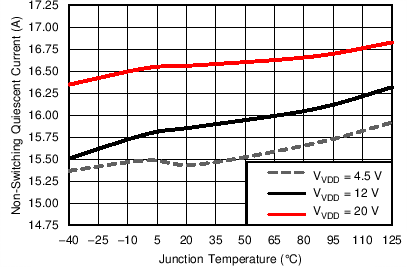

IVDD Input operating current Switching, no driver load, smart-power mode 17.3 mA
Not switching, smart-power mode 15.9
UVLO

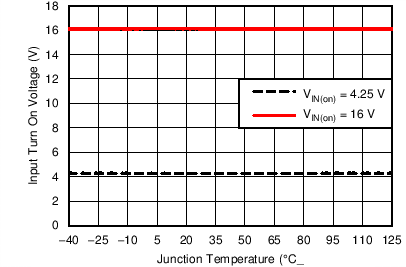

VIN(on) Input turn-on voltage(3) Default settings 4 4.25 4.5 V
VIN(off) Input turn-off voltage(3) Default settings 3.8 4 4.2 V
VINON(rng) Programmable range for turn on voltage 4.25 16 V
VINOFF(rng) Programmable range for turn off voltage 4 15.75 V
ERROR AMPLIFIER
VFB Feedback pin voltage –40°C ≤ TJ ≤ 125°C 597 600 603 mV
AOL Open-loop gain(1) 80 dB
GBWP Gain bandwidth product(1) 50 MHz
IFB FB pin bias current (out of pin) VFB = 0.6 V 100 nA
ICOMP Sourcing VFB = 0 V 1 mA
Sinking VFB = 1 V 1
BP5 REGULATOR

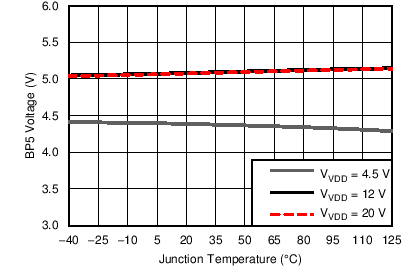

VBP5 Output voltage IBP5 = 10 mA 4.5 5 5.5 V
Dropout voltage VVIN – VBP5, VVDD = 4.5 V,

IBP5 = 25 mA
400 mV
IBP5 Output current VVDD = 12 V 40 mA
VBP5UV Regulator UVLO voltage(1) 3.3 3.55 3.8 V
VBP5UV(hyst) Regulator UVLO voltage hysteresis(1) 300 mV
BP3 REGULATOR
VBP3 Output voltage VVDD = 4.5 V, IBP3 ≤ 5 mA 3.1 3.3 3.5 V
OSCILLATOR AND RAMP GENERATOR
ƒSW Adjustment range(1) 200 1500 kHz
Switching frequency(4) RRT = 100 kΩ 180 200 220 kHz
Switching frequency(4) RRT = 40 kΩ 450 500 550
Switching frequency(4) RRT = 13 kΩ 1230 1370 1500
VRAMP Ramp amplitude (peak-to-peak) VVDD/10 V
VVAL Valley voltage 1.22 V
SYNCHRONIZATION
VSYNCH SYNC high-level threshold(2) 2 V
VSYNCL SYNC low-level threshold(2) 0.8 V
tSYNC Minimum SYNC pulse width(1) 100 ns
ƒSYNC Maximum PWM frequency for SYNC(1) 1500 kHz
Minimum PWM frequency for SYNC(1) 200
SYNC frequency range (increase from nominal oscillator frequency)(1) –20% 20%
PWM
VOH(pwm) PWM high-level output voltage ILOAD = 500 µA 4.5 V
VOL(pwm) PWM low-level output voltage ILOAD = 500 µA 0.5 V
tOFF(min) Minimum off-time 100 ns
tON(min) Minimum pulse 90 ns
SOFT-START
tSS Soft-start time(7) Factory default settings 2.7 ms
Programmable range(1) 0.6 9 ms
Accuracy over range(1) –15% 15%
tON(dly) Turn-on delay time(1) Factory default settings 0 ms
tOFF(dly) Turn-off delay time(1) Factory default settings 0 ms

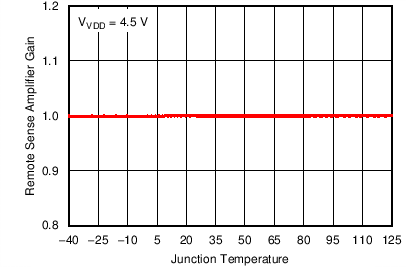

REMOTE SENSE AMPLIFIER
BW Closed-loop bandwidth(1) 2 MHz
VDIFFO(max) Maximum DIFFO output voltage 4.7 V
VDIFFO(err) Error voltage from DIFFO1 to (VSNS1– GSNS1) (VSNS1– GSNS1) = 1.0 V –6 6 mV
(VSNS1– GSNS1) = 3.6 V –19 19
IDIFFO Sourcing 1 mA
Sinking 1
CURRENT SENSING AMPLIFIER
VCS(mg) Differential input voltage linear range (VCSxP – VCSxN), non-smart power mode 0 60 mV
(VCSxP – VCSxN), smart power mode 0 600
VCS(cmr) Input common-mode range Non-smart power mode 0 3.6 V
VCS(cm) Input common-mode voltage Smart power mode 1.24 V
ACS Current sensing gain CHx_CSGAIN_SEL= 20 V/V(5), non-smart power mode 10 V/V
CHx_CSGAIN_SEL= 20 V/V(5), smart power mode 1
fCO Closed loop bandwidth(1) 0.66 MHz
VCS(chch) Amplifier output difference between two channels(6) IPHASE = 20 A, IOUT_CAL_GAIN = 0.503 mΩ –6% 6%
CURRENT LIMIT
tOFF(oc) Off-time between restart attempts Hiccup mode 7 × tSS ms
IOC(flt) Output peak current overcurrent fault threshold Factory default settings 40 A
Programmable range 3 50
IOC(warn) Output peak current overcurrent warning threshold Factory default settings 37 A
Programmable range 2 49
IOC(acc) Output peak current overcurrent fault accuracy IOUT = 40 A, IOUT_CAL_GAIN = 0.503 mΩ –10% 10%
Output peak current overcurrent warning accuracy IOUT = 37 A, IOUT_CAL_GAIN = 0.503 mΩ –10% 10%
PGOOD
VFBPGH FB PGOOD high threshold Factory default settings 642 mV
VFBPGL FB PGOOD low threshold Factory default settings 558 mV
VPG(acc) PGOOD accuracy over range –4% 4%
Vpg(hyst) FB PGOOD hysteresis voltage 15 28 45 mV
RPGOOD PGOOD pull-down resistance VFB = 0 V, IPGOOD = 5 mA 50 Ω
IPGOOD(lk) PGOOD pin leakage current VFB = 600 mV, VPGOOD = 5 V 20 µA
tPGDELAY PGOOD delay time after soft-start sequence is complete Factory default settings 2 ms
OUTPUT OVERVOLTAGE/UNDERVOLTAGE
VFBOV FB pin over voltage threshold Factory default settings 700 mV
VFBUV FB pin under voltage threshold Factory default settings 528 mV
VUVOV(acc) FB UV/OV accuracy over range –4% 4%
OUTPUT VOLTAGE TRIMMING AND MARGINING
VFBTM(step) Resolution of FB steps with trim and margin 2 mV
tFBTM(step) Transition time per trim or margin step After soft-start time 30 µs
VFBTM(max) Maximum FB voltage with trim or margin only 660 mV
VFBTM(min) Minimum FB voltage with trim or margin only 480 mV
VFBTM(rng) FB voltage range with trim and margin combined 420 660 mV
VFBMH Margin high FB pin voltage Factory default settings 660 mV
VFBML Margin low FB pin voltage Factory default settings 540 mV
OUTPUT VOLTAGE AT AVS MODE
VFBAVS(step) Resolution of FB steps at AVS mode 2 mV
VFBAVS(max) Maximum FB voltage at AVS mode 1.5 V
VFBAVS(min) Minimum FB voltage at AVS mode 500 mV
AVS INTERFACE
VVIO ASIC I/O voltage(1) 1.8 2.5 V
VIH(avs) High-level input voltage, AVSCLK, AVSDATA VVIO = 2.5 V 1.75 V
VVIO = 1.8 V 1.26
VIL(avs) Low-level input voltage, AVSCLK, AVSDATA VVIO = 2.5 V 0.75 V
VVIO = 1.8 V 0.54
IIH(avs) High-level input current, AVSCLK, AVSDATA(1) –50 50 µA
IIL(avs) Low-level input current, AVSCLK, AVSDATA(1) –50 50 µA
fAVS AVS clock frequency range 10 30 MHz
MEASUREMENT SYSTEM
MVOUT(rng) VOUT measurement range 0.5 3.6 V
MVOUT(acc) VOUT measurement accuracy(6) VOUT = 1 V, 0°C ≤ TJ ≤ 125°C –0.8% 0.8%
MIOUT(rng) IOUT measurement range(9) 0 50 A
MIOUT(acc) IOUT measurement accuracy(6) IOUT ≥ 20 A, IOUT_CAL_GAIN = 0.503 mΩ,
0°C ≤ TJ ≤ 125°C, smart power mode
–640 640 mA
PMBus INTERFACE(8)
VIH High-level input voltage, CLK, DATA, CNTL 2.1 V
VIL Low-level input voltage, CLK, DATA, CNTL 0.8
IIH High-level input current, CLK, DATA, CNTL Pin voltage = 3.3 V –10 10 µA
IIL Low-level input current, CLK, DATA, CNTL Pin voltage = 0 V –10 10
VOL Low-level output voltage, DATA, SMBALRT IOUT = 4 mA 0.4 V
IOH High-level output open drain leakage current, DATA, SMBALRT VOUT = VBP5 0 10 µA
IOL Low-level output open drain current, DATA, SMBALRT 4 mA
COUT Pin capacitance, CLK, DATA(1) 1 pF
fPMB PMBus operating frequency range Slave mode 10 400 kHz
tBUF Bus free time between START and STOP(1) 1.3 µs
tHD:STA Hold time after repeated START(1) 0.6
tSU:STA Repeated START set-up time(1) 0.6
tSU:STO STOP setup time(1) 0.6
tHD:DAT Data hold time(1) Receive mode 0 ns
Transmit mode 300
tSU:DAT Data setup time(1) 100
tTIMEOUT Error signal/detect(1) 25 35 ms
tLOW:MEXT Cumulative clock low master extend time(1) 10 ms
tLOW:SEXT Cumulative clock low slave extend time(1) 25 ms
tLOW Clock low time(1) 1.3 µs
tHIGH Clock high time(1) 0.6 µs
tFALL CLK/DATA fall time(1) 300 ns
tRISE CLK/DATA rise time(1) 300
tRETENTION Retention of configuration parameters(1) TJ = 25°C 100 Year
Write_cycles Number of nonvolatile erase/write cycles(1) TJ = 25°C 20 K cycle
PMBus ADDRESSING
IADD Address pin bias current 8.775 9.75 10.725 µA
INITIALIZATION TIME
tINI Initialization time after BP3 voltage is ready(1) 1 ms
TEMPERATURE SENSE AND THERMAL SHUTDOWN
TSD Junction shutdown temperature(1) 160 °C
THYST Thermal shutdown hysteresis(1) 20
ITSNS(ratio) Ratio of bias current flowing out of TSNS pin, state 2 to state 1 Non-smart power mode 9.7 10 10.3
ITSNS(1) State 1 current out of TSNS pin Non-smart power mode 10 µA
ITSNS(2) State 2 current out of TSNS pin Non-smart power mode 100 µA
TSNS(acc) External temperature sense accuracy(6) –40°C ≤ TSNS ≤ 125°C, Non-smart power mode –4.5 4.5 °C
–40°C ≤ TSNS ≤ 125°C, Smart power mode –3 3
TOT(flt) Overtemperature fault limit(1) Factory default settings 145 °C
OT fault limit range(1) 120 165
TOT(warn) Overtemperature warning limit(1) Factory default settings 125 °C
OT warning limit range(1) 100 140
TOT(step) OT fault/warning step 1 °C
TOT(hys) OT fault/warning hysteresis(1) 20 °C
(1) Specified by design. Not production tested.
(2) The external SYNC pin signal must be a square waveform with 50% duty cycle.
(3) Hysteresis of at least 150 mV is specified by design.
(4) Apply to 1-,2- or 4-phase operation. For 3-phase operation, the switching frequency is 33% higher than the value in the table.
(5) Refer to PMBus command MFR_SPECIFIC_21 (OPTIONS) (E5h) section.
(6) Performance verified under application conditions.
(7) The soft-start time is the time that the internal reference voltage rises from 0 V to 600 mV.
(8) The device supports both 100-kHz and 400-kHz bus speeds. The PMBus timing parameters in this table is for operation at 400 kHz. If the PMBus operating frequency is 100 kHz, refer to SMBus specification for timing parameters.
(9) The actual measurement range is limited by IOUT_CAL_GAIN command. See the IOUT_CAL_GAIN (38h) section.

6.6 Typical Characteristics

Smart-power mode
Figure 1. Non-Switching Quiescent Current vs Junction Temperature
Figure 3. Reference Voltage vs Junction Temperature
Figure 5. Input Turn-On Voltage vs. Junction Temperature
VOUT = 600 mV Default threshold settings
Figure 7. Overvoltage and Undervoltage Thresholds vs Junction Temperature
Figure 9. Timing Resistance vs Switching Frequency
Figure 2. Switching Frequency vs Junction Temperature
Figure 4. Remove Sense Amplifier Gain vs Junction Temperature
Figure 6. Input Turn-Off Voltage vs. Junction Temperature
Figure 8. BP5 Voltage vs Junction Temperature
