SLVSCB6E November   2013  – December 2017 TPS56520 , TPS56720 , TPS56920 , TPS56C20

PRODUCTION DATA.

  1. 1 Features
  2. 2 Applications
  3. 3 Description
  4. 4 Revision History
  5. 5 Description (Continued)
  6. 6 Pin Configuration and Functions
  7. 7 Specifications
    1. 7.1 Absolute Maximum Ratings
    2. 7.2 ESD Ratings
    3. 7.3 Recommended Operating Conditions
    4. 7.4 Thermal Information
    5. 7.5 Electrical Characteristics
    6. 7.6 Timing Requirements
    7. 7.7 Switching Characteristics
    8. 7.8 Typical Characteristics
  8. 8 Detailed Description
    1. 8.1 Overview
    2. 8.2 Functional Block Diagram
    3. 8.3 Feature Description
      1. 8.3.1 PWM Operation
      2. 8.3.2 PWM Frequency and Adaptive On-Time Control
      3. 8.3.3 VIN and Power VIN Terminals (VIN and PVIN)
      4. 8.3.4 Auto-Skip Eco-mode™ Control
      5. 8.3.5 Soft Start and Pre-Biased Soft Start
      6. 8.3.6 Power Good
      7. 8.3.7 Overcurrent Protection
      8. 8.3.8 UVLO Protection
    4. 8.4 Device Functional Modes
      1. 8.4.1 Operation at Light Loads
    5. 8.5 Programming
      1. 8.5.1 I2C Interface
      2. 8.5.2 I2C Protocol
      3. 8.5.3 I2C Chip Address Byte
    6. 8.6 Register Maps
      1. 8.6.1 I2C Register Address Byte
      2. 8.6.2 Output Voltage Registers
      3. 8.6.3 CheckSum Bit (VOUT Register Only)
      4. 8.6.4 Control Registers
      5. 8.6.5 Latchoff
  9. 9 Applications and Implementation
    1. 9.1 Application Information
    2. 9.2 Typical Application
      1. 9.2.1 TPS56520, TPS56720 and TPS56920, 5-A, 7-A, and 9-A Converter
        1. 9.2.1.1 Design Requirements
        2. 9.2.1.2 Detailed Design Procedure
          1. 9.2.1.2.1 Output Voltage Resistors Selection
            1. 9.2.1.2.1.1 Output Filter Selection
          2. 9.2.1.2.2 Input Capacitor Selection
          3. 9.2.1.2.3 Bootstrap Capacitor Selection
          4. 9.2.1.2.4 VREG5 Capacitor Selection
      2. 9.2.2 TPS56520, TPS56720 and TPS56920 Application Performance Curves
      3. 9.2.3 TPS56C20 12-A Converter
        1. 9.2.3.1 Design Requirements
        2. 9.2.3.2 Design Procedure
        3. 9.2.3.3 TPS56C20 Application Performance Curves
  10. 10Power Supply Recommendations
  11. 11Layout
    1. 11.1 Layout Guidelines
    2. 11.2 Layout Example
  12. 12Device and Documentation Support
    1. 12.1 Device Support
      1. 12.1.1 Development Support
    2. 12.2 Documentation Support
      1. 12.2.1 Related Documentation
    3. 12.3 Related Links
    4. 12.4 Trademarks
    5. 12.5 Electrostatic Discharge Caution
    6. 12.6 Glossary
  13. 13Mechanical, Packaging, and Orderable Information

Package Options

Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • PWP|24
Thermal pad, mechanical data (Package|Pins)
Orderable Information

7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1) (2)
VALUE UNIT
MIN MAX
Input voltage VIN,PVIN, EN –0.3 20 V
VBST –0.3 26
VBST (10ns transient) –0.3 28
VFB, VOUT, SDA, SCL –0.3 3.6
A0, A1 –0.3 6.5
VBST–SW –0.3 6.5
SW –2 20
SW (10ns transient) –3 22
Overvoltage VREG5,SS,PGOOD –0.3 6.5 V
PGND –0.3 0.3
Sink Current PGOOD –0.1 5 mA
TJ Operating Junction temperature –40 150 °C
TSTG Storage temperature –55 150 °C
(1) These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions.
(2) All voltages are with respect to IC GND terminal.

7.2 ESD Ratings

VALUE UNIT
Electrostatic discharge(1) Human Body Model (HBM)(2) ±2000 V
Charged Device Model (CDM)(3) ±500
(1) Electrostatic discharge (ESD) to measure device sensitivity and immunity to damage caused by assembly line electrostatic discharges into the device.
(2) Level listed above is the passing level per ANSI/ESDA/JEDEC JS-001. JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(3) Level listed above is the passing level per EIA-JEDEC JESD22-C101. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN Operating input voltage 4.5 17 V
VOUT Output voltage 0.6 1.87 V
IOUT Output current TPS56520 0 5 A
TPS56720 0 7
TPS56920 0 9
TPS56C20 0 12
TJ Operating junction temperature range –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TPS56520/720/920 TPS56C20 UNIT
PWP (20) PWP (24)
θJA Junction-to-ambient thermal resistance 36.8 32.8 °C/W
θJCtop Junction-to-case (top) thermal resistance 22.5 16
θJB Junction-to-board thermal resistance 19.5 14.2
ψJT Junction-to-top characterization parameter 0.6 0.4
ψJB Junction-to-board characterization parameter 19.2 14
θJCbot Junction-to-case (bottom) thermal resistance 1.4 0.8
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

TJ = –40°C to 125°C, VIN=4.5V to 17V, PVIN=4.5V to 17V (Unless otherwise noted)
PARAMETER CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE
VIN Operating input voltage VIN, PVIN 4.5 17 V
IIN VIN supply current 25°C, EN=5V, VFB=0.8V (non switching), VIN=12V 920 1150 µA
IVINSDN VIN shutdown current 25°C, EN=0V, VIN=12V 140 200 µA
FEEDBACK VOLTAGE
VVFB VFB voltage 25°C, external regulation mode, PVIN=12V, VOUT=1.1V, IOUT=50mA, pulse skipping 0.594 0.6 0.606 V
25°C, external regulation mode, VOUT=1.1V, continuous current mode 0.594 0.6 0.606 V
External regulation mode, VOUT=1.1V, continuous current mode 0.591 0.6 0.609 V
VOUT VOLTAGE (INTERNAL VID CONTROL)
VVOUT VOUT voltage 25°C, relative to target VOUT, PVIN=12V, VOUT=0.6V~1.87V, LOUT=1.5µH –1% 0% 1% Target VOUT
Relative to target VOUT, PVIN=12V, LOUT=1.5µH –1.5% 0% 1.5%
Relative to target VOUT, LOUT=1.5µH –2% 0% 2%
VREG5 OUTPUT
VVREG5 VREG5 Output Voltage 25°C , 6V< VIN <17V, IVREG5 = 5mA, VFB=1V 5.2 5.5 5.7 V
MOSFET
rDS(on)H High side switch resistance TPS56520 VBST-SW=5.5V 44 mΩ
rDS(on)L Low side switch resistance TPS56520 VIN=12V 32 mΩ
rDS(on)H High side switch resistance TPS56720 VBST-SW=5.5V 30 mΩ
rDS(on)L Low side switch resistance TPS56720 VIN=12V 24 mΩ
rDS(on)H High side switch resistance TPS56920 VBST-SW=5.5V 26 mΩ
rDS(on)L Low side switch resistance TPS56920 VIN=12V 19 mΩ
rDS(on)H High side switch resistance TPS56C20 VBST-SW=5.5V 13 mΩ
rDS(on)L Low side switch resistanceTPS56C20 VIN=12V 9 mΩ
POWER GOOD
VPGOODTH PGOOD threshold VOUT or VFB falling (fault) VO=1.1V 80%
VOUT or VFB rising (good) VO=1.1V 85%
VOUT or VFB rising (fault) VO=1.1V 115%
VOUT or VFB falling (good) VO=1.1V 110%
IPGOODDLY PGOOD sink current VPGOOD=0.5V 3.15 5.2 mA
LOGIC THRESHOLD
VENH EN H-level threshold voltage 1.85 V
VENL EN L-level threshold voltage 0.6 V
CURRENT LIMIT(1)
IOCL Current Limit TPS56520 LOUT= 1.5µH 5.6 9 A
Current Limit TPS56720 LOUT= 1.5µH 7.8 12 A
Current Limit TPS56920 LOUT= 1.5µH 10 15 A
Current Limit TPS56C20 LOUT= 1.5µH 13.2 20 A
IOCLR Reverse Current Limit TPS56520 LOUT= 1.5µH 1.25 5.3 A
Reverse Current Limit TPS56720 LOUT= 1.5µH 1.75 6.5 A
Reverse Current Limit TPS56920 LOUT= 1.5µH 2.25 6.2 A
Reverse Current Limit TPS56C20 LOUT= 1.5µH 3 8.2 A
OUTPUT UNDERVOLTAGE PROTECTION (UVP)
VOVP Output OVP trip threshold OVP detect (L>H) 125% VOUT
VUVP Output UVP trip threshold UVP detect (H>L) 60% VOUT
THERMAL SHUTDOWN
TSDN Thermal shutdown Threshold Shutdown temperature(1) 160 °C
Hysteresis(1) 23 °C
Pre-thermal warning threshold 130 °C
UVLO
UVLO UVLO Threshold Wake up to VREG5 voltage 3.45 3.9 4.2 V
Hysteresis VREG5 voltage 0.45 0.56 0.61 V
(1) Ensured by design. Not production tested.

7.6 Timing Requirements

MIN TYP MAX UNIT
SOFT START
Issc SS charge current VSS=0.5V , 25 °C –6.4 –6 –5.6  µA
IssD SS discharge current VSS=0.5V 0.14 0.2  0.26 mA
SERIAL INTERFACE(1) (2) (3)
VIL LOW level input voltage 0.6 V
VIH HIGH level input voltage 1.8 V
Vhys Hysteresis of Schmitt trigger inputs 0.11 V
VOL LOW level output voltage (Open drain, 3mA sink current) 0.4 V
tSP Pulse width of spikes suppressed by input filter 32 ns
fscl SCL clock frequency 400 kHz
tHD;STA Hold time (repeated) START condition. 0.6 us
tLOW LOW period of SCL clock 1.3 us
tHIGH HIGH period of SCL clock 0.6 us
tSU;STA Set-up time for a repeated START condition 0.6 us
tHD;DAT Data Hold time 50 900 ns
tSU;DAT Data set-up time 100 ns
tr Rise time (SDA or SCL) 20+0.1Cb(4) 300 ns
tf Fall time (SDA or SCL) 20+0.1Cb(4) 300 ns
tSU;STO Set-up time for STOP condition 0.6 us
tBUF Bus free time between STOP and START condition 1.3 us
Cb Capacitive load for each bus line 400 pF
(1) Ensured by design. Not production tested.
(2) Refer to Figure 1 below for I2C Timing Definitions
(3) Cb = capacitance of bus line in pF
TPS56C20 TPS56920 TPS56720 TPS56520 I2C_timing_SLVSCB6.gif Figure 1. I2C Timing Definitions (reproduced from Phillips I2C spec Version 1.1)

7.7 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ON-TIME TIMER CONTROL
TON SW On Time SW=12V, VOUT=1.1V 180 ns
TOFF(1) SW Minimum off time 25°C, VFB= 0.5V 285 ns
(1) Ensured by design. Not production tested.

7.8 Typical Characteristics

VIN = 12 V, VOUT = 1.0 V, Ta = 25 °C, unless otherwise specified.

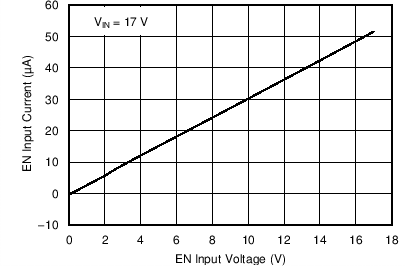

TPS56C20 TPS56920 TPS56720 TPS56520 C003_SLVSCB6.png
Figure 2. TPS56X20 Enable Input Current
TPS56C20 TPS56920 TPS56720 TPS56520 C002_SLVSCB6.png
Figure 4. TPS56520 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C005_SLVSCB6.png
Figure 6. TPS56520 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C007_SLVSCB6.png
Figure 8. TPS56520 Soft Start Charging Current

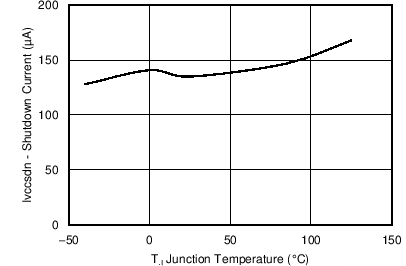

TPS56C20 TPS56920 TPS56720 TPS56520 C009_SLVSCB6.png
Figure 10. TPS56720 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C012_SLVSCB6.png
Figure 12. TPS56720 Switching Frequency,
Eco-mode™ = OFF

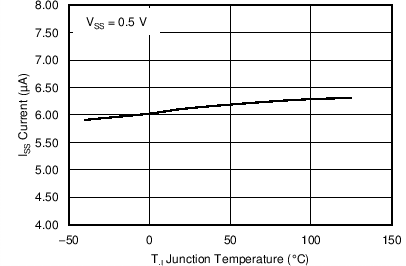

TPS56C20 TPS56920 TPS56720 TPS56520 C014_SLVSCB6.png
Figure 14. TPS56720 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C016_SLVSCB6.png
Figure 16. TPS56920 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C019_SLVSCB6.png
Figure 18. TPS56920 Switching Frequency,
Eco-mode™ = OFF

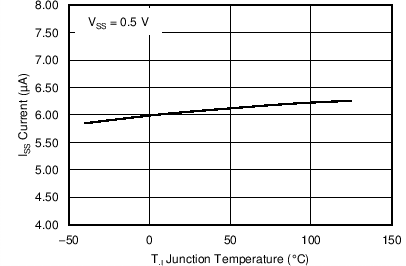

TPS56C20 TPS56920 TPS56720 TPS56520 C021_SLVSCB6.png
Figure 20. TPS56920 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C023_SLVSCB6.png
Figure 22. TPS56C20 Shutdown Quiescent Current

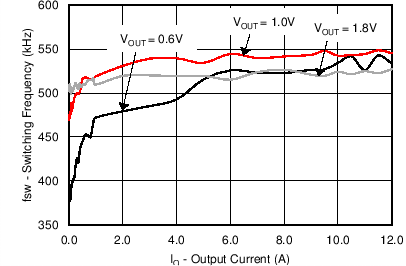

TPS56C20 TPS56920 TPS56720 TPS56520 C026_SLVSCB6.png
Figure 24. TPS56C20 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C028_SLVSCB6.png
Figure 26. TPS56C20 Soft Start Charging Current

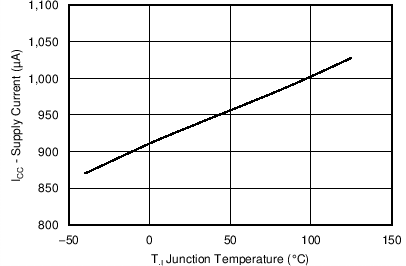

TPS56C20 TPS56920 TPS56720 TPS56520 C001_SLVSCB6.png
Figure 3. TPS56520 Quiescent Current

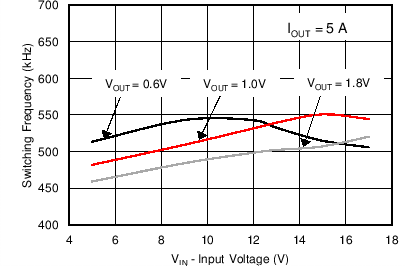

TPS56C20 TPS56920 TPS56720 TPS56520 C004_SLVSCB6.png
Figure 5. TPS56520 Switching Frequency
TPS56C20 TPS56920 TPS56720 TPS56520 C006_SLVSCB6.png
Figure 7. TPS56520 Feedback Voltage
TPS56C20 TPS56920 TPS56720 TPS56520 C008_SLVSCB6.png
Figure 9. TPS56720 Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C011_SLVSCB6.png
Figure 11. TPS56720 Switching Frequency

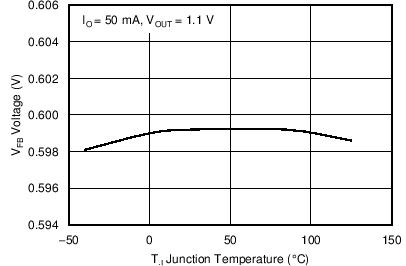

TPS56C20 TPS56920 TPS56720 TPS56520 C013_SLVSCB6.png
Figure 13. TPS56720 Feedback Voltage
TPS56C20 TPS56920 TPS56720 TPS56520 C015_SLVSCB6.png
Figure 15. TPS56920 Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C018_SLVSCB6.png
Figure 17. TPS56920 Switching Frequency
TPS56C20 TPS56920 TPS56720 TPS56520 C020_SLVSCB6.png
Figure 19. TPS56920 Feedback Voltage
TPS56C20 TPS56920 TPS56720 TPS56520 C022_SLVSCB6.png
Figure 21. TPS56C20 Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C025_SLVSCB6.png
Figure 23. TPS56C20 Switching Frequency
TPS56C20 TPS56920 TPS56720 TPS56520 C027_SLVSCB6.png
Figure 25. TPS56C20 Feedback Voltage
