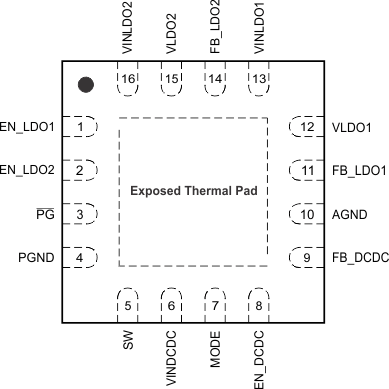

Pin Configuration and Functions

RTE Package
16-Pin WQFN With Exposed Thermal Pad
Top View
TPS65000-Q1 po_SLVSC45.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
AGND 10 Analog ground – Star back to PGND as close to the IC as possible
EN_DCDC 8 I Enable DC-DC converter
EN_LDO1 1 I Enable LDO1
EN_LDO2 2 I Enable LDO2
FB_DCDC 9 I Voltage to DC-DC error amplifier
FB_LDO1 11 I Voltage to LDO1 error amplifier
FB_LDO2 14 I Voltage to LDO2 error amplifier
MODE 7 I Selects forced-PWM or PWM-to-PFM automatic-transition mode
PG 3 O Open-drain active-low power-good output
PGND 4 Power ground – connected to the thermal pad
SW 5 O Switch pin – connect inductor here
VINDCDC 6 I Input voltage to DC-DC converter and all other control blocks
VINLDO1 13 I Input voltage to LDO1
VINLDO2 16 I Input voltage to LDO2
VLDO1 12 O LDO1 output voltage
VLDO2 15 O LDO2 output voltage
EP Exposed thermal pad
