6.8 Typical Characteristics for Buck 3

TA = 25°C, VIN = 12 V, VO = 3.3 V, L = 4.7 µH, CO = 68 µF, ƒSW = 500 Hz (unless otherwise noted)

L = 4.7 µH, 27 mΩ

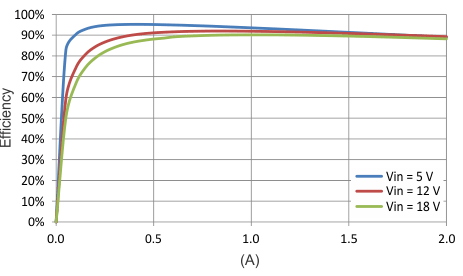

Figure 6-13 Efficiency, Forced PWM
L = 4.7 µH, 27 mΩ
Figure 6-15 Efficiency, LOW_P Mode, 0 to 500 mA
GUID-6A4B637A-80E5-4FD5-B14B-6D9BF1885442-low.gifFigure 6-17 Line Regulation, Load = 1 A
L = 4.7 µH, 27 mΩ

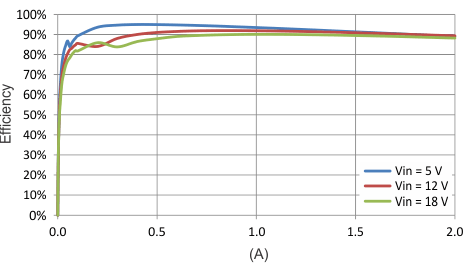

Figure 6-14 Efficiency, LOW_P Mode
GUID-56092DCA-0884-4519-896C-848E8F3DACF2-low.gifFigure 6-16 Load Regulation, 25°C, 1% 100-PPM Resistor

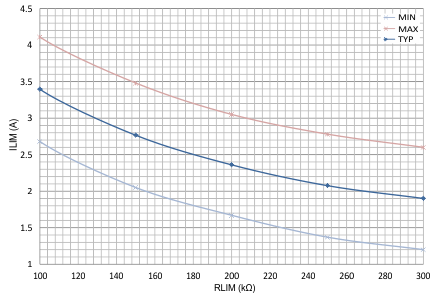

GUID-70891A09-56CE-4BB7-9320-FF7FA11C0FF8-low.gifFigure 6-18 Current Limit VIN = 12 V, ƒSW = 500 KHz
