Layout Guidelines

As in every switch-mode-supply design, general layout rules apply:

  • Use a solid ground-plane for the power ground (PGND)
  • Connect those grounds at a star-point that is located ideally underneath the device.
  • Place input capacitors as close as possible to the input pins of the device. This placement is paramount and more important than the output-loop.
  • Place the inductor and output capacitor as close as possible to the phase node (or switch-node) of the device.
  • Keep the loop-area formed by the phase-node, inductor, output-capacitor, and PGND as small as possible.
  • For traces and vias on power-lines, keep inductance and resistance as small as possible by using wide traces. Avoid switching layers but, if needed, use plenty of vias.

The goal of these guidelines is a layout that minimizes emissions, maximizes EMI immunity, and maintains a safe operating area (SOA) for the device.

To minimize the spiking at the phase-node for both the high-side (VIN to SWx) and low-side (SWx to PGND), the decoupling of VIN is the most important guideline. Appropriate decoupling and thorough layout should ensure that the spikes never exceed 7V across the high-side and low-side FETs.

Figure 6-9 shows a set of guidelines regarding parasitic inductance and resistance that are recommended.

TPS65916 layout_parasitic_slvsco4.gifFigure 6-9 Parasitic Inductance and Resistance

Table 6-3 lists the maximum allowable parasitic (inductance measured at 100 MHz) and the achievable values in an optimized layout.

Table 6-3 Maximum Allowable Parasitic

CONNECTION MAXIMUM ALLOWABLE INDUCTANCE MAXIMUM ALLOWABLE RESISTANCE OPTIMIZED LAYOUT (EVM) INDUCTANCE OPTIMIZED LAYOUT (EVM) RESISTANCE
PowerPlane to CIN N/A N/A for SOA
Maintain a low resistance value for efficiency
N/A N/A for SOA
Maintain a low resistance value for efficiency
CIN to SMPSx_IN 0.5 nH 2 mΩ SMPS1 0.2 nH SMPS1 1.1 mΩ
SMPS2 0.2 nH SMPS2 1.6 mΩ
SMPS3 0.2 nH SMPS3 1.5 mΩ
SMPS4 0.2 nH SMPS4 1.8 mΩ
SMPS5 0.2 nH SMPS5 1.5 mΩ
CIN to PGND 0.5 nH 2 mΩ SMPS1 0.3 nH SMPS1 0.4 mΩ
SMPS2 0.3 nH SMPS2 0.4 mΩ
SMPS3 0.4 nH SMPS3 0.5 mΩ
SMPS4 0.3 nH SMPS4 0.6 mΩ
SMPS5 0.4 nH SMPS5 0.5 mΩ
SMPSx_SW to inductor N/A N/A for SOA
Maintain a low resistance value for efficiency
N/A SMPS1 1 mΩ
SMPS2 0.7 mΩ
SMPS3 1 mΩ
SMPS4 0.7 mΩ
SMPS5 1.4 mΩ
Inductor to COUT N/A N/A for SOA
Maintain a low resistance value for efficiency
N/A N/A for SOA
Maintain a low resistance value for efficiency
COUT to GND Use dedicated GND plane to keep inductance low 1 mΩ SMPS1 0.8 nH SMPS1 0.7 mΩ
SMPS2 0.6 nH SMPS2 0.8 mΩ
SMPS3 0.5 nH SMPS3 0.6 mΩ
SMPS4 0.4 nH SMPS4 0.6 mΩ
SMPS5 0.5 nH SMPS5 0.5 mΩ
GND (CIN) to GND (COUT) Use dedicated GND plane to keep inductance low 1 mΩ Use dedicated GND plane to keep inductance low

Texas Instruments recommends measuring the voltages across the high-side FET (voltage at SMPSx_IN versus SMPSx_SW) and the low-side FET (SMPSx_SW versus PGND) with a high bandwidth, high sampling-rate scope with a low-capacitance probe (ideally a differential probe). Measure the voltages as close as possible to the device pins and verify the amplitude of the spikes. A small-loop ground connection to PGND is essential.

When measuring the voltage difference between the SMPSx_IN and SMPSx_SW pins, there should be a maximum of 7 V when measuring at the pins. Similarly, when measuring the voltage difference between the SMPSx_SW and PGND pins, there should be a maximum of 7 V when measuring at the pins.

For more information on cursor-positioning, see Figure 6-10 and Figure 6-11.

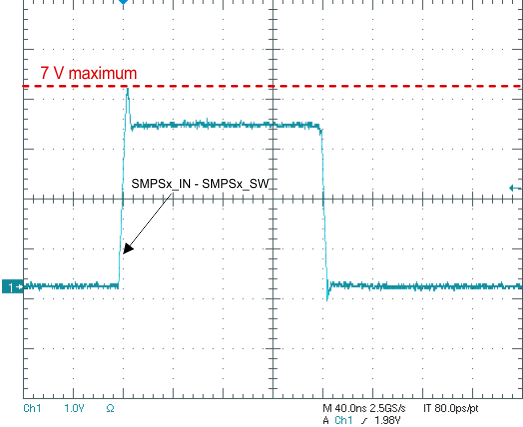

TPS65916 layout_hs_swcs095.gif
Measure across the high-side FET (SMPSx_IN – SMPSx_SW) as close to the IC as possible. The preferred measurement is with a differential probe. The negative side of the probe should be at SMPSx_SW and the positive side of the probe should measure SMPSx_IN. As shown in this image, the voltage across the high-side FET should not exceed 7 V. Repeat the measurement for all SMPSs in use.
Figure 6-10 Measuring the High-Side FET (Differentially)

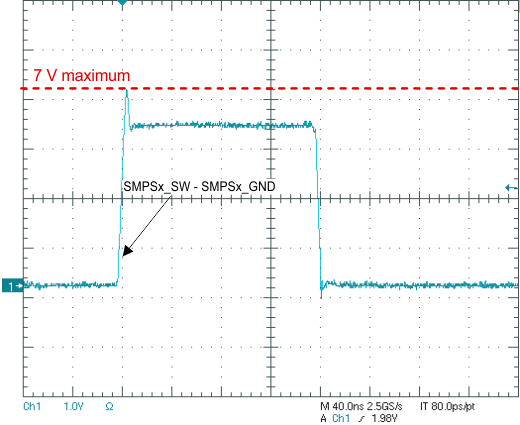

TPS65916 layout_ls_swcs095.gif
Measure across the low-side FET (SMPSx_SW – GND) as close to the IC as possible. The preferred measurement is with a differential probe. The negative side of the probe should be at GND and the positive side of the probe should measure SMPSx_SW. As shown in this image, the voltage across the low-side FET should not exceed 7 V.Repeat the measurement for all SMPSs in use.
Figure 6-11 Measuring the Low-Side FET (Differentially)
