Specifications

Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain to-source voltage VGS = 0 V, ID = 250 μA 40 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 32 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.5 1.8 2.4 V
RDS(on) Drain-to-source on resistance VGS = 4.5 V, ID = 19 A 4.1 5.3
VGS = 10 V, ID = 19 A 2.8 3.4
gfs Transconductance VDS = 4 V, ID = 19 A 89 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 20 V, ƒ = 1 MHz 3300 4280 pF
Coss Output capacitance 333 433 pF
Crss Reverse transfer capacitance 178 231 pF
RG Series gate resistance 0.9 1.8 Ω
Qg Gate charge total (4.5 V) VDS = 20 V, ID = 19 A 23 30 nC
Qg Gate charge total (10 V) 45 59 nC
Qgd Gate charge gate-to-drain 8.8 nC
Qgs Gate charge gate-to-source 9.1 nC
Qg(th) Gate charge at Vth 5.8 nC
Qoss Output charge VDS = 20 V, VGS = 0 V 15 nC
td(on) Turnon delay time VDS = 20 V, VGS = 10 V,
IDS = 19 A, RG = 0
6 ns
tr Rise time 12 ns
td(off) Turnoff delay time 21 ns
tf Fall time 4 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 19 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse recovery charge VDS= 20 V, IF = 19 A,
di/dt = 300 A/μs
12 nC
trr Reverse recovery time 12 ns

Thermal Information

TA = 25°C (unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 1.3 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 50 °C/W
RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in
(3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.
CSD18513Q5A M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 in2 (6.45 cm2) of
2-oz (0.071-mm) thick Cu.
CSD18513Q5A M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of
2-oz (0.071-mm) thick Cu.

Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD18513Q5A D001_SLPS623.png

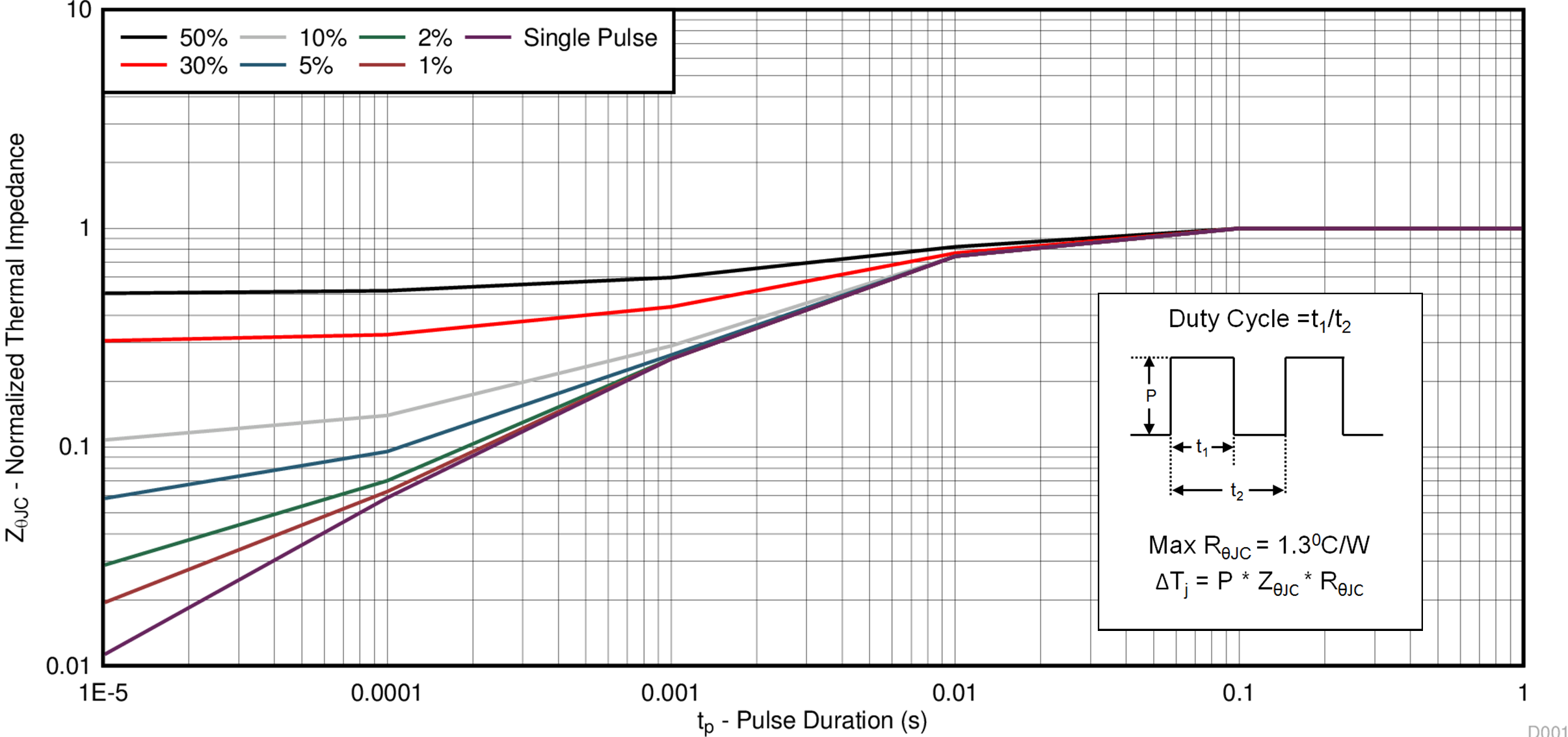

Figure 1. Transient Thermal Impedance
CSD18513Q5A D002_SLPS623.gif

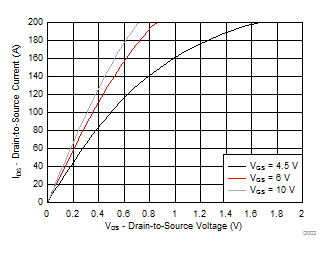

Figure 2. Saturation Characteristics
CSD18513Q5A D004_SLPS623A.gif
ID = 19 A, VDS = 20 V
Figure 4. Gate Charge
CSD18513Q5A D006_SLPS623.gif
ID = 250 µA

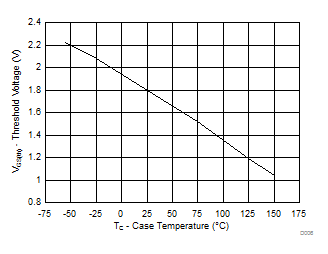

Figure 6. Threshold Voltage vs Temperature
CSD18513Q5A D008_SLPS623.gif
ID = 19 A
Figure 8. Normalized On-State Resistance vs Temperature
CSD18513Q5A D010_SLPS623.gif
Single pulse, max RθJC= 1.3°C/W
Figure 10. Maximum Safe Operating Area
CSD18513Q5A D012_SLPS623.gif
Max RθJC= 1.3°C/W
Figure 12. Maximum Drain Current vs Temperature
CSD18513Q5A D003_SLPS623.gif
VDS = 5 V

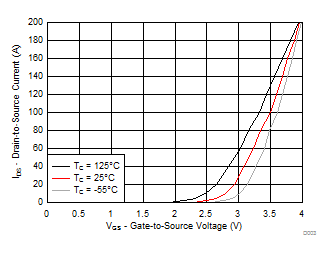

Figure 3. Transfer Characteristics
CSD18513Q5A D005_SLPS623.gif

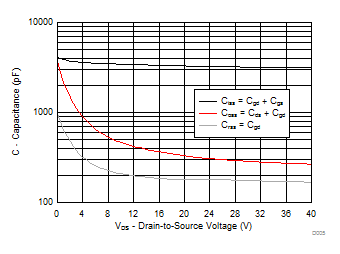

Figure 5. Capacitance
CSD18513Q5A D007_SLPS623.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18513Q5A D009_SLPS623.gif

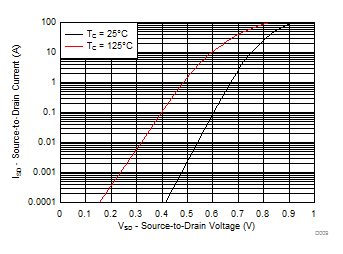

Figure 9. Typical Diode Forward Voltage
CSD18513Q5A D011_SLPS623.gif
Figure 11. Single Pulse Unclamped Inductive Switching
