JAJSG13G October 2012 – August 2018 MSP430FR5947 , MSP430FR59471 , MSP430FR5948 , MSP430FR5949 , MSP430FR5957 , MSP430FR5958 , MSP430FR5959 , MSP430FR5967 , MSP430FR5968 , MSP430FR5969 , MSP430FR59691

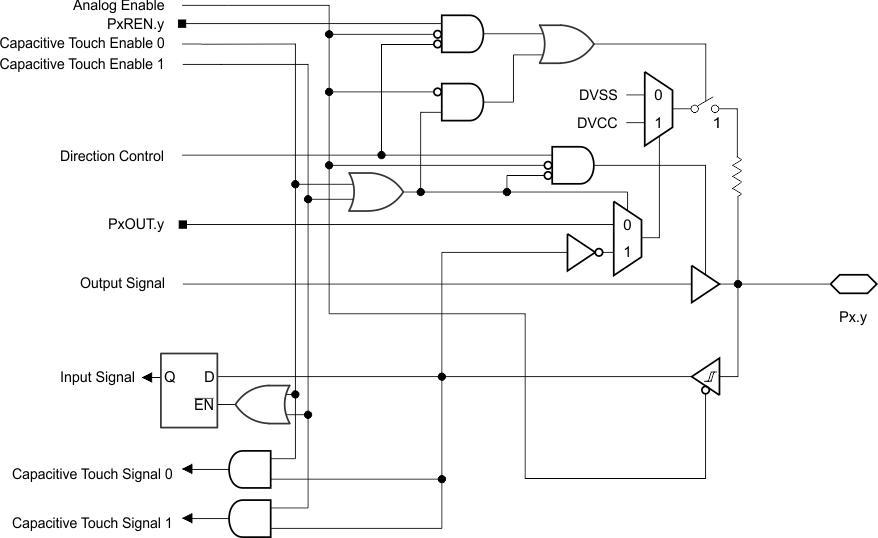

All port pins provide the Capacitive Touch I/O functionality as shown in Figure 6-2. The Capacitive Touch I/O functionality is controlled using the Capacitive Touch I/O control registers CAPTIO0CTL and CAPTIO1CTL as described in the MSP430FR58xx, MSP430FR59xx, and MSP430FR6xx Family User's Guide. The Capacitive Touch I/O functionality is not shown in the individual pin diagrams in the following sections.
NOTE:Functional representation only.
