10.2.3 Application Curves

TPS25982 HOTPLUG-NO-RLOAD-Apps.png
A.
COUT = 1.4 mF CdVdt = 10 nF RL(SU) = Open
Figure 54. Hot-Plug Start-Up Without Load on Output - dVdt Limited

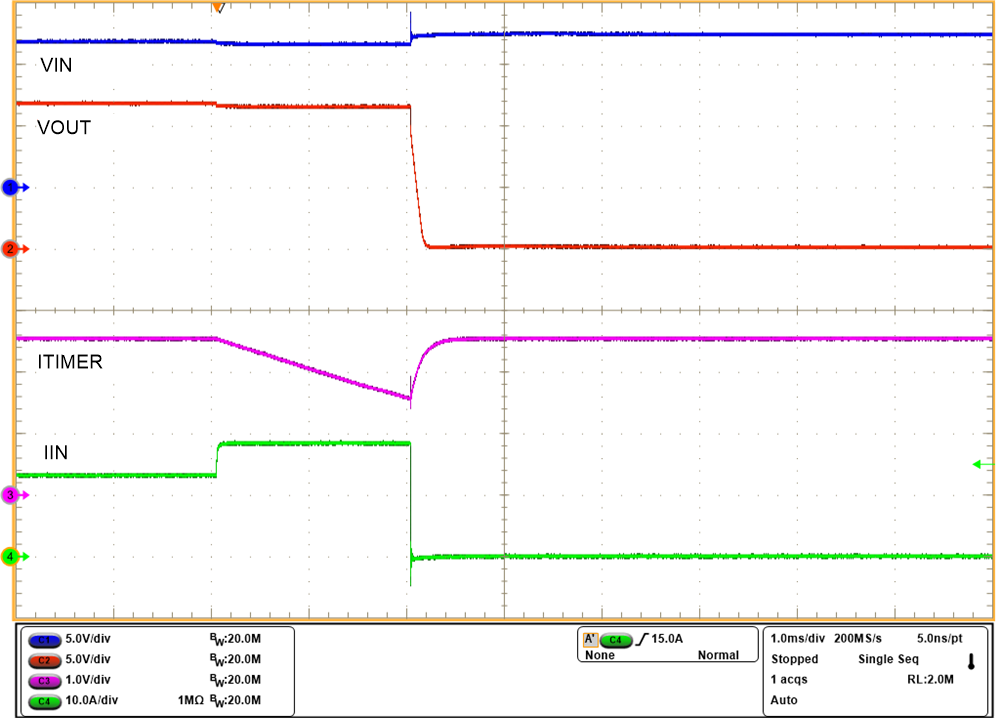

TPS25982 OVERLOAD-server-Apps.png
A.
RILIM = 100 Ω CITIMER = 4.7 nF
Figure 56. Circuit Breaker With Transient Overcurrent Blanking Interval of 2 ms
TPS25982 SHORTCIRCUIT-server-Apps.png
1.
RILIM = 100 Ω
Figure 58. Output Hard Short-Circuit While ON

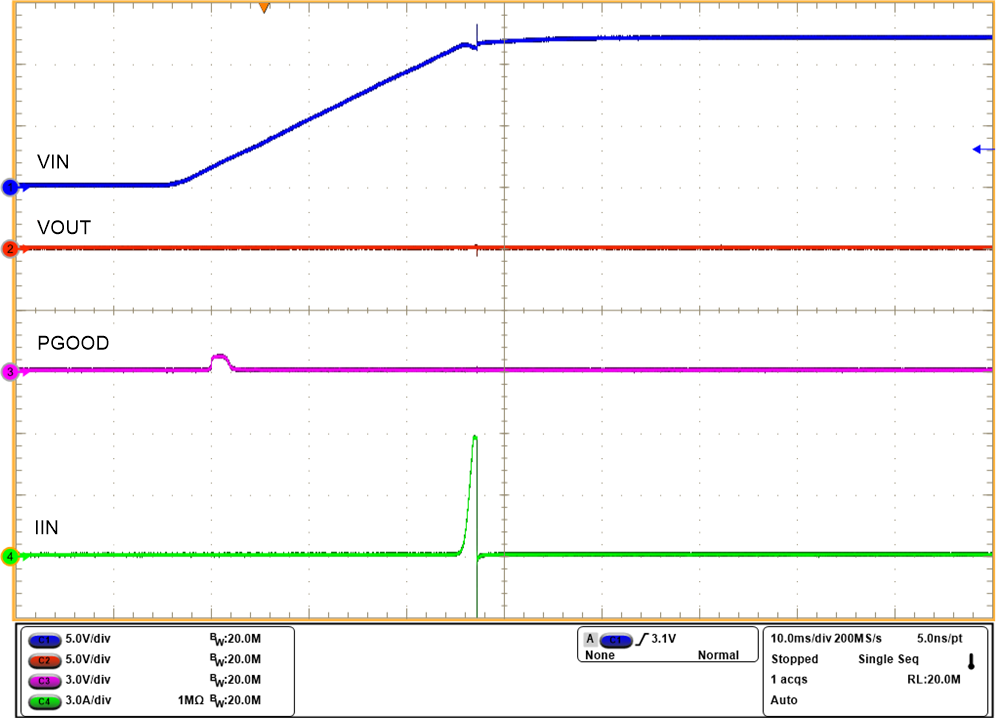

TPS25982 PowerintoSHORT-server-Apps.png
A.
Figure 60. Power-Up With Short-Circuit on Output
TPS25982 Handshake-success-Apps.png
A.
CLDSTRT = 0.1 μF
Figure 62. Successful Load Handshake (LDSTRT)
TPS25982 HOTPLUG-RLOAD-Apps.png
A.
COUT = 1.4 mF CdVdt = 10 nF RL(SU) = 10 Ω
Figure 55. Hot-Plug Start-Up With Load on Output - dVdt Limited
TPS25982 OVERLOAD-zoom-server-Apps.png
A.
RILIM = 100 Ω CITIMER = 4.7 nF CRETRY_DLY = 2.2 nF,
CNRETRY = 2.2 nF
Figure 57. Circuit Breaker - Auto-Retry 4 Times With Retry Delay of 100 ms
TPS25982 SHORTCIRCUIT-zoom-server-Apps.png
1.
RILIM = 100 Ω
Figure 59. Output Hard Short-Circuit While ON (Zoomed In)
TPS25982 PowerintoSHORT-zoom-server-Apps.png
1.
Figure 61. Power-Up With Short-Circuit on Output - Auto-Retry 4 Times With Retry Delay of 100 ms
TPS25982 Handshake-unsuccess-Apps.png
A.
CLDSTRT = 0.1 μF
Figure 63. Unsuccessful Load Handshake (LDSTRT)
