8.2.3 Application Curves

TA = 25°C, VIN = 12 V (unless otherwise noted)

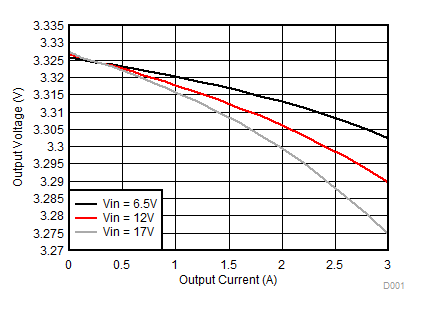

TPS563249 Load_reg_SLVSE54_2p0.gif
Figure 18. Load Regulation
TPS563249 Eff of 3.3Vout_2p0.gif
Figure 20. Efficiency
TPS563249 Line_reg_SLVSE54_2p0.gif
Figure 19. Line Regulation
TPS563249 Vin ripple 3A_2p0.png
Iout = 3 A
Figure 21. Input Voltage Ripple
TPS563249 Vout ripple 3A_2p0.png
Iout = 3 A
Figure 22. Output Voltage Ripple
TPS563249 load tran 0.6to2.4A 1.6A-us_2p0.png
Slew rate is 1.6 A/µS
Figure 24. Transient Response, 0.6 to 2.4 A
TPS563249 Startup by Vin at 0A_2p0.png
IOUT = 0 A
Figure 26. Start Up Relative to VIN
TPS563249 Shutdown by Vin at 0A_2p0.png
IOUT = 0 A
Figure 28. Shutdown Relative to VIN
TPS563249 Vout ripple 0A_2p0.png
IOUT = 0 A
Figure 23. Output Voltage Ripple
TPS563249 load tran 0to3A 1.6A-us_2p0.png
Slew rate is 1.6 A/µS
Figure 25. Transient Response, 0 to 3 A
TPS563249 Startup by EN at 3A_2p0.png
IOUT = 3 A
Figure 27. Start-Up Relative to EN
TPS563249 Shutdown by EN at 3A_2p0.png
IOUT = 3 A
Figure 29. Shutdown Relative to EN
