Typical Characteristics

at VDD = 3.3 V, INP = –50 mV to +50 mV, INN = HGND, fCLKIN = 20 MHz, and sinc3 filter with OSR = 256, 16-bit resolution (unless otherwise noted)

GUID-20201129-CA0I-CSVG-9MTQ-LLL70JKJZTH9-low.gifFigure 6-6 Input Bias Current vs Common-Mode Input Voltage
GUID-20201129-CA0I-99P4-NTDR-GJ87PDKDCCX4-low.gifFigure 6-8 Input Bias Current vs Temperature
GUID-20201129-CA0I-XBRN-L4ZF-B2DD8XXXXMJS-low.gifFigure 6-10 Offset Error vs Supply Voltage
GUID-20201129-CA0I-BL6V-TF5G-K13SB4PFSK9T-low.gifFigure 6-12 Gain Error vs Input Clock Frequency
GUID-20201129-CA0I-GWRG-W3PW-LZDZQZQ0VH06-low.gifFigure 6-14 Gain Error vs Temperature
GUID-20201129-CA0I-01WM-SFBZ-2G958C3T1GBR-low.gifFigure 6-16 Integral Nonlinearity vs
Input Clock Frequency

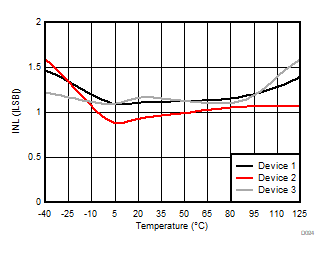

GUID-20201129-CA0I-HLQF-6JBF-MWT9ZMVCPJKW-low.gifFigure 6-18 Integral Nonlinearity vs Temperature
GUID-20201129-CA0I-L2HG-SZ2D-VV1GC1WGPFXB-low.gifFigure 6-20 Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Frequency
GUID-20201129-CA0I-Z0KG-P6DR-JJQHKRRK4PSK-low.gifFigure 6-22 Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Supply Voltage
GUID-20201129-CA0I-DSTT-HGSW-PPM0QQLTMJRX-low.gifFigure 6-24 Total Harmonic Distortion vs
Input Signal Amplitude

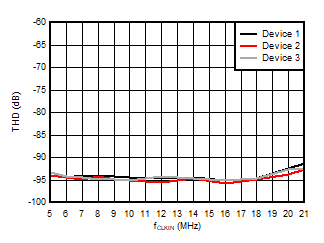

GUID-20201129-CA0I-1HXZ-VLFS-QQ6N0KZ81TP7-low.gifFigure 6-26 Total Harmonic Distortion vs
Input Clock Frequency
GUID-20201129-CA0I-FPHB-BMWL-MHD107HHFQ59-low.gifFigure 6-28 Total Harmonic Distortion vs Temperature
GUID-20201129-CA0I-J9HD-GXCQ-44XQLNTZ74JZ-low.gifFigure 6-30 Spurious-Free Dynamic Range vs Input Signal Frequency
GUID-20201129-CA0I-NNZ0-XMTF-DN8H5G8PPZJV-low.gifFigure 6-32 Spurious-Free Dynamic Range vs Supply Voltage
GUID-20201129-CA0I-7K1G-FV1C-3RLSGRNSRVZT-low.gifFigure 6-34 Output Frequency Spectrum With a 1-kHz Input Signal

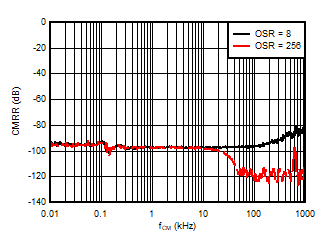

GUID-20201129-CA0I-ZQMP-72FZ-MDJBVMPH6XDW-low.gifFigure 6-36 Common-Mode Rejection Ratio vs
Input Signal Frequency
GUID-20201129-CA0I-FVR5-XPDG-Z40JSMBSVSW9-low.gifFigure 6-38 Supply Current vs Supply Voltage
GUID-20201129-CA0I-NZ5M-SG9W-TWRBCMDLBMNN-low.gifFigure 6-40 Supply Current vs Temperature
GUID-20201129-CA0I-NN40-3DNZ-HNXW2VZQ5S32-low.gifFigure 6-42 IH Derating vs Ambient Temperature
GUID-20201129-CA0I-KRD8-D2MK-MJTBJQQHXQNB-low.gifFigure 6-7 Input Bias Current vs Supply Voltage
GUID-20201129-CA0I-S3C0-H1ZZ-RJ1HGP33QP72-low.gifFigure 6-9 Offset Error vs Input Clock Frequency
GUID-20201129-CA0I-VXCF-DLVS-CFWNV7PWG1RF-low.gifFigure 6-11 Offset Error vs Temperature
GUID-20201129-CA0I-GHRL-CRXN-KK3LSJT95F7L-low.gifFigure 6-13 Gain Error vs Supply Voltage
GUID-20201129-CA0I-MQ4N-72LD-ZMLBGJFQMDHK-low.gifFigure 6-15 Integral Nonlinearity vs Input Voltage
GUID-20201129-CA0I-VLGK-WJX9-JTC991MSBH6S-low.gifFigure 6-17 Integral Nonlinearity vs
Supply Voltage
GUID-20201129-CA0I-JKPW-77QV-WWT05W4TWBF7-low.gifFigure 6-19 Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Amplitude
GUID-20201129-CA0I-HM45-K9FF-G5P7DGPXWJ7D-low.gifFigure 6-21 Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Clock Frequency
GUID-20201129-CA0I-S5WT-TCL2-S62XS3L5B9S4-low.gifFigure 6-23 Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Temperature
GUID-20201129-CA0I-FHP3-THFD-ZR1DCZWLRF22-low.gifFigure 6-25 Total Harmonic Distortion vs
Input Signal Frequency
GUID-20201129-CA0I-D07P-G3SL-8FXVTFDHSBJD-low.gifFigure 6-27 Total Harmonic Distortion vs
Supply Voltage
GUID-20201129-CA0I-RLTX-H2BJ-NPCM6JJTW64D-low.gifFigure 6-29 Spurious-Free Dynamic Range vs Input Signal Amplitude

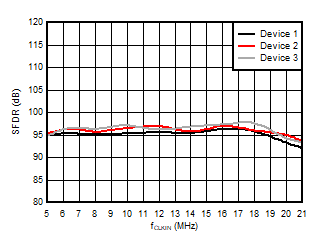

GUID-20201129-CA0I-JS7F-ZCWJ-M11QDGFC3KXQ-low.gifFigure 6-31 Spurious-Free Dynamic Range vs Input Clock Frequency
GUID-20201129-CA0I-TLVR-SLRW-FWNQHRTV0NJT-low.gifFigure 6-33 Spurious-Free Dynamic Range vs Temperature
GUID-20201129-CA0I-BNF2-2GW7-ZCKBJDSDRQRV-low.gifFigure 6-35 Output Frequency Spectrum With a 10-kHz Input Signal
GUID-20201129-CA0I-HKQS-3HQX-PNKBBDDSFZZ5-low.gifFigure 6-37 Power-Supply Rejection Ratio vs Ripple Frequency
GUID-20201129-CA0I-BJNM-ZL1C-XM7T3PP9T1JQ-low.gifFigure 6-39 Supply Current vs
Input Clock Frequency
GUID-20201129-CA0I-NHLC-JVJK-TFHMK4VMP5DR-low.gifFigure 6-41 High-Side LDO Output Voltage vs Supply Voltage
