4 PCM6xx0-Q1 Use-Case Scenarios

PCM6xx0-Q1 can be used in wide-variety of audio application scenarios in head-unit, external amplifiers, ANC module, or audio hubs. Since PCM6xx0-Q1 support analog and digital microphone inputs and line inputs in both single-ended and differential mode, they cater to almost every conceivable audio signal input scenarios in automotive.

Figure 4-1 ANC with Voice or Auxiliary Audio Input in Head-unit

Figure 4-2 ANC in Head-unit

Figure 4-3 ANC in Standalone ANC module

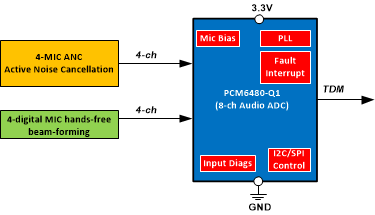

Figure 4-4 ANC and 4-digital MIC Hands-free Beamforming in Head-unit

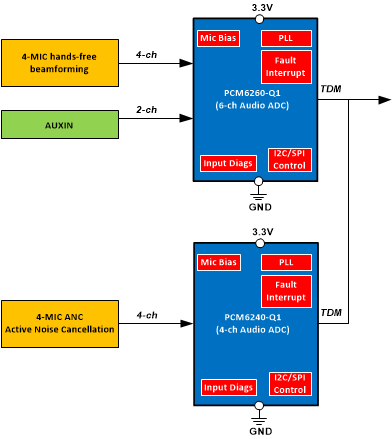

Figure 4-5 ANC in Standalone Module, Hands-free Beamforming and AUXIN or Voice input in Head-unit

Figure 4-6 ANC, Hands-free Beamforming and Auxiliary Input in Head-unit

For more details about the product features, refer to the product folder PCM6260-Q1.
