5.8 Typical Characteristics: VOUT DAC

at TA = 25°C, PVDD = 2.7 V, IOVDD = 1.8 V, external or internal VREFIO = 1.25 V, RLOAD = 50 kΩ to GND, CLOAD = 100 pF to GND, and digital inputs at IOVDD or GND (unless otherwise noted)

AFE78201 AFE88201 DAC DNL vs Digital Input Code

Figure 5-3 DAC DNL vs Digital Input Code
AFE78201 AFE88201 DAC INL vs Digital Input Code

Figure 5-5 DAC INL vs Digital Input Code

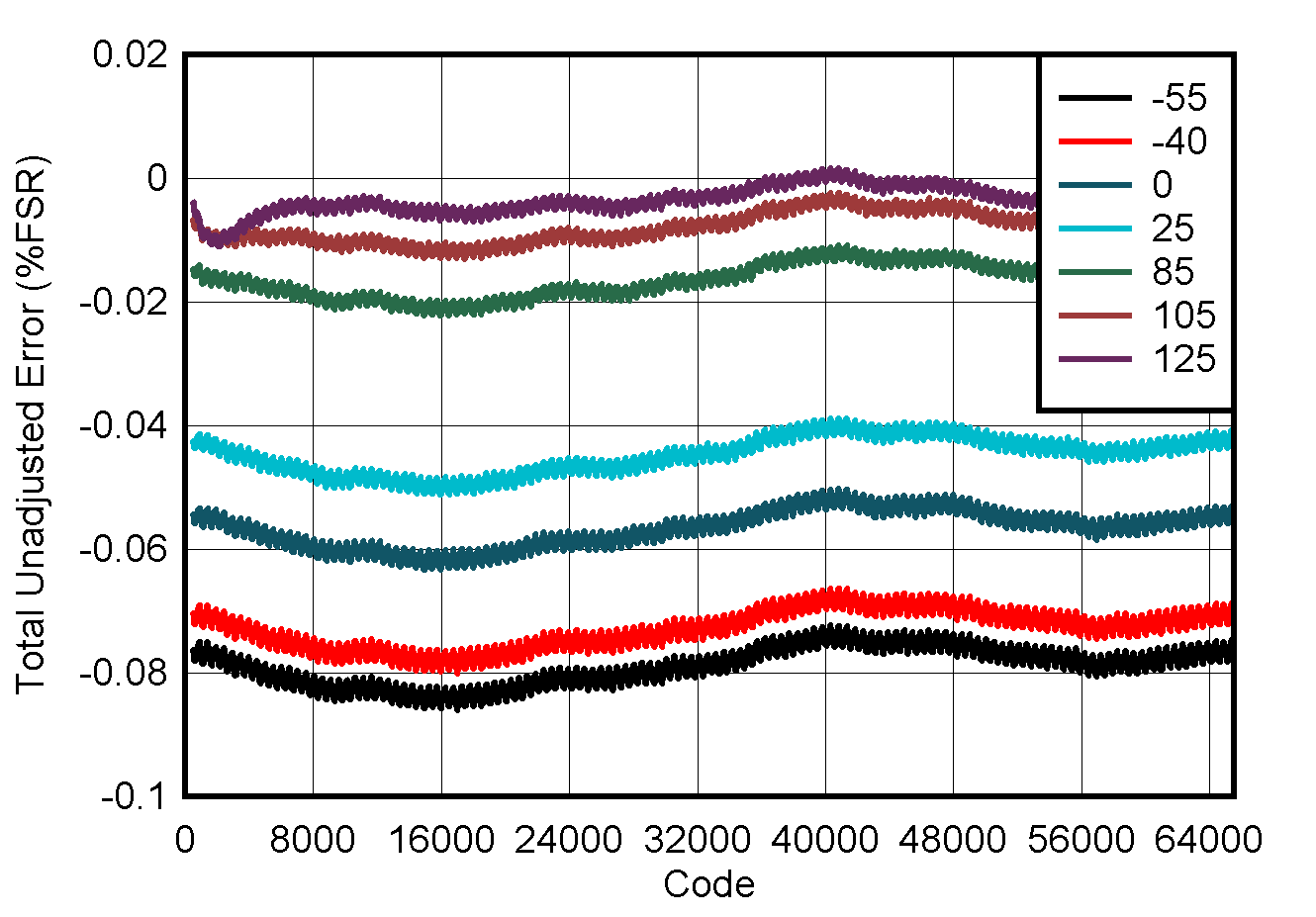

AFE78201 AFE88201 DAC TUE vs Digital Input Code

Figure 5-7 DAC TUE vs Digital Input Code
AFE78201 AFE88201 Zero-code Impedance

Figure 5-9 Zero-code Impedance
AFE78201 AFE88201 DAC Source and Sink Current Capability
DAC at midcode
Figure 5-11 DAC Source and Sink Current Capability
AFE78201 AFE88201 DAC Glitch Impulse Rising Edge
PVDD = 5.5 V
Figure 5-13 DAC Glitch Impulse Rising Edge
AFE78201 AFE88201 DAC Gain Error vs TemperatureFigure 5-15 DAC Gain Error vs Temperature
AFE78201 AFE88201 DAC Full Scale Error vs TemperatureFigure 5-17 DAC Full Scale Error vs Temperature
AFE78201 AFE88201 DAC Output Noise, 0.1 Hz to 10 Hz
DAC at midcode PVDD = 5.5 V
Figure 5-19 DAC Output Noise, 0.1 Hz to 10 Hz
AFE78201 AFE88201 DAC Rising Settling Time

Figure 5-21 DAC Rising Settling Time
AFE78201 AFE88201 DAC Settling Time With Linear Slew Rate Control

Figure 5-23 DAC Settling Time With Linear Slew Rate Control
AFE78201 AFE88201 DAC RESET Response

Figure 5-25 DAC RESET Response
AFE78201 AFE88201 DAC AC PSRR vs Frequency
Internal reference
Figure 5-27 DAC AC PSRR vs Frequency
AFE78201 AFE88201 MIN and MAX DAC DNL Range vs Temperature

Figure 5-4 MIN and MAX DAC DNL Range vs Temperature
AFE78201 AFE88201 MIN and MAX DAC INL Range vs Temperature

Figure 5-6 MIN and MAX DAC INL Range vs Temperature
AFE78201 AFE88201 MIN and MAX DAC TUE vs Temperature

Figure 5-8 MIN and MAX DAC TUE vs Temperature
AFE78201 AFE88201 DAC Footroom Over Temperature and Load

Figure 5-10 DAC Footroom Over Temperature and Load

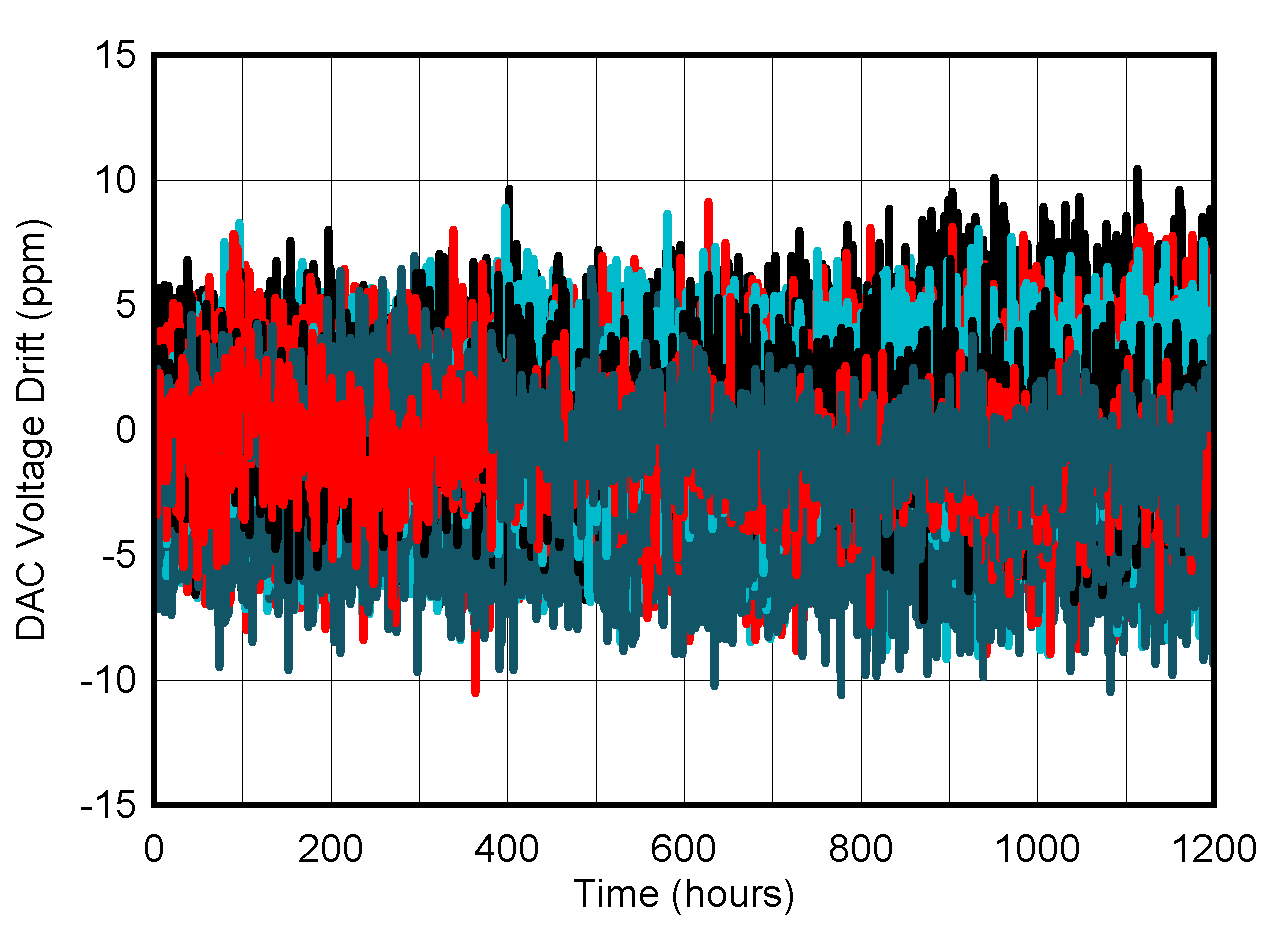

AFE78201 AFE88201 DAC Output Voltage Long-Term Stability
Ideal reference
Figure 5-12 DAC Output Voltage Long-Term Stability
AFE78201 AFE88201 DAC Glitch Impulse Falling Edge
PVDD = 5.5 V
Figure 5-14 DAC Glitch Impulse Falling Edge

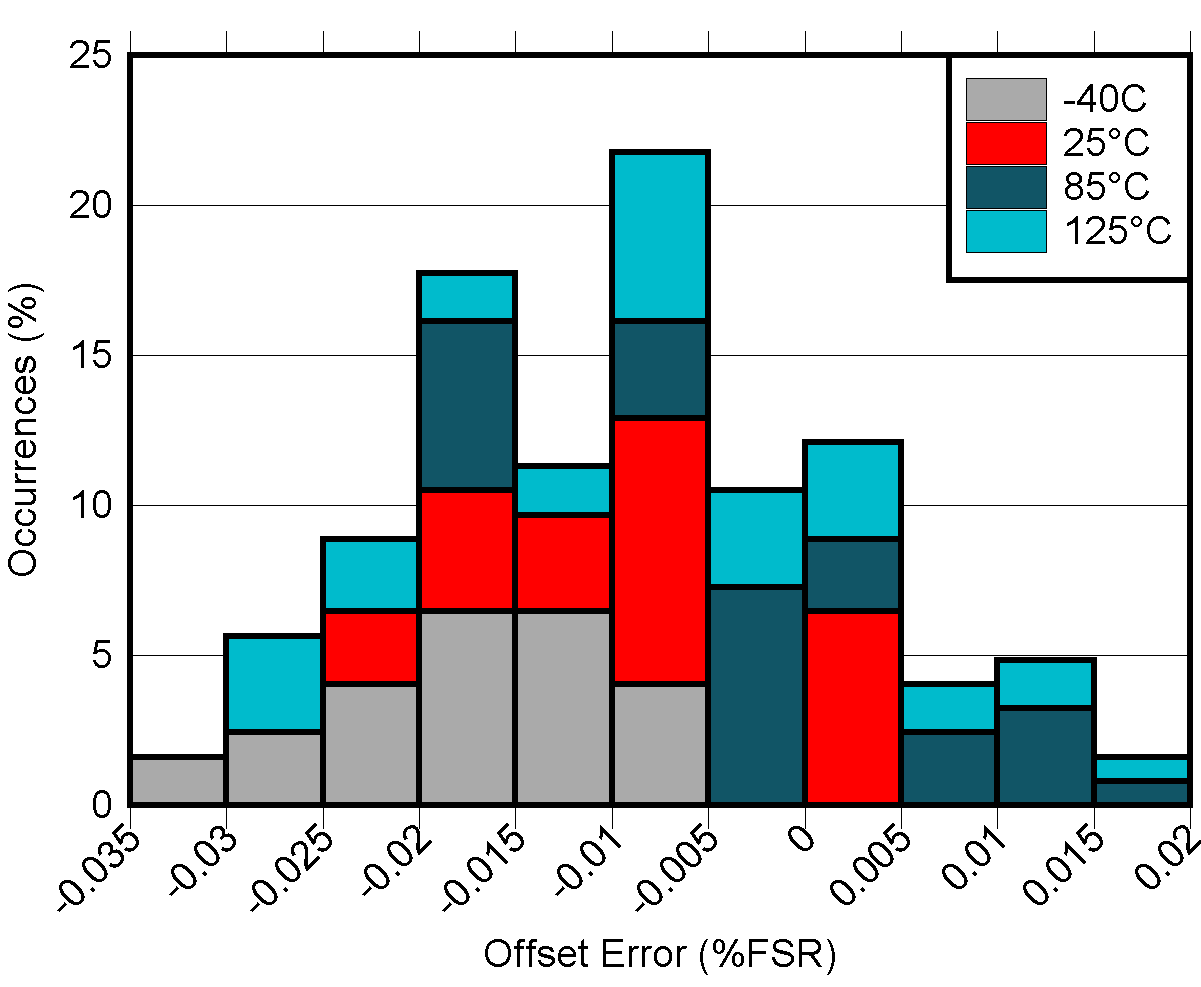

AFE78201 AFE88201 DAC Offset Error vs TemperatureFigure 5-16 DAC Offset Error vs Temperature
AFE78201 AFE88201 DAC Zero Scale Error vs TemperatureFigure 5-18 DAC Zero Scale Error vs Temperature
AFE78201 AFE88201 DAC Output Noise Density vs Frequency
DAC at midcode PVDD = 5.5 V
Figure 5-20 DAC Output Noise Density vs Frequency
AFE78201 AFE88201 DAC Falling Settling Time

Figure 5-22 DAC Falling Settling Time
AFE78201 AFE88201 DAC Settling Time With Sinusoidal Slew Rate Control

Figure 5-24 DAC Settling Time With Sinusoidal Slew Rate Control
AFE78201 AFE88201 DAC Supply Power On, PVDD = 2.7 V

Figure 5-26 DAC Supply Power On, PVDD = 2.7 V
