4.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

CSD19535KTT Transient Thermal Impedance
Figure 4-1 Transient Thermal Impedance

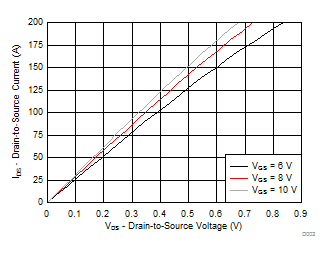

CSD19535KTT Saturation Characteristics
Figure 4-2 Saturation Characteristics
CSD19535KTT Transfer Characteristics
VDS = 5V
Figure 4-3 Transfer Characteristics
CSD19535KTT Gate Charge
VDS = 50VID = 100A
Figure 4-4 Gate Charge
CSD19535KTT Threshold Voltage vs Temperature
ID = 250µA
Figure 4-6 Threshold Voltage vs Temperature

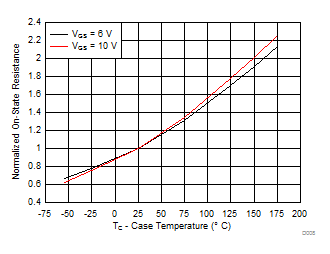

CSD19535KTT Normalized On-State Resistance vs Temperature
ID = 100A
Figure 4-8 Normalized On-State Resistance vs Temperature
CSD19535KTT Maximum Safe Operating Area
Single pulse, max RθJC = 0.5°C/W
Figure 4-10 Maximum Safe Operating Area
CSD19535KTT Maximum Drain Current vs Temperature
Figure 4-12 Maximum Drain Current vs Temperature
CSD19535KTT Capacitance
Figure 4-5 Capacitance
CSD19535KTT On-State Resistance vs Gate-to-Source Voltage
Figure 4-7 On-State Resistance vs Gate-to-Source Voltage
CSD19535KTT Typical Diode Forward Voltage
Figure 4-9 Typical Diode Forward Voltage
CSD19535KTT Single Pulse Unclamped Inductive Switching
Figure 4-11 Single Pulse Unclamped Inductive Switching
