Start-Up

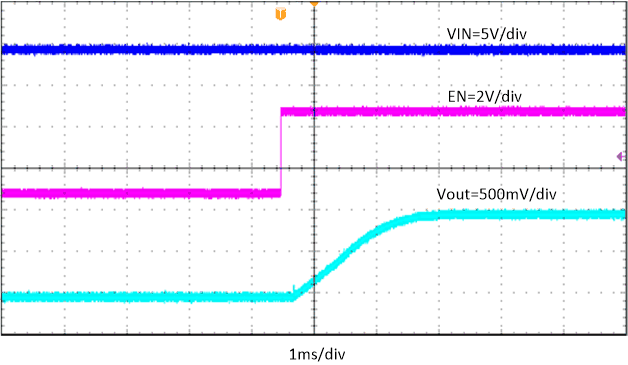

The TPS566231PEVM start-up waveform relative to EN is shown in Figure 4-1.

GUID-B089EB01-65F6-4E1D-999A-91EB15470CA2-low.gifFigure 4-1 Start-Up Relative to EN, IOUT= 3A
