4.7 Input Voltage Ripple

The input voltage ripple is shown in Figure 4-7. The input voltage is VIN = 12 V for the TPS54550. Output current for each device is at full rate TPS54550EVM-158 load of 5 A.

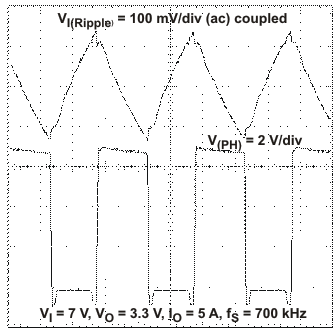

GUID-1A27F25B-C3CF-4177-BB01-9A4019A52288-low.gifFigure 4-7 Input Voltage Ripple, TPS54550
