4 Board Layout

This section provides the TPS621x0EVM-505 board layout and illustrations.

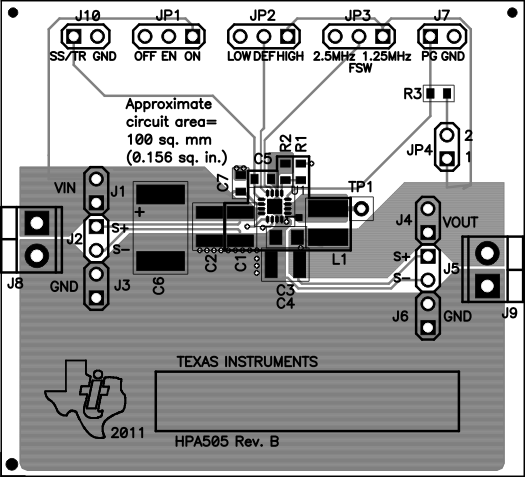

GUID-A4A19160-9F80-4118-9C10-771871C03D2A-low.gif Figure 4-1 Assembly Layer

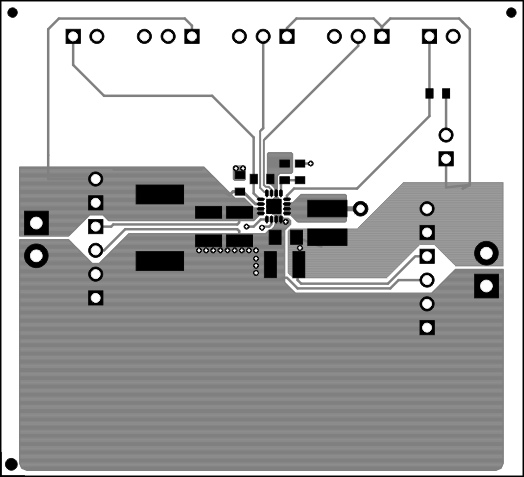

GUID-B2ABFB2E-6EE7-46EF-AABF-3AF15583074E-low.gif Figure 4-2 Top Layer Routing

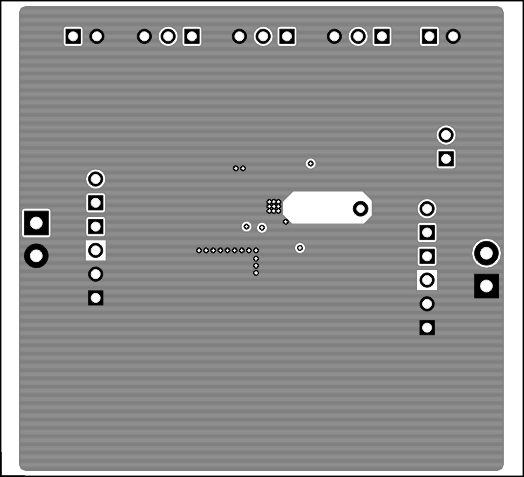

GUID-F259434C-154A-4D2B-8CD6-F1813270A2EF-low.gif Figure 4-3 Internal Layer-1 Routing
GUID-F259434C-154A-4D2B-8CD6-F1813270A2EF-low.gif Figure 4-4 Internal Layer-2 Routing

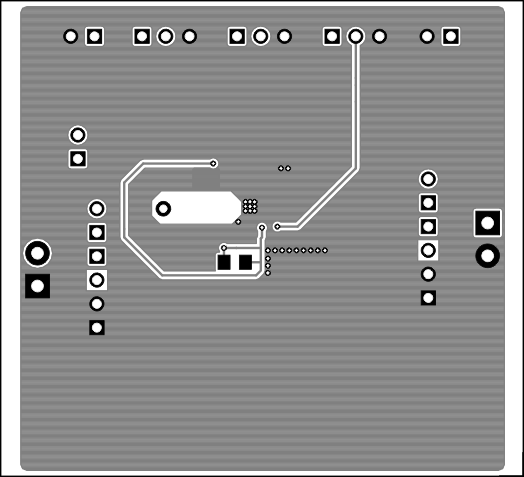

GUID-DCA65828-1819-4A65-81B6-487637A11F64-low.gif Figure 4-5 Bottom Layer Routing
