2.7 Output Voltage Ripple

Figure 2-8, Figure 2-9, and Figure 2-10 show the TPS568215EVM-762 output voltage ripple. The load currents are 10 mA, 700 mA, and 8 A. VIN = 12 V. The ripple voltage is measured directly across TP9 and TP10.

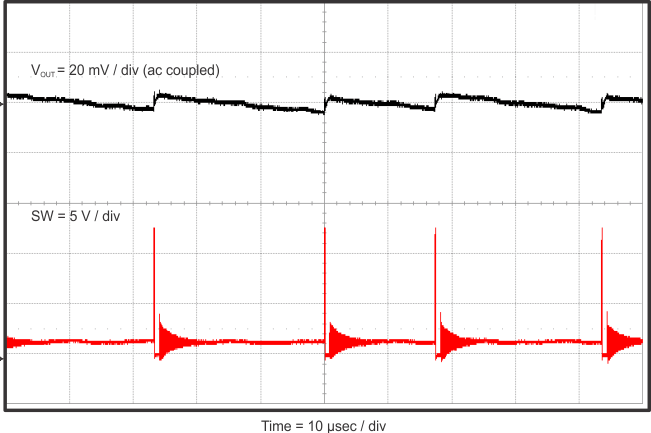

GUID-168C0274-4A63-4E5E-844D-216ED483778D-low.gifFigure 2-8 TPS568215EVM-762 Output Ripple, 10-mA Load
GUID-93D019D2-D648-4B51-9BB1-3FB522993FE7-low.gifFigure 2-9 TPS568215EVM-762 Output Ripple, 700-mA Load

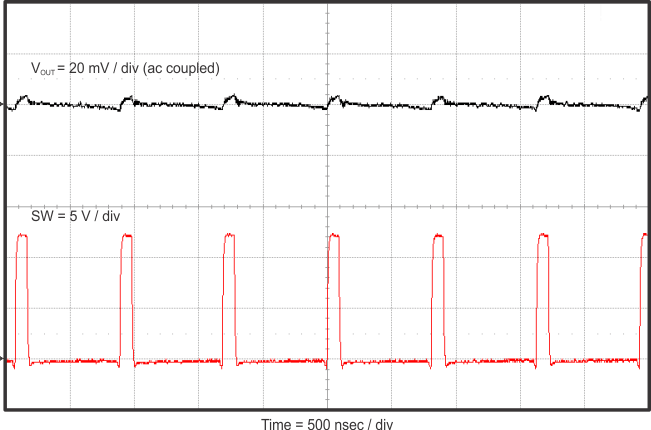

GUID-DE340364-ADAE-4914-906B-AE5D4DFAF748-low.gifFigure 2-10 TPS568215EVM-762 Output Ripple, 8-A Load
