5 Board Layout

This section provides the TPSM8286xAA0xEVM board layout and illustrations in Figure 5-1 through Figure 5-6. The Gerbers are available on the TPSM82866AA0SEVM tool folder. All four layers use 2-ounce copper.

Figure 5-1 Top Assembly

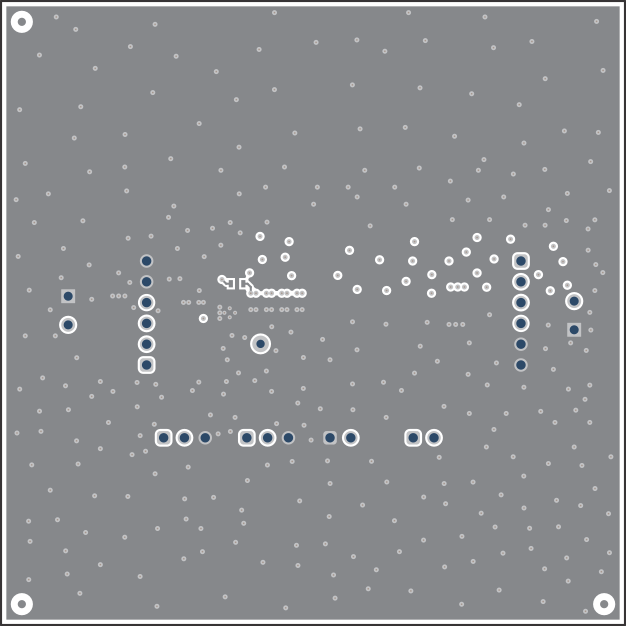

Figure 5-3 Internal Layer 1

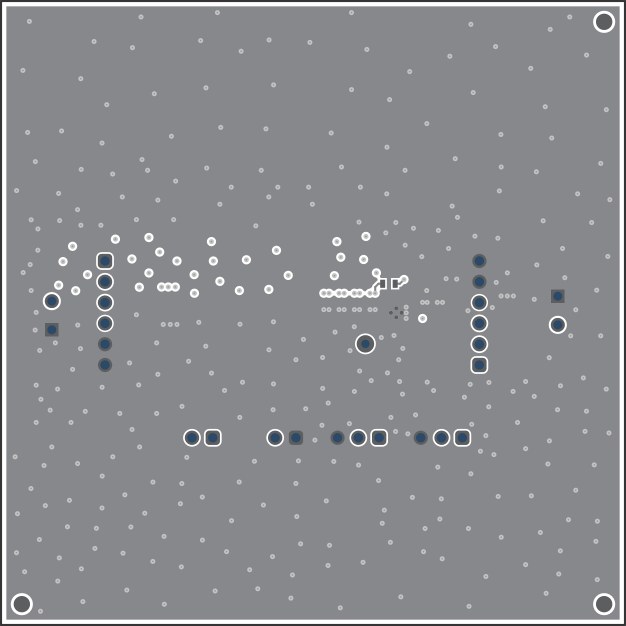

Figure 5-5 Bottom Layer

Figure 5-2 Top Layer

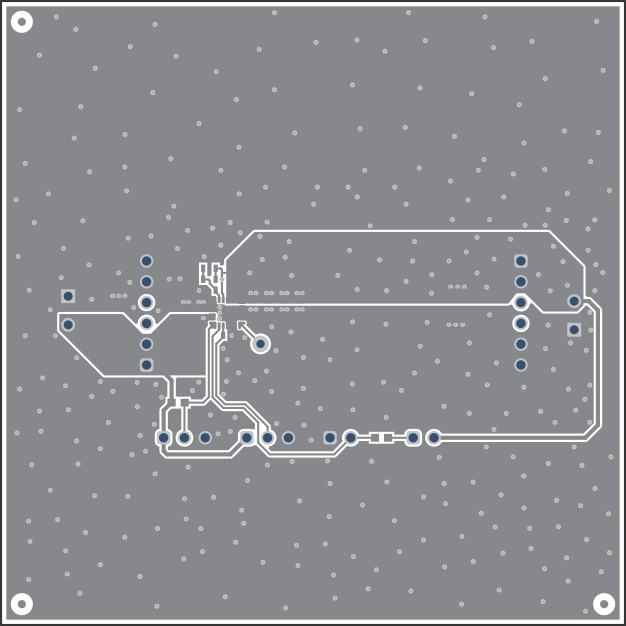

Figure 5-4 Internal Layer 2

Figure 5-6 Bottom Layer (Mirrored)
