12 Summary

The via channels have been carefully co-designed to ensure escapes for all signals and power while meeting the respective signal and power integrity goals for each interface. A summary of all via channel arrays and vias for the different power supply nets is shown in Table 12-1.

Table 12-1 Via Channel Summary
Net #Pins #Vias for BGA Escape
VDD_CORE 17 21
VDDR_CORE 8
VDD_CANUART 1
VDDA_CORE_USB 1
VDDA_CORE_CSIRX0 1
VDDS_DDR 5 2
VDDS_DDR_MEM 12 5
VDDSHV0 2 8
VDDSHV2 2
VDDSHV3 4
VDDSHV_MCU 2
VDDSHV_CANUART 1
VDDA_3P3_USB 1
VMON_3P3_SOC 1
VDDSHV1 2 3
VDDSHV4 1
VDDSHV6 1
VMON_1P8_SOC 1
VDDSHV5 1 1
VDDS_OSC0 1 11
VDDA_TEMP[0:1] 2
VDDA_PLL[0:2] 3
VDDA_MCU 1
VDDA_1P8_OLDI0 2
VDDA_1P8_CSIRX0 1
VDDA_1P8_USB 1
VDDS_MEM_1P8 2

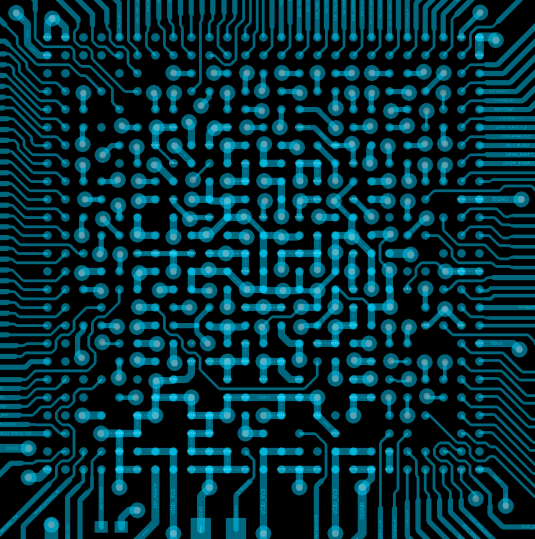

A picture with AM62xSiP with all signals and power escaped is shown in Figure 12-1.

GUID-71D0446A-2203-4084-8D6B-1622EAF9D9D7-low.png Figure 12-1 AM62xSiP with Complete Signal and Power Escapes
