7.12.1.2 Antenna Radiation Patterns for Transmitter

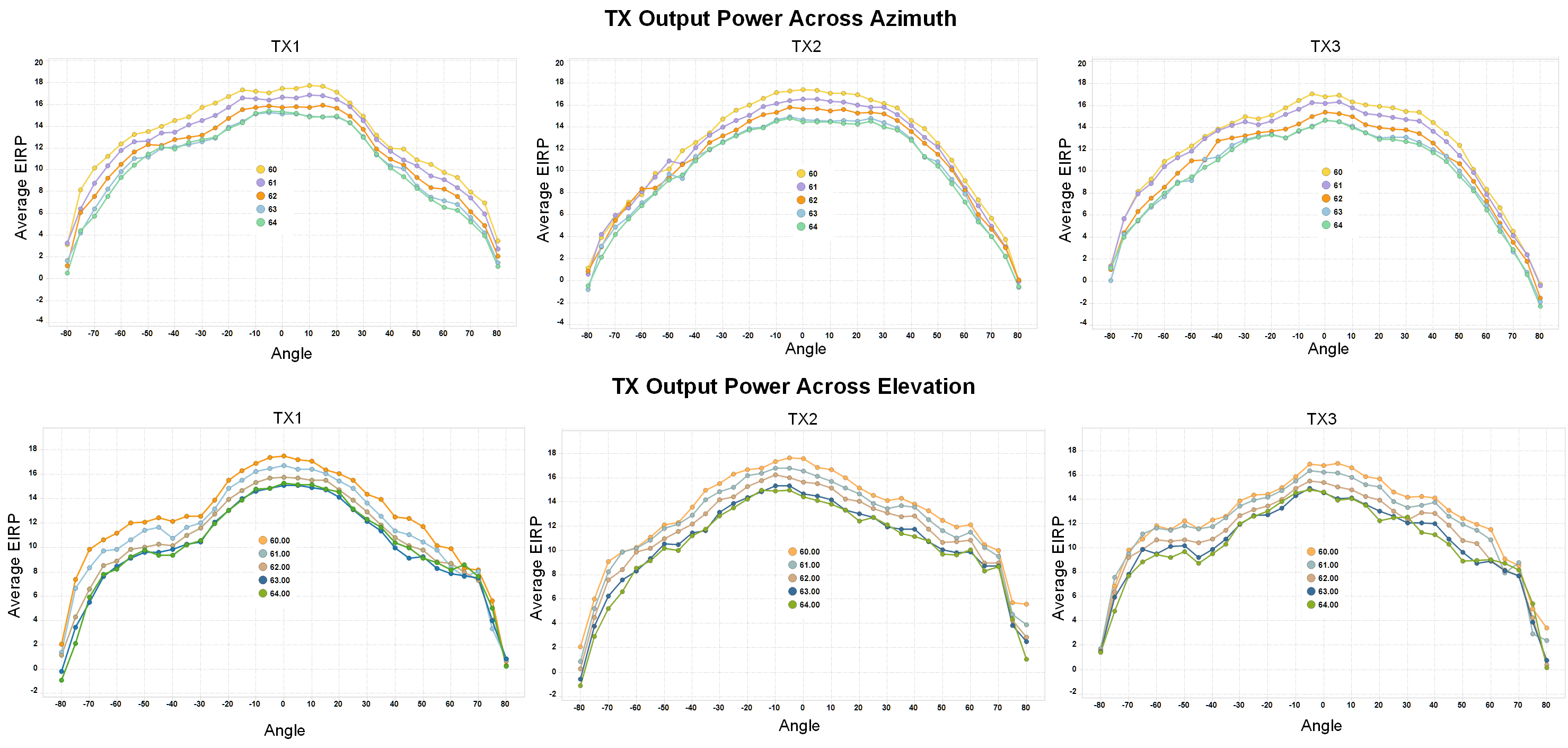

Figure 7-2 shows typical antenna radiation patterns for the three transmitters in both Azimuth (H-Plane) and Elevation (E-Plane) planes.

IWR6843AOP Transmitter Antenna Radiation Pattern Figure 7-3 Transmitter Antenna Radiation Pattern
