PRU_ICSSG RGMII Timing

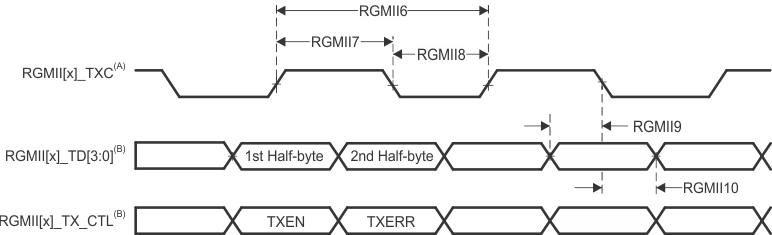

Table 6-136, Table 6-137, Table 6-138, Figure 6-110, Table 6-139, Table 6-140, and Figure 6-111 present timing conditions, requirements, and switching characteristics for PRU_ICSSG RGMII.

Table 6-136 PRU_ICSSG RGMII Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate VDD = 1.8V 1.44 5 V/ns
VDD = 3.3V 2.65 5 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 20 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Mismatch Delay) Propagation delay mismatch across all traces RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL 50 ps
RGMII[x]_TXC, RGMII[x]_TD[3:0], RGMII[x]_TX_CTL 50 ps
Table 6-137 PRU_ICSSG RGMII Timing Requirements – RGMII[x]_RXC see Figure 6-110
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII1 tc(RXC) Cycle time, RGMII[x]_RXC 10 Mbps 360 440 ns
100 Mbps 36 44 ns
1000 Mbps 7.2 8.8 ns
RGMII2 tw(RXCH) Pulse duration, RGMII[x]_RXC high 10 Mbps 160 240 ns
100 Mbps 16 24 ns
1000 Mbps 3.6 4.4 ns
RGMII3 tw(RXCL) Pulse duration, RGMII[x]_RXC low 10 Mbps 160 240 ns
100 Mbps 16 24 ns
1000 Mbps 3.6 4.4 ns
Table 6-138 PRU_ICSSG RGMII Timing Requirements – RGMII[x]_RD[3:0] and RGMII[x]_RX_CTL see Figure 6-110
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII4 tsu(RD-RXC) Setup time, RGMII[x]_RD[3:0] valid before RXC high/low 10 Mbps 1 ns
100 Mbps 1 ns
1000 Mbps 1 ns
tsu(RX_CTL-RXC) Setup time, RGMII[x]_RX_CTL valid before RGMII[x]_RXC high/low 10 Mbps 1 ns
100 Mbps 1 ns
1000 Mbps 1 ns
RGMII5 th(RXC-RD) Hold time, RGMII[x]_RD[3:0] valid after RGMII[x]_RXC high/low 10 Mbps 1 ns
100 Mbps 1 ns
1000 Mbps 1 ns
th(RXC-RX_CTL) Hold time, RGMII[x]_RX_CTL valid after RGMII[x]_RXC high/low 10 Mbps 1 ns
100 Mbps 1 ns
1000 Mbps 1 ns
RGMII[x]_RXC must be externally delayed relative to the data and control pins.
Data and control information is received using both edges of the clocks. RGMII[x]_RD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_RXC and data bits 7-4 on the falling edge of RGMII[x]_RXC. Similarly, RGMII[x]_RX_CTL carries RXDV on rising edge of RGMII[x]_RXC and RXERR on falling edge of RGMII[x]_RXC.
Figure 6-110 PRU_ICSSG RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL Timing Requirements - RGMII Mode
Table 6-139 PRU_ICSSG RGMII Switching Characteristics – RGMII[x]_TXC see Figure 6-111
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII6 tc(TXC) Cycle time, RGMII[x]_TXC 10 Mbps 360 440 ns
100 Mbps 36 44 ns
1000 Mbps 7.2 8.8 ns
RGMII7 tw(TXCH) Pulse duration, RGMII[x]_TXC high 10 Mbps 160 240 ns
100 Mbps 16 24 ns
1000 Mbps 3.6 4.4 ns
RGMII8 tw(TXCL) Pulse duration, RGMII[x]_TXC low 10 Mbps 160 240 ns
100 Mbps 16 24 ns
1000 Mbps 3.6 4.4 ns
Table 6-140 PRU_ICSSG RGMII Switching Characteristics – RGMII[x]_TD[3:0] and RGMII[x]_TX_CTL see Figure 6-111
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII9 tosu(TD-TXC) Output setup time, RGMII[x]_TD[3:0] valid to RGMII[x]_TXC high/low 10 Mbps 1.2 ns
100 Mbps 1.2 ns
1000 Mbps 1.2 ns
tosu(TX_CTL-TXC) Output setup time, RGMII[x]_TX_CTL valid to RGMII[x]_TXC high/low 10 Mbps 1.2 ns
100 Mbps 1.2 ns
1000 Mbps 1.2 ns
RGMII10 toh(TXC-TD) Output setup time, RGMII[x]_TD[3:0] valid after RGMII[x]_TXC high/low 10 Mbps 1.2 ns
100 Mbps 1.2 ns
1000 Mbps 1.2 ns
toh(TXC-TX_CTL) Output setup time, RGMII[x]_TX_CTL valid after RGMII[x]_TXC high/low 10 Mbps 1.2 ns
100 Mbps 1.2 ns
1000 Mbps 1.2 ns
TXC is delayed internally before being driven to the RGMII[x]_TXC pin. This internal delay is always enabled.
Data and control information is received using both edges of the clocks. RGMII[x]_TD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_TXC and data bits 7-4 on the falling edge of RGMII[x]_TXC. Similarly, RGMII[x]_TX_CTL carries TXEN on rising edge of RGMII[x]_TXC and TXERR on falling edge of RGMII[x]_TXC.
Figure 6-111 PRU_ICSSG RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics - RGMII Mode
