Absolute Maximum Ratings

over operating junction temperature range (unless otherwise noted)(1)(2)
PARAMETER MIN MAX UNIT
VDD_CORE Core supply -0.3 1.05 V
VDDR_CORE RAM supply -0.3 1.05 V
VDD_MMC0 MMC0 PHY core supply -0.3 1.05 V
VDD_DLL_MMC0 MMC0 PLL analog supply -0.3 1.05 V
VDDA_0P85_SERDES0 SERDES0 0.85-V analog supply -0.3 1.05 V
VDDA_0P85_SERDES0_C SERDES0 clock 0.85-V analog supply -0.3 1.05 V
VDDA_0P85_USB0 USB0 0.85-V analog supply -0.3 1.05 V
VDDS_DDR DDR PHY IO supply -0.3 1.57 V
VDDS_DDR_C DDR clock IO supply -0.3 1.57 V
VDDS_MMC0 MMC0 PHY IO supply -0.3 1.98 V
VDDS_OSC MCU_OSC0 supply -0.3 1.98 V
VDDA_MCU POR and MCU PLL analog supply -0.3 1.98 V
VDDA_ADC0 ADC0 analog supply -0.3 1.98 V
VDDA_PLL0 Main, PER1, and R5F PLL analog supply -0.3 1.98 V
VDDA_PLL1 ARM and DDR PLL analog supply -0.3 1.98 V
VDDA_PLL2 PER0 PLL analog supply -0.3 1.98 V
VDDA_1P8_SERDES0 SERDES0 1.8-V analog supply -0.3 1.98 V
VDDA_1P8_USB0 USB0 1.8-V analog supply -0.3 1.98 V
VDDA_TEMP0 TEMP0 analog supply -0.3 1.98 V
VDDA_TEMP1 TEMP1 analog supply -0.3 1.98 V
VPP eFuse ROM programming supply -0.3 1.98 V
VDDSHV_MCU IO supply for IO MCU -0.3 3.63 V
VDDSHV0 IO supply for IO group 0 -0.3 3.63 V
VDDSHV1 IO supply for IO group 1 -0.3 3.63 V
VDDSHV2 IO supply for IO group 2 -0.3 3.63 V
VDDSHV3 IO supply for IO group 3 -0.3 3.63 V
VDDSHV4 IO supply for IO group 4 -0.3 3.63 V
VDDSHV5 IO supply for IO group 5 -0.3 3.63 V
VDDA_3P3_USB0 USB0 3.3-V analog supply -0.3 3.63 V
VDDA_3P3_SDIO SDIO 3.3-V analog supply -0.3 3.63 V
Steady-state max voltage at all fail-safe IO pins MCU_PORz -0.3 3.63 V
MCU_I2C0_SCL, MCU_I2C0_SDA,  I2C0_SCL,  I2C0_SDA, and EXTINTn
When operating at 1.8V
-0.3 1.98(3) V
MCU_I2C0_SCL, MCU_I2C0_SDA,  I2C0_SCL,  I2C0_SDA, and EXTINTn
When operating at 3.3V
-0.3 3.63(3)
VMON_1P8_MCU, and VMON_1P8_SOC -0.3 1.98 V
VMON_3P3_MCU, and VMON_3P3_SOC -0.3 3.63 V
VMON_VSYS(4) -0.3 1.98 V
Steady-state max voltage at all other IO pins(5) USB0_VBUS(6) -0.3 3.6 V
USB0_ID(7) -0.3 3.6
All other IO pins -0.3 IO supply voltage + 0.3 V
Transient overshoot and undershoot at IO pin 20% of IO supply voltage for up to 20% of the signal period (see Figure 6-1, IO Transient Voltage Ranges) 0.2 × VDD(8) V
Latch-up performance(9) I-Test -100 +100 mA
Over-Voltage (OV) Test 1.5 x VDD(8) V
TSTG Storage temperature -55 +150 °C
Operation outside the Absolute Maximum Ratings may cause permanent device damage. Absolute Maximum Ratings do not imply functional operation of the device at these or any other conditions beyond those listed under Recommended Operating Conditions. If used outside the Section 6.4, Recommended Operating Conditions but within the Absolute Maximum Ratings, the device may not be fully functional, and this may affect device reliability, functionality, performance, and shorten the device lifetime.
All voltage values are with respect to VSS, unless otherwise noted.
The absolute maximum ratings for these fail-safe pins depends on their IO supply operating voltage. Therefore, this value is also defined by the maximum VIH value found in the I2C Open-Drain, and Fail-Safe (I2C OD FS) Electrical Characteristics section, where the electrical characteristics table has separate parameter values for 1.8-V mode and 3.3-V mode.
The VMON_VSYS pin provides a way to monitor the system power supply. For more information, see Section 8.2.4, System Power Supply Monitor Design Guidelines.
This parameter applies to all IO pins which are not fail-safe and the requirement applies to all values of IO supply voltage. For example, if the voltage applied to a specific IO supply is 0 volts the valid input voltage range for any IO powered by that supply will be –0.3 to +0.3 volts. Special attention should be applied anytime peripheral devices are not powered from the same power sources used to power the respective IO supply. It is important the attached peripheral never sources a voltage outside the valid input voltage range, including power supply ramp-up and ramp-down sequences.
An external resistor divider is required to limit the voltage applied to this device pin. For more information, see Section 8.2.3, USB Design Guidelines.
The USB0_ID pin is connected to analog circuits in the USB0 PHY. The analog circuits source a known current while measuring voltage, to determine the resistance value (RID), if connected to VSS through a resistor. This pin should be connected to VSS for USB host operation, or left unconnected for USB device operation, and should never be connected to any external voltage source.
VDD is the voltage on the corresponding power-supply pin(s) for the IO.
For current pulse injection (I-Test):
  • Pins stressed per JEDEC JESD78 (Class II) and passed with specified I/O pin injection current and clamp voltage of 1.5 times maximum recommended I/O voltage and negative 0.5 times maximum recommended I/O voltage.
For over-voltage performance (Over-Voltage (OV) Test):
  • Supplies stressed per JEDEC JESD78 (Class II) and passed specified voltage injection.

Fail-safe IO terminals are designed such they do not have dependencies on the respective IO power supply voltage. This allows external voltage sources to be connected to these IO terminals when the respective IO power supplies are turned off. The MCU_I2C0_SCL, MCU_I2C0_SDA,  I2C0_SCL, I2C0_SDA,  EXTINTn, VMON_1P8_MCU, VMON_1P8_SOC, VMON_3P3_MCU, VMON_3P3_SOC, VMON_VSYS, and MCU_PORz are the only fail-safe IO terminals. All other IO terminals are not fail-safe and the voltage applied to them should be limited to the value defined by the Steady State Max. Voltage at all IO pins parameter in Section 6.1.

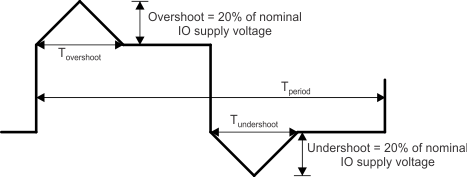

Tovershoot + Tundershoot < 20% of Tperiod
Figure 6-1 IO Transient Voltage Ranges
