5.2 Thermal Information

TA = 25°C (unless otherwise noted)
THERMAL METRICMINTYPMAXUNIT
RθJCThermal resistance, junction-to-case(1)0.8°C/W
RθJAThermal resistance, junction-to-ambient(1)(2)50°C/W
(1) RθJC is determined with the device mounted on a 1-in (2.54-cm) square, 2-oz(0.071-mm) thick Cu pad on a 1.5-in × 1.5-in (3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 board. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu.
Max RθJA = 50°C/W when mounted on 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu.

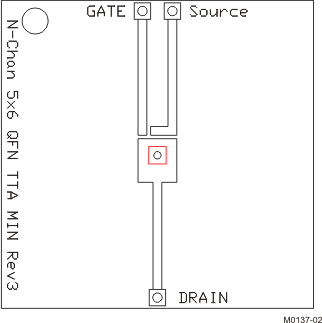

Max RθJA = 125°C/W when mounted on minimum pad area of 2-oz (0.071-mm) thick Cu.
