Physical Characteristics of the Micromirror Array

PARAMETERVALUEUNIT
MNumber of active columns(1)See Figure 6-8.640micromirrors
NNumber of active rows(1)See Figure 6-8.360micromirrors
PMicromirror (pixel) pitch(1)See Figure 6-8.7.56µm
Micromirror active array width(1)M × P4.8384mm
Micromirror active array height(1)N × P2.7216mm
Micromirror active border(2)(3)Pond of micromirrors (POM)8micromirrors, side
See Figure 6-8.
The structure and qualities of the border around the active array include a band of partially functional micromirrors called the “pond of micromirrors” (POM). These micromirrors are structurally and/or electrically prevented from tilting toward the bright or “on” state but still require an electrical bias to tilt toward “off.”
Out of the eight POM rows on the top and bottom, only the one POM row closest to the active array is electrically attached to that reset group. The other seven POM rows are attached to a dedicated POM internal reset driver circuit.

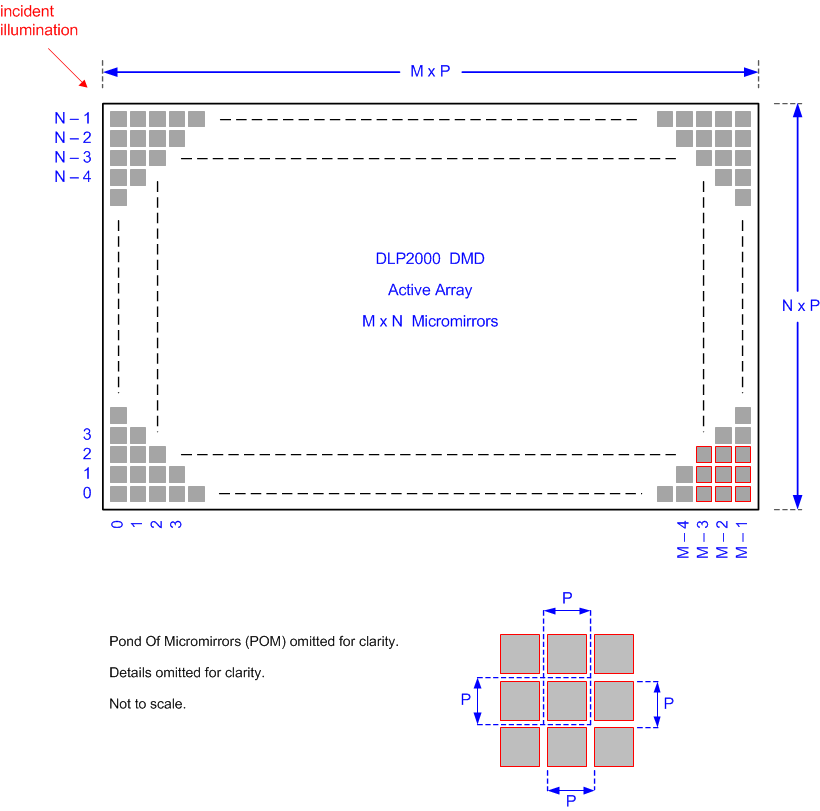

GUID-5E808CEB-CD28-473A-80D7-3896DA1CEB2D-low.gifFigure 6-8 Micromirror Array Physical Characteristics
