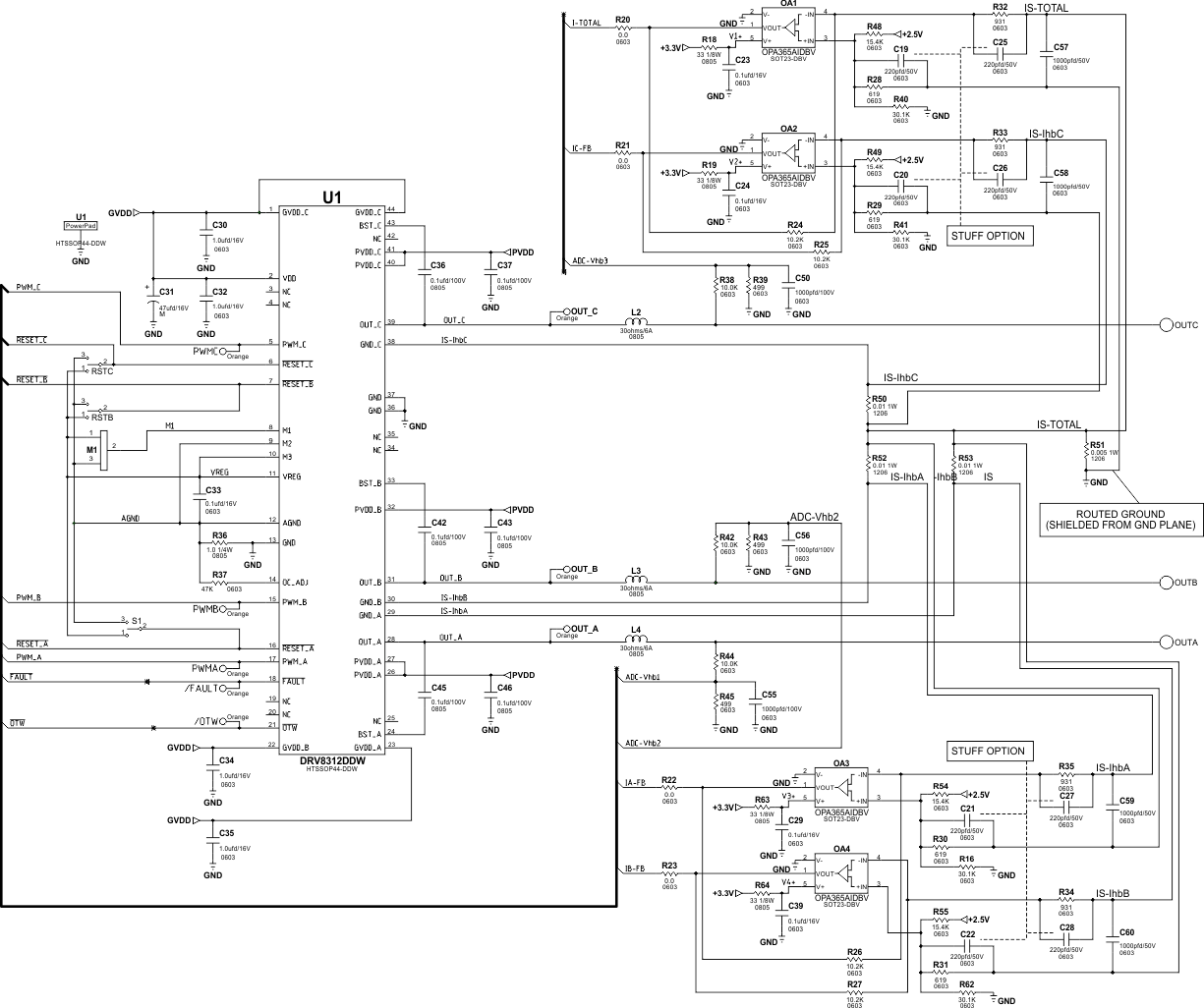

GUID-DFD09B64-1D33-43B3-B715-8EB8576F3B11-low.gifFigure 10-1 DRV8312 Schematic Example
T1: PVDD decoupling capacitors C37, C43, and C46 should be placed very close to PVDD_X pins and ground return path.
T2: VREG decoupling capacitor C33 should be placed very close to VREG abd AGND pins.
T3: Clear the space above and below the device as much as possible to improve the thermal spreading.
T4: Add many vias to reduce the impedance of ground path through top to bottom side. Make traces as wide as possible for ground path such as GND_X path.

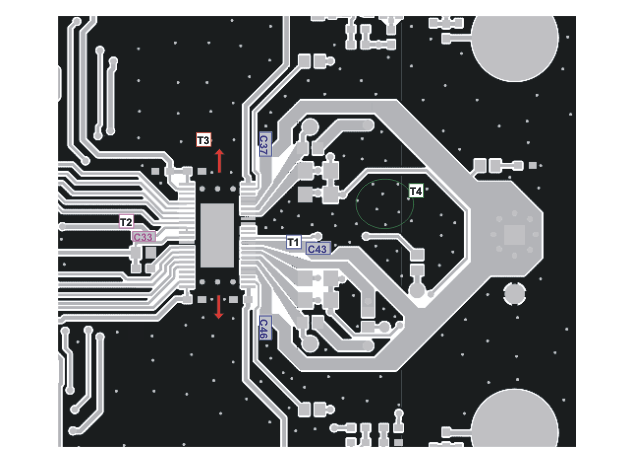

Figure 10-2 Printed Circuit Board – Top Layer
B1: Do not block the heat transfer path at bottom side. Clear as much space as possible for better heat spreading.
Figure 10-3 Printed Circuit Board – Bottom Layer
