9 Layout

9.1 Layout Guidelines

Keep traces short between IC and external components.

9.2 Layout Example

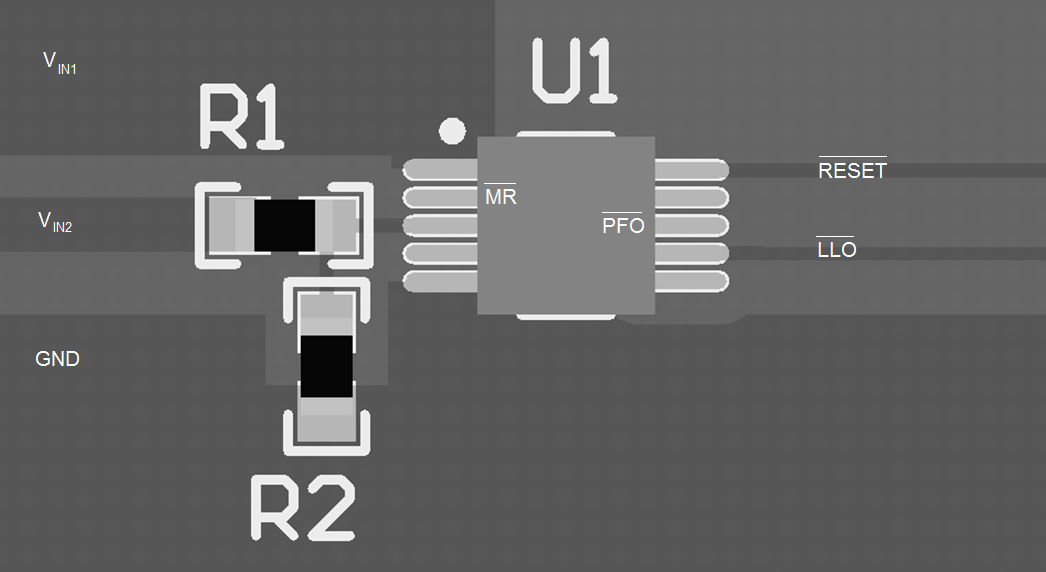

LM3704 layout example.png Figure 19. Layout Example for Application Circuit
