3 Description

The LMZM23600 integrated-inductor power module is specifically designed for space-constrained industrial applications. The device is available in two fixed output voltage options of 5 V and 3.3 V, and an adjustable (ADJ) output voltage option supporting a 1.2-V to 15-V range. The LMZM23600 has an input voltage range of 4 V to 36 V and can deliver up to 500-mA of output current. This power module is extremely easy to use, requiring only two external components for a 5-V or 3.3-V output design. All aspects of the LMZM23600 are optimized for performance driven and low EMI industrial applications with space-constrained needs. An open-drain, Power-Good output provides a true indication of the system status and negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes along with a no-load supply current of only 28 µA ensures high efficiency and superior transient response for the entire load-current range. For easy output current scaling the LMZM23600 is pin-to-pin compatible with the 1000-mA output current capable LMZM23601.

Package Information
PART NUMBERPACKAGE(1)BODY SIZE (NOM)
LMZM23600SIL (MicroSiP™, 10)3.80 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

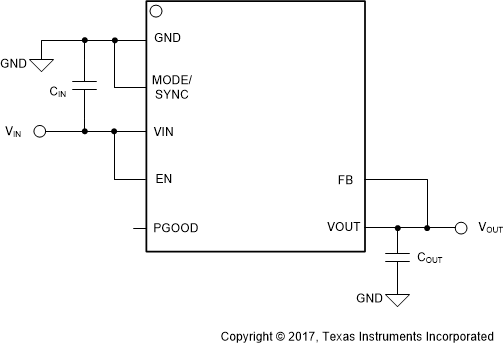

GUID-0ABCB161-134B-4B66-BCEC-BC2873FA81C5-low.gifSchematic for Fixed Output Option 24-V to 5-V, 0.5-A DC/DC Converter
GUID-1B96A135-0D3D-4E2F-860D-650A977534E1-low.gifSingle-Sided Layout Solution Size 24-V to 5-V, 0.5-A DC/DC Converter
