Typical Characteristics

TA = 25°C (unless otherwise noted)

fSCL = 400 kHzI/Os = High or Low Inputs
Figure 6-1 Supply Current (ICC, Operating Mode) vs Temperature (TA) at Four Supply Voltages
fSCL = 400 kHzI/Os = High or Low InputsTA = 25°C
Figure 6-3 Supply Current (ICC, Operating Mode) vs Supply Voltage (VCC)
TA = 25°C
Figure 6-5 Sink Current (IOL) vs Output Low Voltage (VOL) for P-Ports at Four Supply Voltages
TA = 25°C
Figure 6-7 Source Current (IOH) vs Output High Voltage (VOH) for P-Ports at Four Supply Voltages
VCC = 5 V
Figure 6-9 Supply Current (ICC) vs Number of I/Os Held Low (#)
fSCL = 0 kHzI/Os = High Inputs
Figure 6-2 Supply Current (ICC, Standby Mode) vs Temperature (TA) at Four Supply Voltages

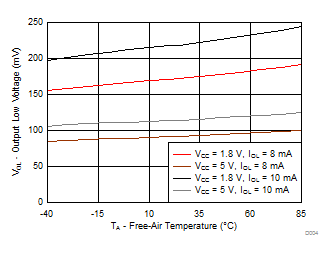

Figure 6-4 Output Low Voltage (VOL) vs Temperature (TA) for P-Port I/Os
GUID-651F5B6A-8E78-4419-A761-80DEA4DB8129-low.gifFigure 6-6 Output High Voltage (VCC – VOH) vs Temperature (TA) for P-Ports
TA = 25°C
Figure 6-8 Output High Voltage (VOH) vs Supply Voltage (VCC) for P-Ports

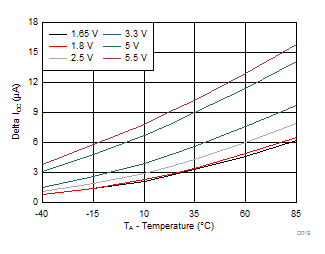

GUID-58A382B0-D2A8-4BEC-8775-670D59C95C0F-low.gifFigure 6-10 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
