8.3.2.2 Grayscale (GS) Data Latch

The GS data latch is 768 bits long, and sets the PWM timing for each constant-current output. The on-time of all constant-current outputs is controlled by the data in this data latch. The 768-bit GS data in the common shift register are copied to the data latch at a LAT rising edge when the common shift resister MSB is 0.

When the device is powered up, the data are random and all constant-current outputs are forced off. However, no outputs turn on until GS data are written to the GS data latch even if a GSCLK is input. The data bit assignment is shown in Table 8-1. Refer to Figure 8-2 for a GS data write timing diagram.

Table 8-1 Grayscale Data Latch Bit Description
GS DATA LATCH BIT NUMBERBIT NAMEDEFAULT VALUECONTROLLED CHANNELGS DATA LATCH BIT NUMBERBIT NAMEDEFAULT VALUECONTROLLED CHANNEL
15-0GSR0[15:0]N/A
(no default value)		Bits[15:0] for OUTR0399-384GSR8[15:0]N/A
(no default value)		Bits[15:0] for OUTR8
31-16GSG0[15:0]Bits[15:0] for OUTG0415-400GSG8[15:0]Bits[15:0] for OUTG8
47-32GSB0[15:0]Bits[15:0] for OUTB0431-416GSB8[15:0]Bits[15:0] for OUTB8
63-48GSR1[15:0]Bits[15:0] for OUTR1447-432GSR9[15:0]Bits[15:0] for OUTR9
79-64GSG1[15:0]Bits[15:0] for OUTG1463-448GSG9[15:0]Bits[15:0] for OUTG9
95-80GSB1[15:0]Bits[15:0] for OUTB1479-464GSB9[15:0]Bits[15:0] for OUTB9
111-96GSR2[15:0]Bits[15:0] for OUTR2495-480GSR10[15:0]Bits[15:0] for OUTR10
127-112GSG2[15:0]Bits[15:0] for OUTG2511-496GSG10[15:0]Bits[15:0] for OUTG10
143-128GSB2[15:0]Bits[15:0] for OUTB2527-512GSB10[15:0]Bits[15:0] for OUTB10
159-144GSR3[15:0]Bits[15:0] for OUTR3543-528GSR11[15:0]Bits[15:0] for OUTR11
175-160GSG3[15:0]Bits[15:0] for OUTG3559-544GSG11[15:0]Bits[15:0] for OUTG11
191-176GSB3[15:0]Bits[15:0] for OUTB3575-560GSB11[15:0]Bits[15:0] for OUTB11
207-192GSR4[15:0]Bits[15:0] for OUTR4591-576GSR12[15:0]Bits[15:0] for OUTR12
223-208GSG4[15:0]Bits[15:0] for OUTG4607-592GSG12[15:0]Bits[15:0] for OUTG12
239-224GSB4[15:0]Bits[15:0] for OUTB4623-608GSB12[15:0]Bits[15:0] for OUTB12
255-240GSR5[15:0]Bits[15:0] for OUTR5639-624GSR13[15:0]Bits[15:0] for OUTR13
271-256GSG5[15:0]Bits[15:0] for OUTG5655-640GSG13[15:0]Bits[15:0] for OUTG13
287-272GSB5[15:0]Bits[15:0] for OUTB5671-656GSB13[15:0]Bits[15:0] for OUTB13
303-288GSR6[15:0]Bits[15:0] for OUTR6687-672GSR14[15:0]Bits[15:0] for OUTR14
319-304GSG6[15:0]Bits[15:0] for OUTG6703-688GSG14[15:0]Bits[15:0] for OUTG14
335-320GSB6[15:0]Bits[15:0] for OUTB6719-704GSB14[15:0]Bits[15:0] for OUTB14
351-336GSR7[15:0]Bits[15:0] for OUTR7735-720GSR15[15:0]Bits[15:0] for OUTR15
367-352GSG7[15:0]Bits[15:0] for OUTG7751-736GSG15[15:0]Bits[15:0] for OUTG15
383-368GSB7[15:0]Bits[15:0] for OUTB7767-752GSB15[15:0]Bits[15:0] for OUTB15

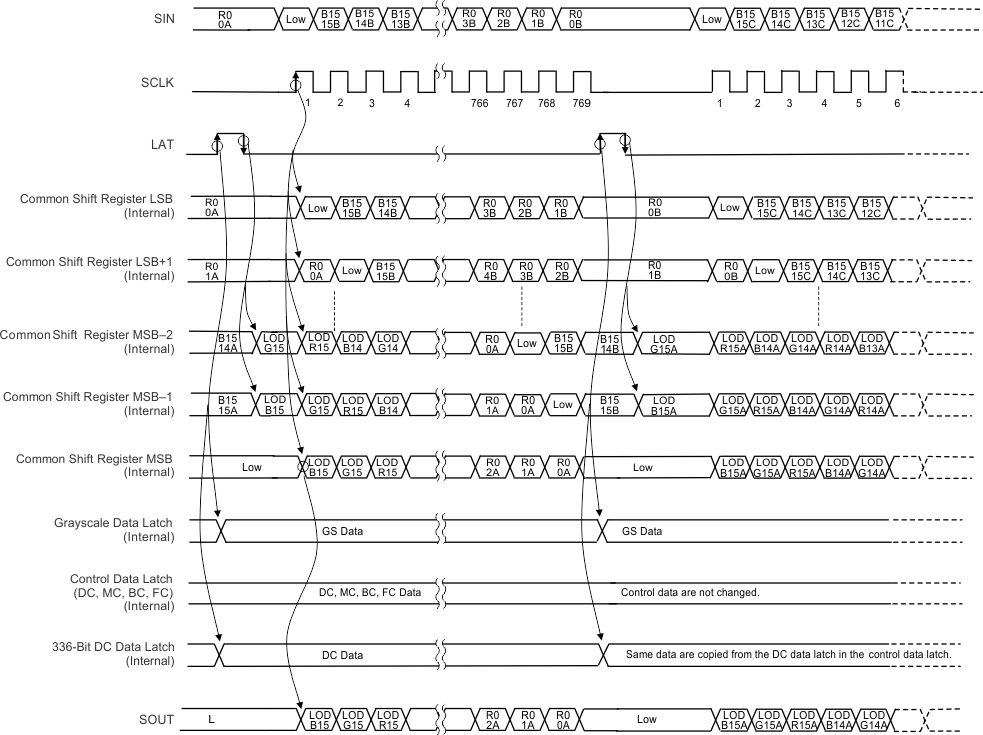

GUID-AC9843D5-04CF-4656-9F01-E150BA560F46-low.gifFigure 8-2 Grayscale Data Write Timing Diagram (RFRESH = 0)
