Typical Characteristics

At TJ = 25°C, VDD = 3.3 V, RLRESET = 100 kΩ, and CLRESET = 50 pF, unless otherwise noted.

Figure 7-2 Supply Current vs Supply Voltage

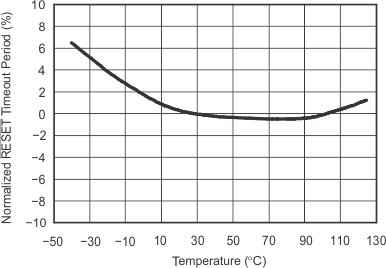

Figure 7-4 Normalized RESET Time-Out Period vs Temperature (CT = Open, CT = VDD, CT = Any)

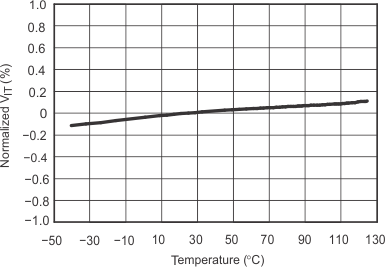

Figure 7-6 Normalized Sense Threshold Voltage (VIT) vs Temperature
Figure 7-8 Low-Level RESET Voltage vs RESET Current
Figure 7-3 RESET Time-Out Period vs CT
Figure 7-5 Maximum Transient Duration at Sense vs Sense Threshold Overdrive Voltage
Figure 7-7 Low-Level RESET Voltage vs RESET Current
