Typical Characteristics

at TA = 25°C, VS = 12 V, VCM = VS/2, and input overdrive = 100 mV (unless otherwise noted)
TLV1805 VIO_vs_VS.gif

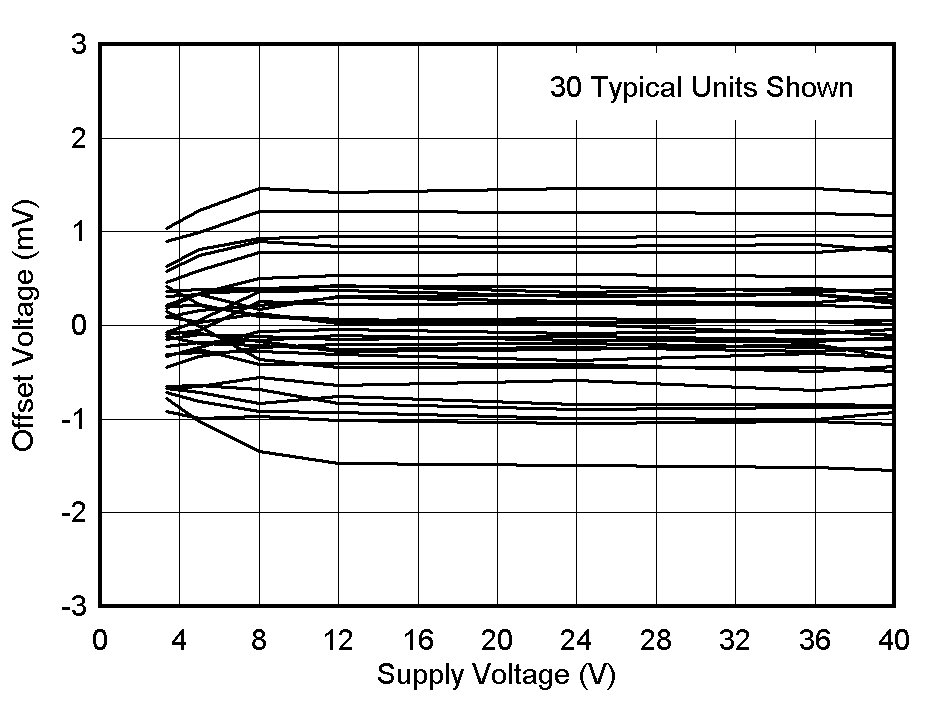

Figure 3. Input Offset Voltage vs. Supply Voltage

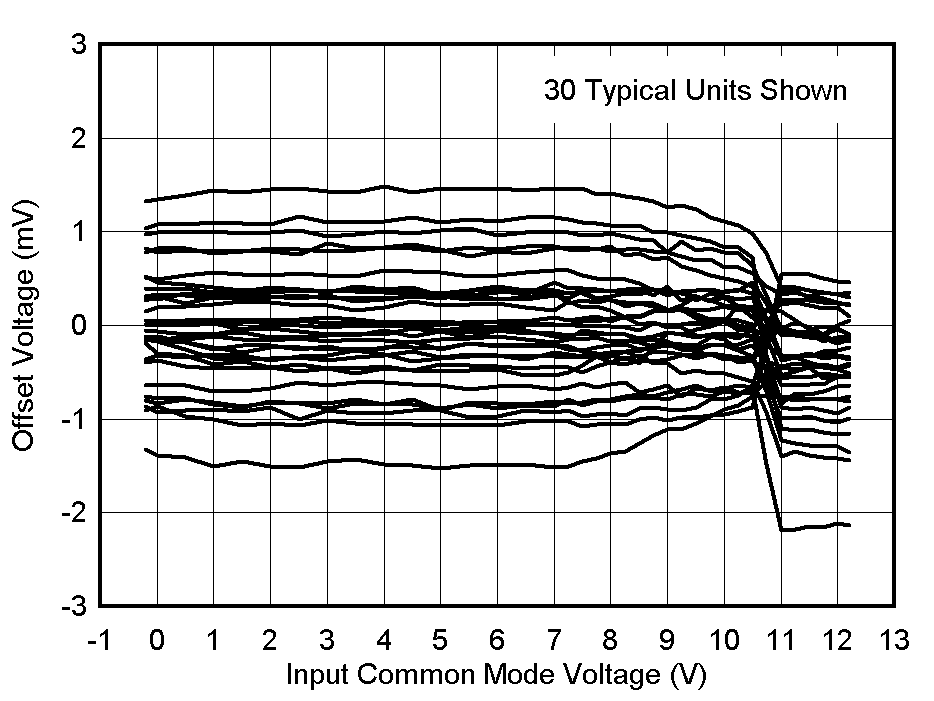

TLV1805 VIO_vs_VCM.gif
Figure 5. Offset Voltage vs. Common Mode
TLV1805 IQ_vs_VS.gif
VCM = V- Output Low (VID = -0.1 V)
Figure 7. Supply Current vs. Supply Voltage, Output Low

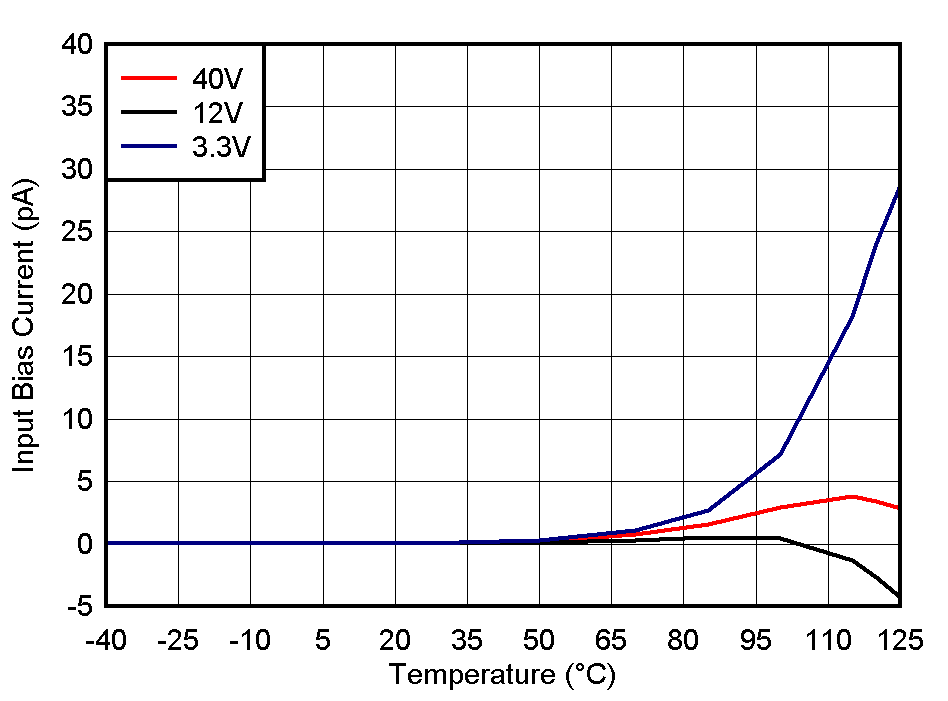

TLV1805 IB_vs_TA.gif
Figure 9. Input Bias Current vs. Temperature
TLV1805 IB_vs_VCM_25C.gif
TA = 25 °C
Figure 11. Input Bias Current vs. Common Mode, 25°C
TLV1805 IQsd_vs_VS.gif
VCM = V-
Figure 13. Shutdown Supply Current vs. Supply Votlage
TLV1805 SDVHI_vs_TA.gif
Figure 15. Shutdown Voltage High Threshold vs. Temperature
TLV1805 SDVHI_vs_VS.gif
Figure 17. Shutdown Voltage High Threshold vs. Supply Voltage
TLV1805 SDIB_vs_VSD_12V_125_85.gif
Figure 19. Shutdown Input Bias Current vs. Shutdown Input Voltage, High Temperatures
TLV1805 SDIB_vs_TA.gif
VSD = 5 V

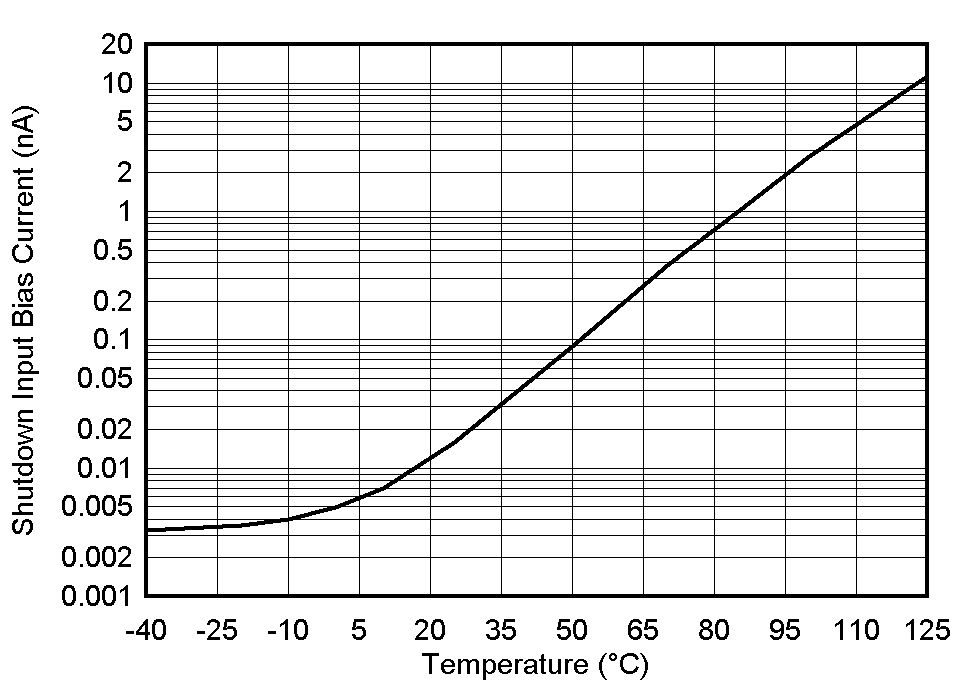

Figure 21. Shutdown Input Bias Current vs. Temperature
TLV1805 VOH_vs_Vs.gif
ISOURCE = 1 mA
Figure 23. Output High Voltage vs. Supply Voltage
TLV1805 VOL_vs_IO_Vs3p3.gif
VS = 3.3 V

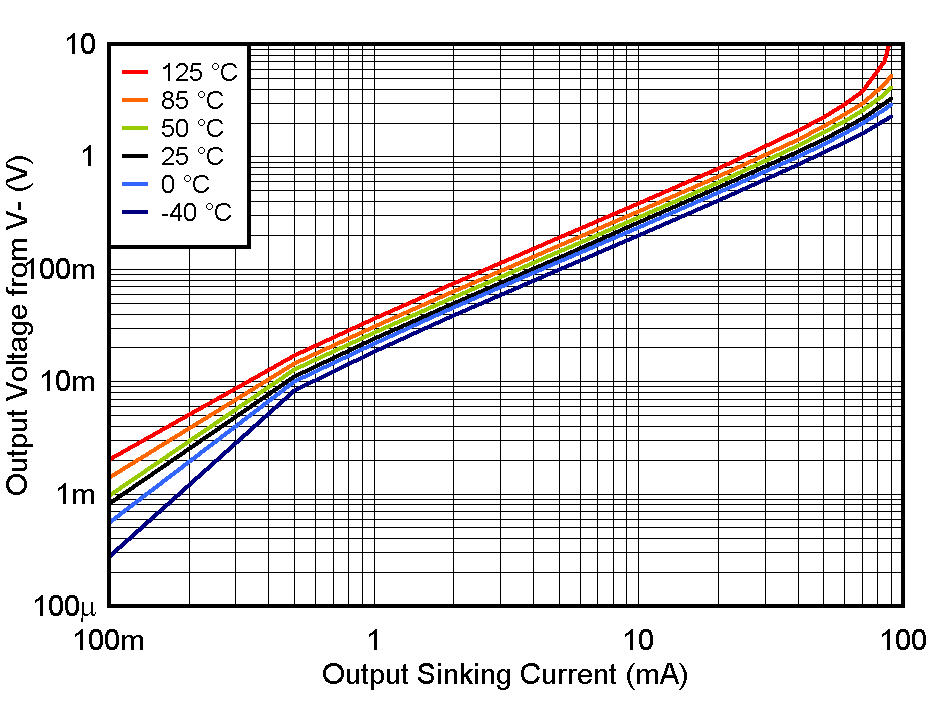

Figure 25. Output Sinking Current vs. Output Voltage
at 3.3V
TLV1805 VOL_vs_IO_Vs12.gif
VS = 12 V
Figure 27. Output Sinking Current vs. Output Voltage
at 12V
TLV1805 VOL_vs_IO_Vs40.gif
VS = 40 V
Figure 29. Output Sinking Current vs. Output Voltage
at 40V
TLV1805 HYST_vs_TA.gif
Figure 31. Hysteresis vs. Temperature
TLV1805 HYST_vs_VCM.gif
Figure 33. Hysteresis vs Common-Mode Voltage
TLV1805 TPLH_vs_VOD_Vs3p3.gif
VS = 3.3 V CL = 15pF
Figure 35. TPLH Response Time vs. Overdrive
at 3.3V
TLV1805 TPLH_vs_VOD_Vs5.gif
VS = 5 V CL = 15pF
Figure 37. TPLH Response Time vs. Overdrive
at 5V
TLV1805 TPLH_vs_VOD_Vs12.gif
VS = 12 V CL = 15pF
Figure 39. TPLH Response Time vs.
Overdrive at 12V
TLV1805 TPLH_vs_VOD_Vs40.gif
VS = 40 V CL = 15pF
Figure 41. TPLH Response Time vs. Overdrive
at 40V
TLV1805 TPLH_vs_VOD_Vs3p3_4n.gif
VS = 3.3 V CL = 4nF
Figure 43. TPLH Response Time vs. Overdrive
at 3.3V
TLV1805 TPLH_vs_VOD_Vs5_4n.gif
VS = 5 V CL = 4nF
Figure 45. TPLH Response Time vs. Overdrive
at 5V
TLV1805 TPLH_vs_VOD_Vs12_4n.gif
VS = 12 V CL = 4nF
Figure 47. TPLH Response Time vs.
Overdrive at 12V
TLV1805 TPLH_vs_VOD_Vs40_4n.gif
VS = 40 V CL = 4nF
Figure 49. TPLH Response Time vs. Overdrive
at 40V
TLV1805 TR_vs_CL_3p3V.gif
VS = 3.3 V
Figure 51. tRISE vs. Capacitive Load
at 3.3V
TLV1805 TR_vs_CL_5V.gif
VS = 5 V
Figure 53. tRISE vs. Capacitive Load
at 5V
TLV1805 TR_vs_CL_12V.gif
VS = 12 V
Figure 55. tRISE vs. Capacitive Load
at 12V
TLV1805 TR_vs_CL_40V.gif
VS = 40 V
Figure 57. tRISE vs. Capacitive Load
at 40V

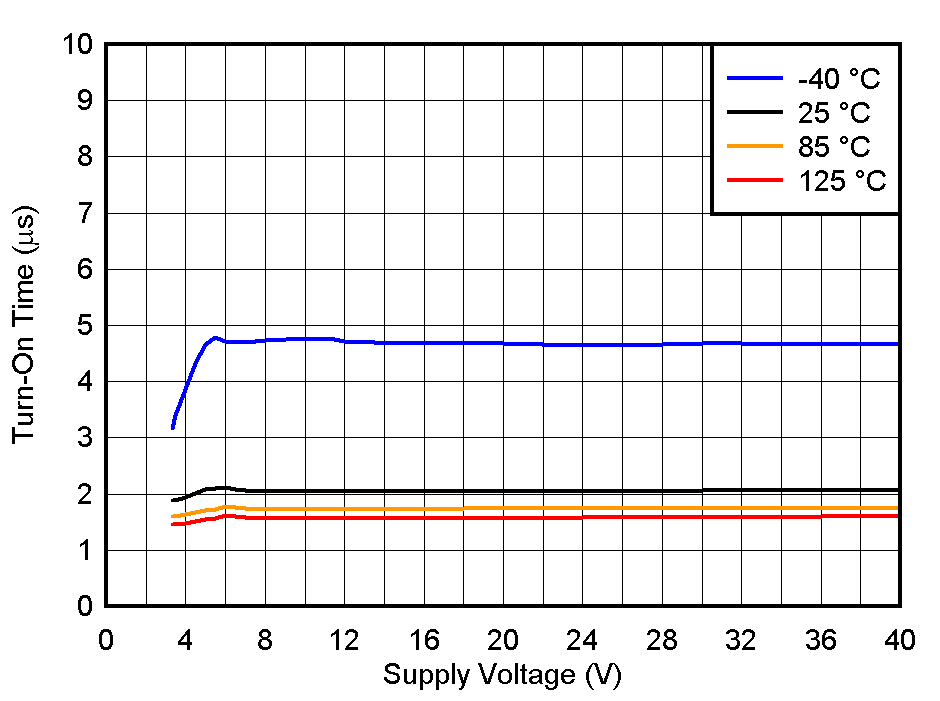

TLV1805 TON_vs_VS.gif
Figure 59. Turn-On Time vs Supply Voltage

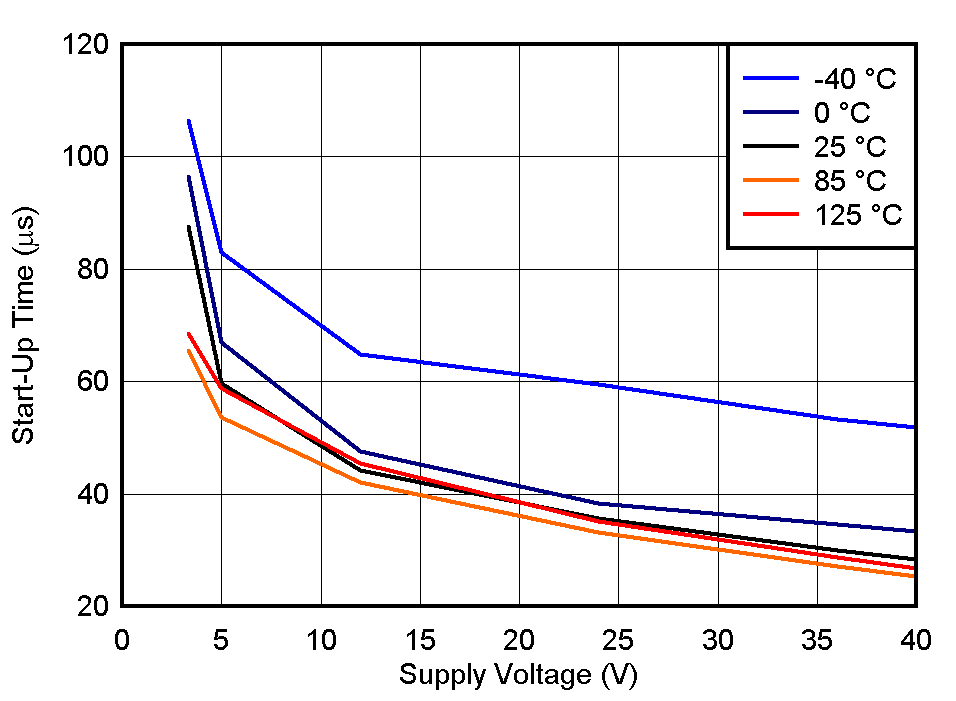

TLV1805 TSTART_vs_VS.gif
Figure 61. Start-Up Time vs Supply Voltage
TLV1805 VIO_HIST.gif

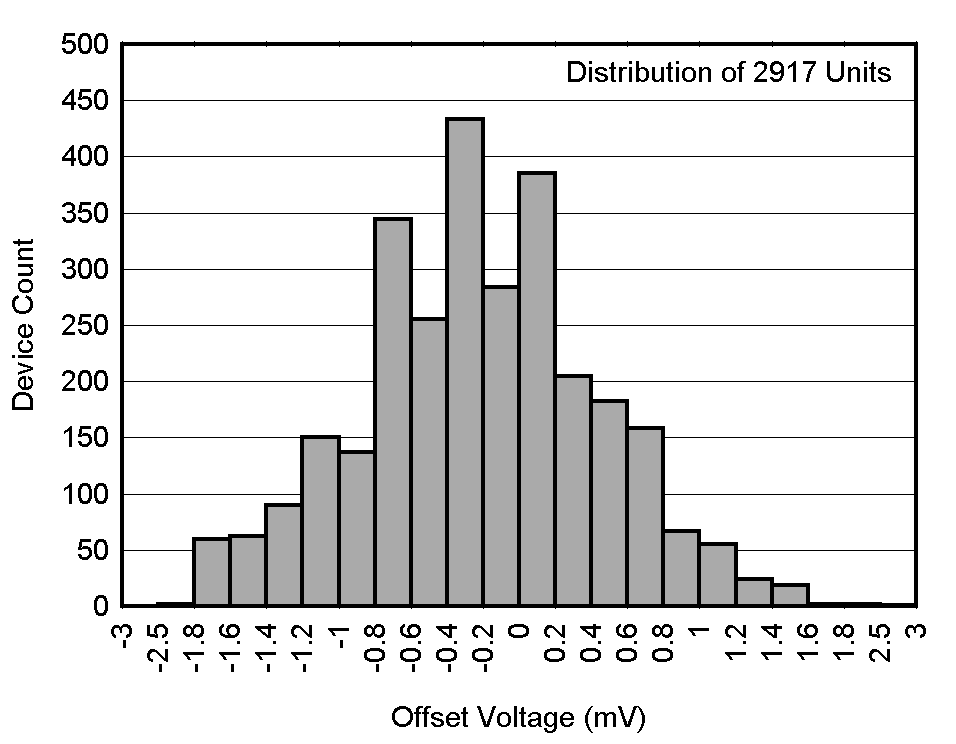

Figure 4. Offset Voltage Histogram

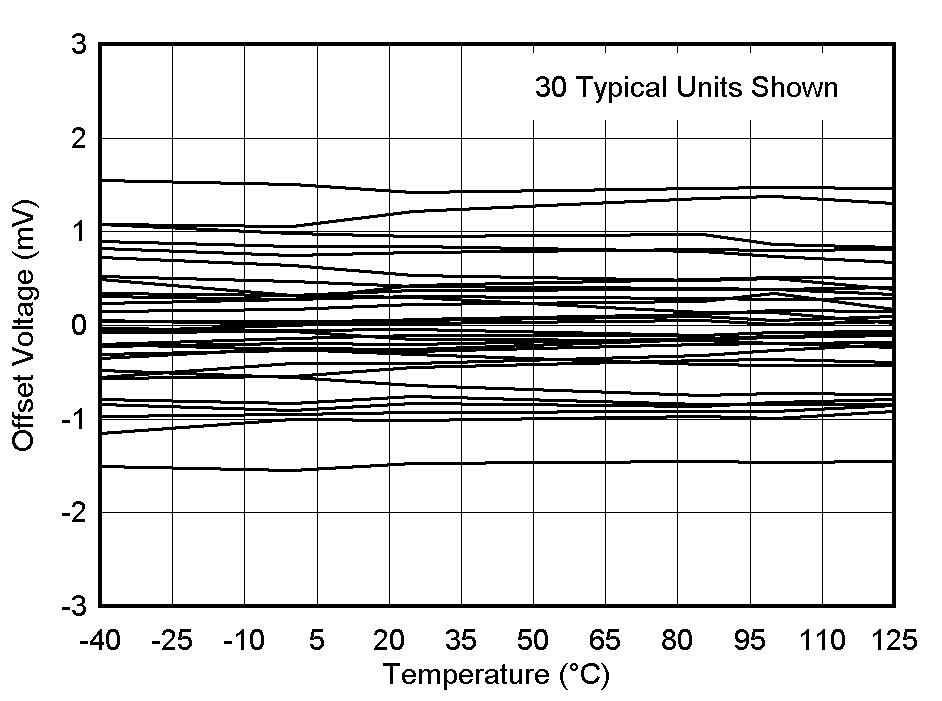

TLV1805 VIO_vs_TA.gif
Figure 6. Offset Voltage vs Temperature
TLV1805 IQ_vs_VS_OUTHI.gif
VCM = V- Output High (VID = 0.1 V)
Figure 8. Supply Current vs. Temperature, Output High
TLV1805 IB_vs_VCM_125C.gif
TA = 125 °C
Figure 10. Input Bias Current vs. Common Mode, 125°C
TLV1805 IB_vs_VCM_n40C.gif
TA = -40 °C

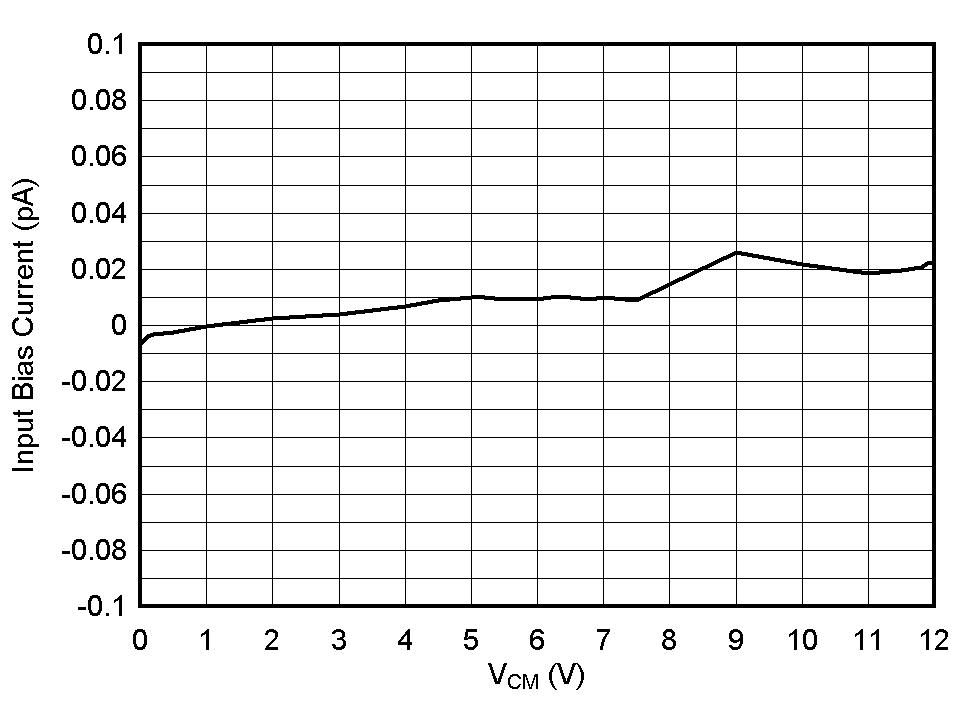

Figure 12. Input Bias Current vs. Common Mode, -40°C
TLV1805 IQsd_vs_VS.gif
VCM = V-
Figure 14. Shutdown Supply Current vs. Supply Votlage
TLV1805 SDVLO_vs_TA.gif
Figure 16. Shutdown Voltage Low Threshold vs. Temperature
TLV1805 SDVLO_vs_VS.gif
Figure 18. Shutdown Voltage Low Threshold vs. Supply Voltage
TLV1805 SDIB_vs_VSD_12V_25_n40.gif
Figure 20. Shutdown Input Bias Current vs. Shutdown Input Voltage, Low Temperatures
TLV1805 Detrating.gif
DBV SOT-23-6 Package
Figure 22. Maximum Output Current vs. Ambient Temperature
TLV1805 VOL_vs_Vs.gif
ISINK = 1 mA

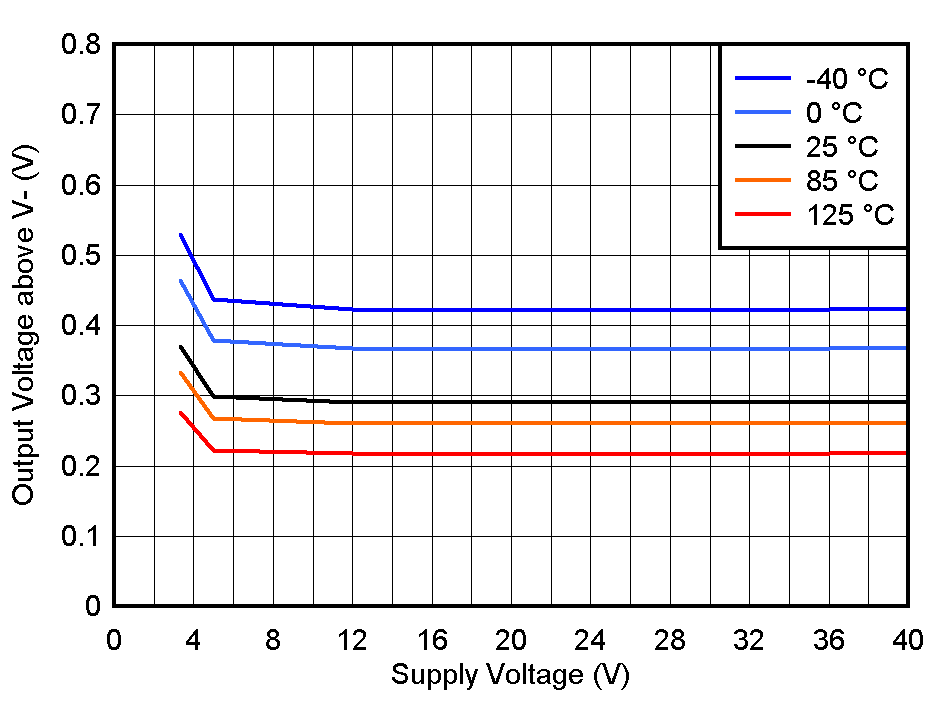

Figure 24. Output Low Voltage vs. Supply Voltage
TLV1805 VOH_vs_IO_Vs3p3.gif
VS = 3.3 V
Figure 26. Output Sourcing Current vs. Output Voltage
at 3.3V
TLV1805 VOH_vs_IO_Vs12.gif
VS = 12 V
Figure 28. Output Sourcing Current vs. Output Voltage
at 12V
TLV1805 VOH_vs_IO_Vs40.gif
VS = 40 V
Figure 30. Output Sourcing Current vs. Output Voltage
at 40V
TLV1805 HYST_vs_VS.gif
Figure 32. Hysteresis vs. Supply Voltage
TLV1805 HYST_HIST.gif
Figure 34. Hysteresis Histogram
TLV1805 TPHL_vs_VOD_Vs3p3.gif
VS = 3.3 V CL = 15pF
Figure 36. TPHL Response Time vs. Overdrive
at 3.3V
TLV1805 TPHL_vs_VOD_Vs5.gif
VS = 5 V CL = 15pF
Figure 38. TPHL Response Time vs. Overdrive
at 5V
TLV1805 TPHL_vs_VOD_Vs12.gif
VS = 12 V CL = 15pF
Figure 40. TPHL Response Time vs. Overdrive
at 12V
TLV1805 TPHL_vs_VOD_Vs40.gif
VS = 40 V CL = 15pF
Figure 42. TPHL Response Time vs. Overdrive
at 40V
TLV1805 TPHL_vs_VOD_Vs3p3_4n.gif
VS = 3.3 V CL = 4nF
Figure 44. TPHL Response Time vs. Overdrive
at 3.3V
TLV1805 TPHL_vs_VOD_Vs5_4n.gif
VS = 5 V CL = 4nF
Figure 46. TPHL Response Time vs. Overdrive
at 5V
TLV1805 TPHL_vs_VOD_Vs12_4n.gif
VS = 12 V CL = 4nF
Figure 48. TPHL Response Time vs. Overdrive
at 12V
TLV1805 TPHL_vs_VOD_Vs40_4n.gif
VS = 40 V CL = 4nF
Figure 50. TPHL Response Time vs. Overdrive
at 40V
TLV1805 TF_vs_CL_3p3V.gif
VS = 3.3 V

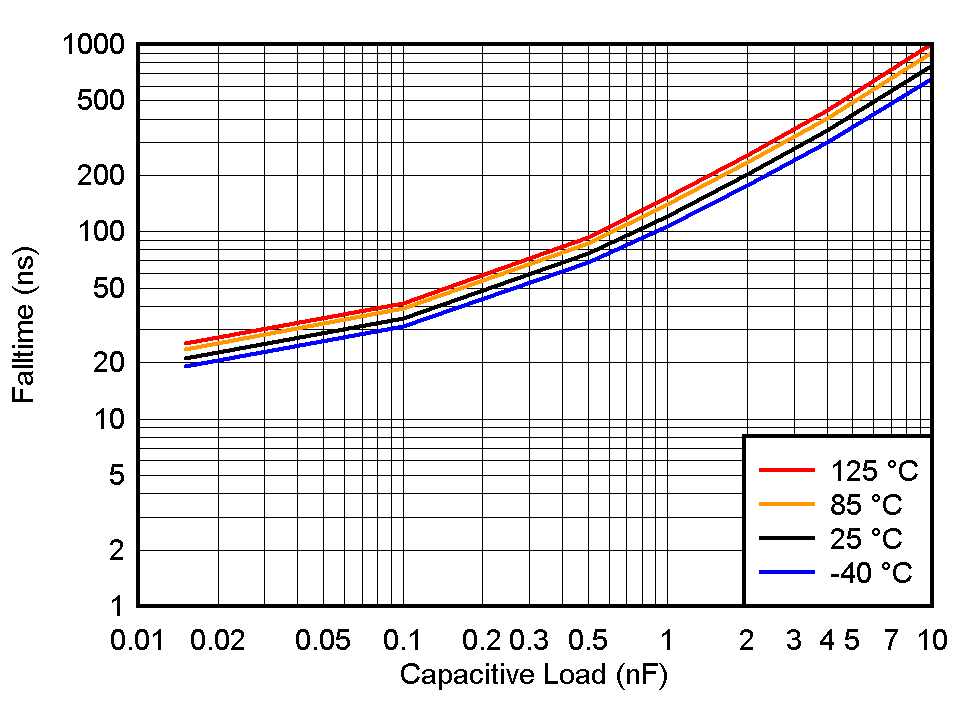

Figure 52. tFALL vs. Capacitive Load
at 3.3V

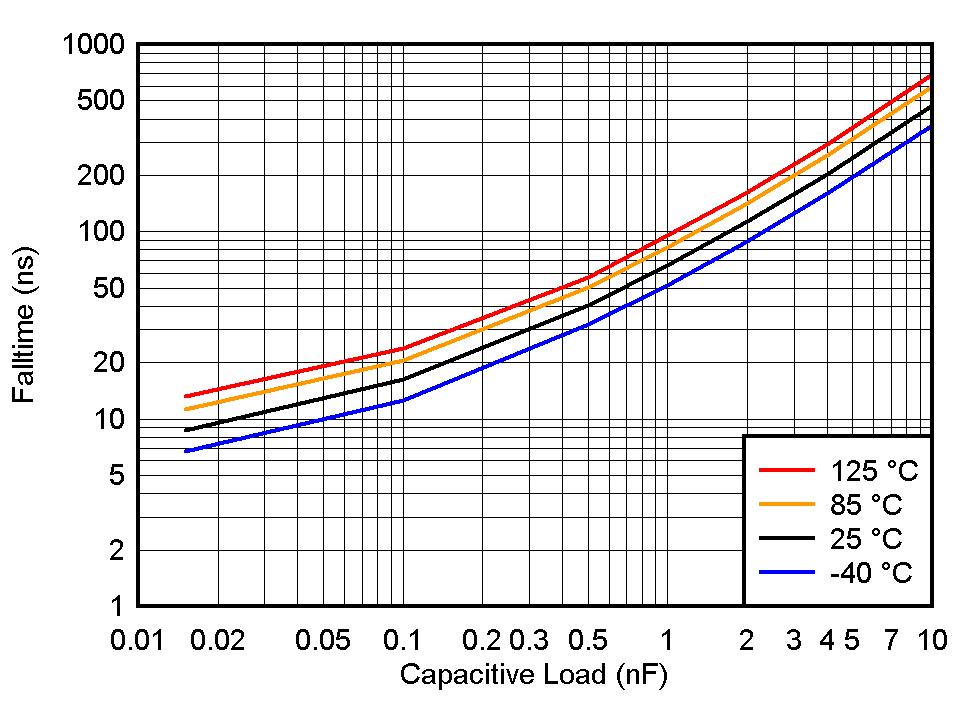

TLV1805 TF_vs_CL_5V.gif
VS = 5 V
Figure 54. tFALL vs. Capacitive Load
at 5V
TLV1805 TF_vs_CL_12V.gif
VS = 12 V

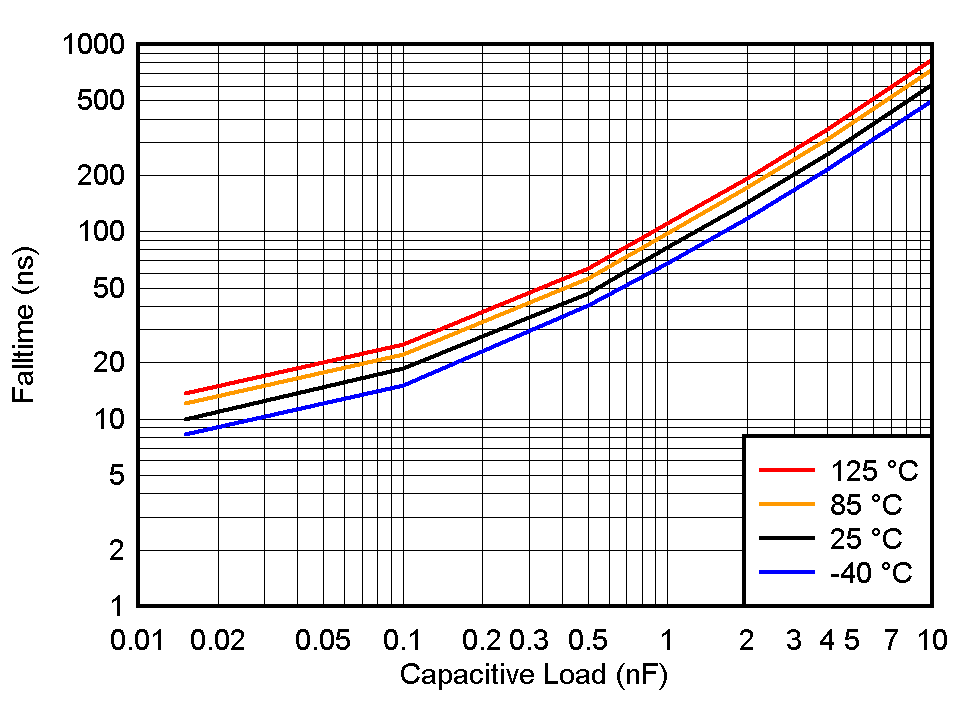

Figure 56. tFALL vs. Capacitive Load
at 12V

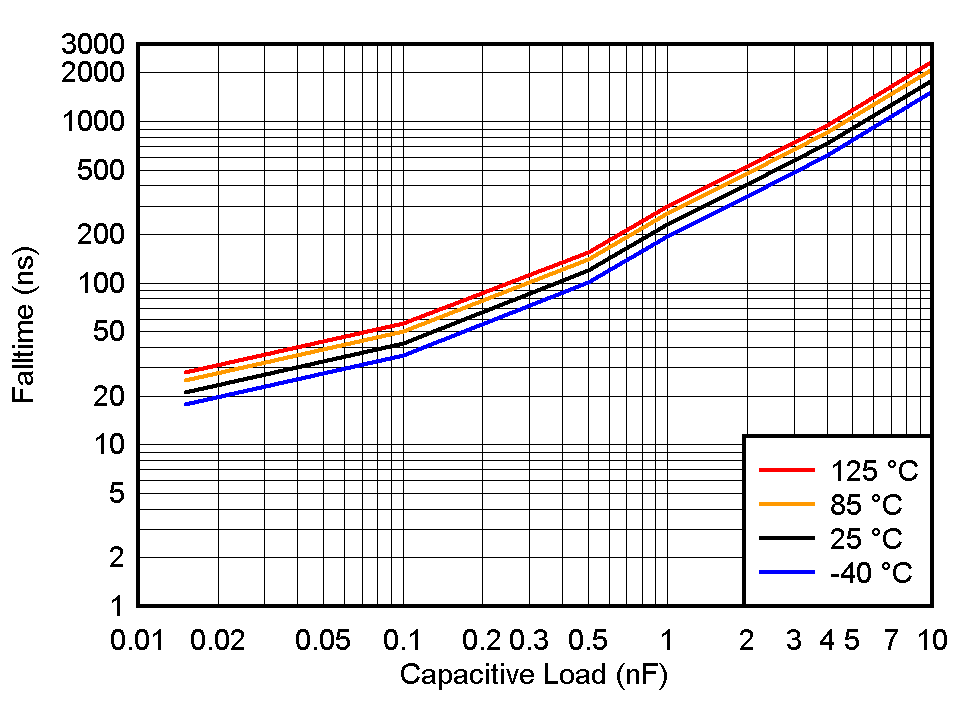

TLV1805 TF_vs_CL_40V.gif
VS = 40 V
Figure 58. tFALL vs. Capacitive Load
at 40V

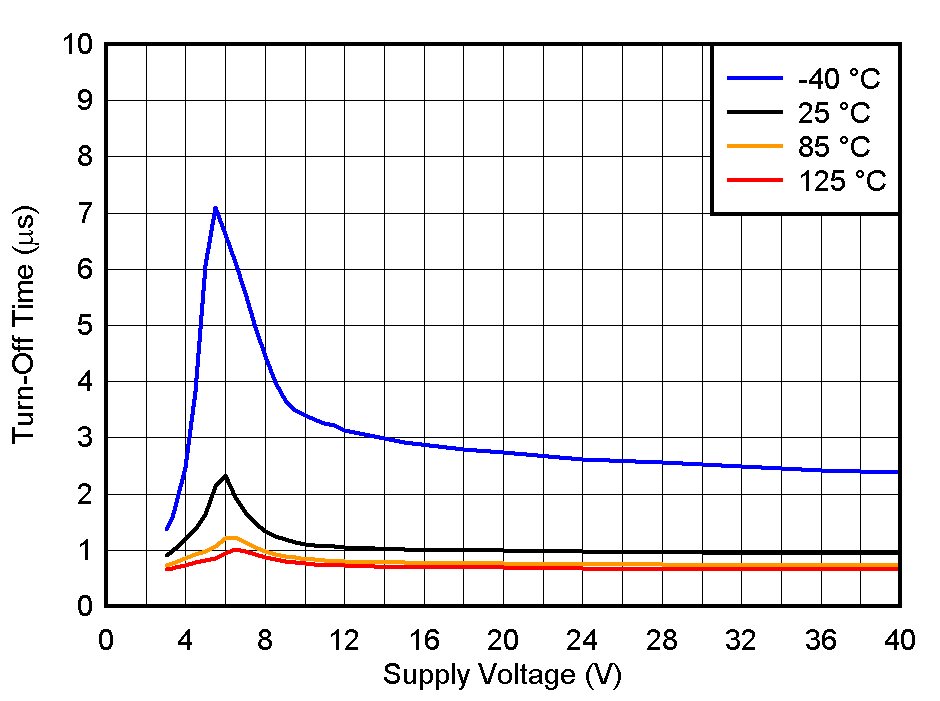

TLV1805 TOFF_vs_VS.gif
Figure 60. Turn-Off Time vs Supply Voltage
TLV1805 POR_vs_TA.gif
Figure 62. Power On Reset Voltage vs. Temperature
