9.2.3 Application Curves

TPS23521 Startup 36V 1.32mF.png
Figure 15. Start Up (Vin = 36 V)
TPS23521 Startup 72V 1.32mF.png
Figure 17. Start Up (Vin = 72 V)
TPS23521 Hot Short 72V no Load.png
Figure 19. Hot Short (Vin = 72 V, no load)
TPS23521 Hot Short 72V 1.2kW Load.png
Figure 21. Hot Short (Vin = 72V, 1.2kW load)

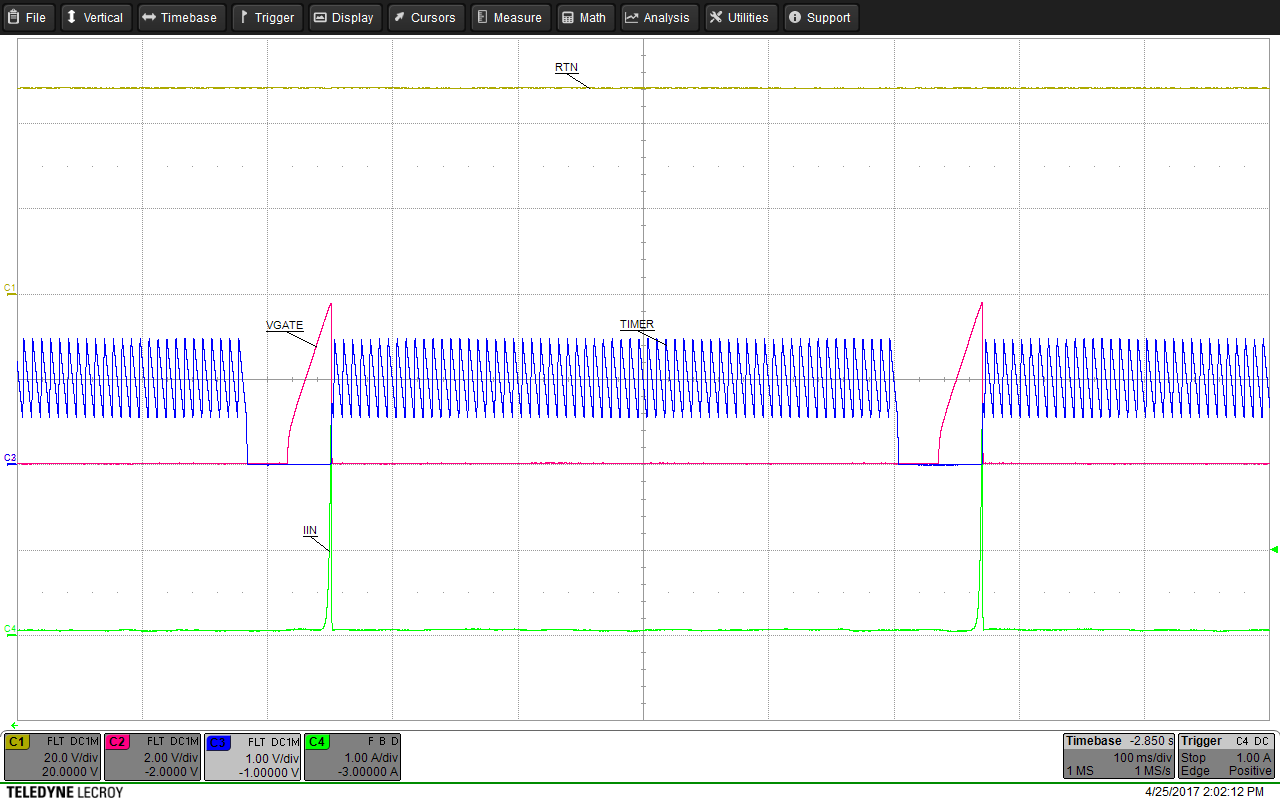

TPS23521 Retry Behavior Zoomed In.png
Figure 23. Retry Behavior
TPS23521 Start into Short 72V Zoomed In.png
Figure 25. Start Into Short (Zoomed in)
TPS23521 Startup 48V 1.32mF.png
Figure 16. Start Up (Vin = 48 V)

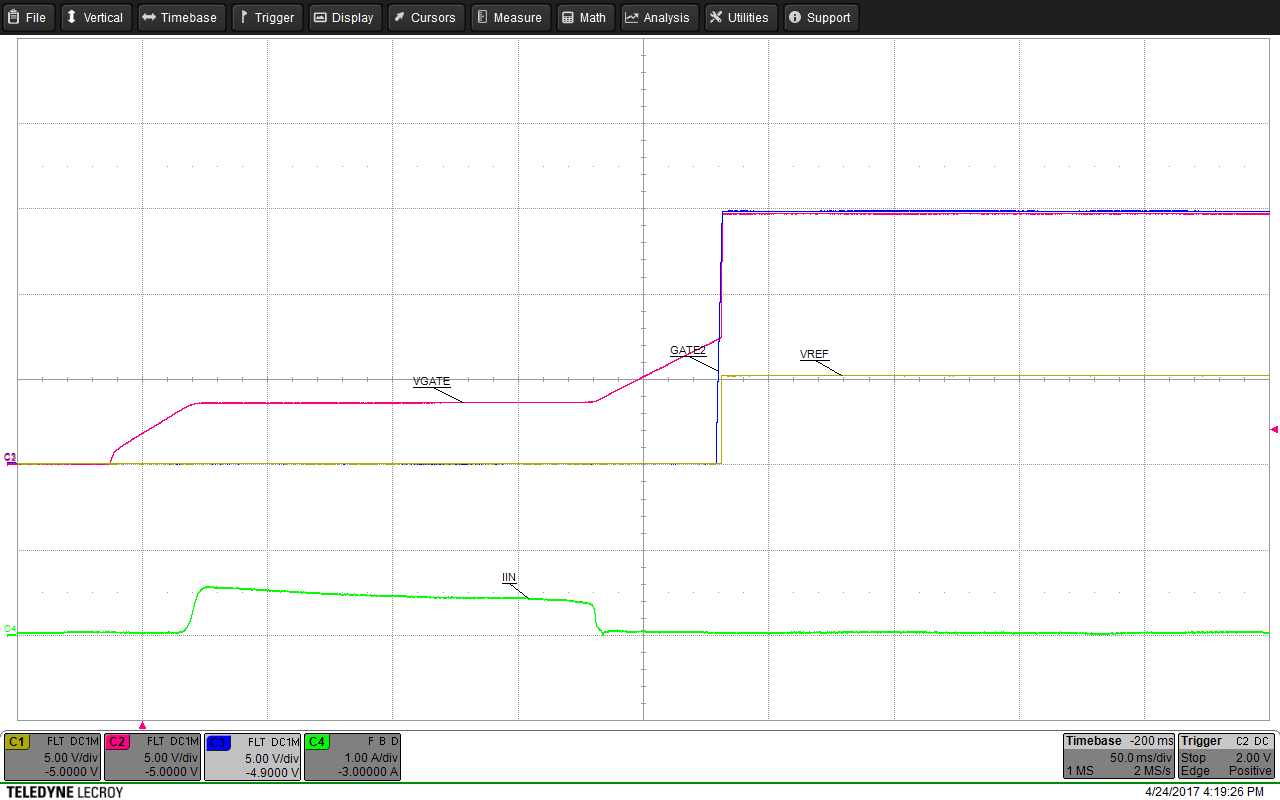

TPS23521 Startup showing VREF and GATE.png
Figure 18. Start Up (Showing GATE2 and Vref/PG)
TPS23521 Hot Short 72V No Load Zoomed In.png
Zoomed In
Figure 20. Hot Short (Vin = 72 V, no load)

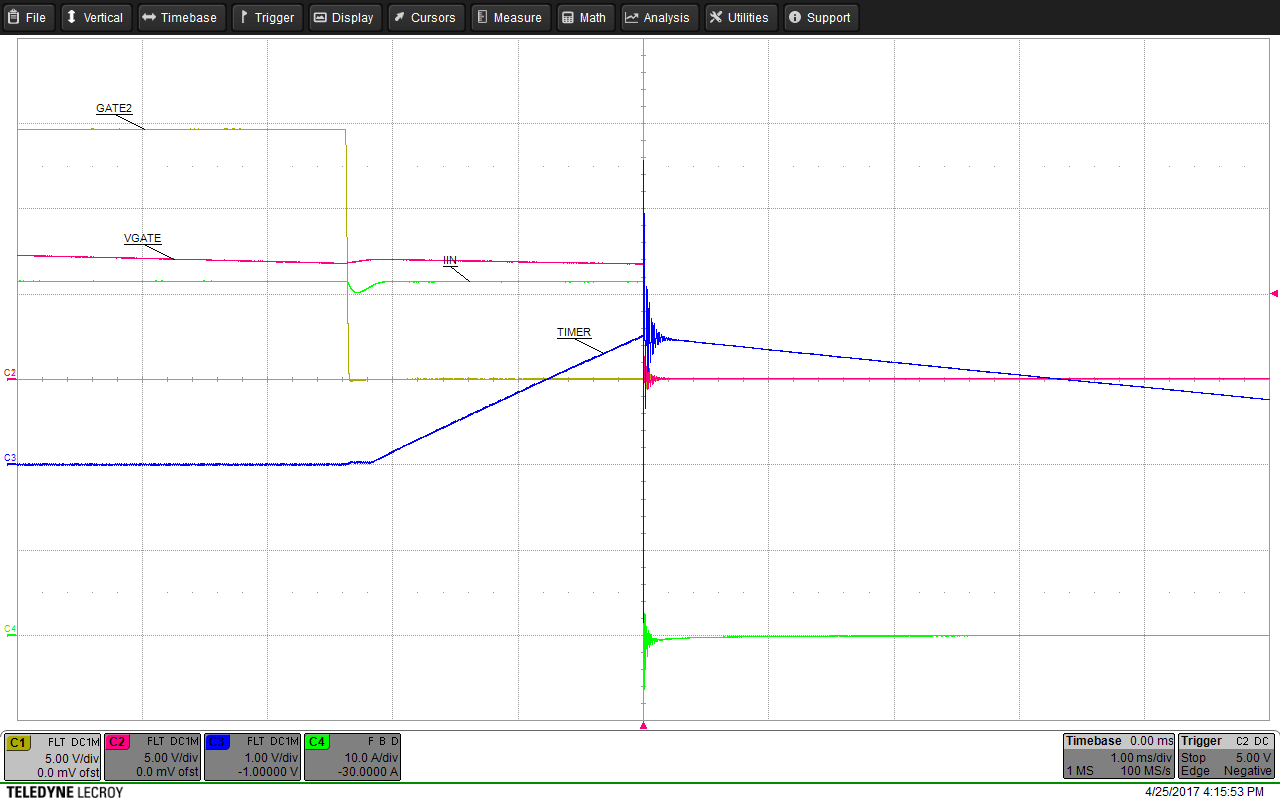

TPS23521 Gradual Over Current 36V.png
Figure 22. Gradual Over Current
TPS23521 Start into Short 72V.png
Figure 24. Start Into Short (Vin =72V)
TPS23521 LightningSurge_2kV.png
OR-ing circuit between surge and EVM
Figure 26. +2kV (2Ω) Lightning Surge
TPS23521 LightningSurge_Neg2kV.png
OR-ing circuit between surge and EVM
Figure 28. -2kV (2Ω) Lightning Surge
TPS23521 LightningSurge_2kV_2.png
OR-ing circuit between surge and EVM
Figure 27. +2kV (2Ω) Lightning Surge (zoomed in)
TPS23521 LightningSurge_Neg2kV-3.png
OR-ing circuit between surge and EVM
Figure 29. -2kV (2Ω) Lightning Surge (zoomed in)
