Typical Characteristics

at TA = 25°C, AVDD = 5 V, AVSS = 0 V, DVDD = 3.3 V, VREF = 2.5 V, data rate = 20 SPS, fCLK = 7.3728 MHz (fCLK = 10.24 MHz for data rate = 40 kSPS), and gain = 1 (unless otherwise noted)
ADS1260 ADS1261 D009_SBAS760.gif
After calibration, shorted input
Figure 9. Offset Voltage vs Temperature
ADS1260 ADS1261 D012_SBAS760.gif
Shorted input, 30 units
Figure 11. Offset Voltage Drift Distribution
ADS1260 ADS1261 D001_SBAS760.gif
After calibration
Figure 13. Offset Voltage vs Reference Voltage
ADS1260 ADS1261 D014_SBAS760.gif
After calibration
Figure 15. Gain Error vs Temperature
ADS1260 ADS1261 D002_SBAS760.gif
After calibration
Figure 17. Gain Error vs Reference Voltage
ADS1260 ADS1261 D004_SBAS760.gif
7200 SPS, Sinc1

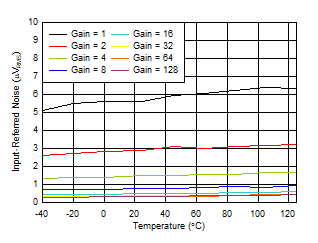

Figure 19. Noise vs Temperature
ADS1260 ADS1261 D006_SBAS760.gif
Figure 21. Noise vs Reference Voltage
ADS1260 ADS1261 D029_SBAS760.gif
20 SPS, gain = 128, 256 data points
Figure 23. Conversion Data Histogram
ADS1260 ADS1261 D031_SBAS760.gif
7200 SPS, gain = 128, 8192 data points
Figure 25. Conversion Data Histogram
ADS1260 ADS1261 D007_SBAS760.gif
Figure 27. Integral Nonlinearity vs Temperature
ADS1260 ADS1261 D008_SBAS760.gif
Figure 29. Integral Nonlinearity vs Reference Voltage
ADS1260 ADS1261 D204_SBAS760.gif
After calibration, 30 units
Figure 31. Voltage Reference Long-Term Drift
ADS1260 ADS1261 D017_SBAS760.gif
30 units
Figure 33. Temperature Sensor Voltage Histogram
ADS1260 ADS1261 D018_SBAS760.gif
Figure 35. Operating Current vs Temperature
ADS1260 ADS1261 D026_SBAS760.gif
Figure 37. PGA Low Monitor Threshold
ADS1260 ADS1261 D150_SBAS760.gif
Data rate = 1200 SPS
Figure 39. CMRR vs Frequency
ADS1260 ADS1261 D034_SBAS760.gif
Figure 41. CMRR and PSRR vs Temperature
ADS1260 ADS1261 D019_SBAS760.gif
IIDAC = 250 µA
Figure 43. IDAC Current vs IDAC Voltage
ADS1260 ADS1261 D021_SBAS760.gif
IIDAC = 3000 µA

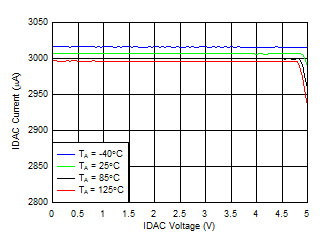

Figure 45. IDAC Current vs IDAC Voltage
ADS1260 ADS1261 D035_SBAS760.gif
IIDAC1 = IIDAC2 = 1000 µA
Figure 47. IDAC Current Match vs IDAC Voltage
ADS1260 ADS1261 D010_SBAS760.gif
Chop mode, after calibration, shorted input
Figure 10. Offset Voltage vs Temperature
ADS1260 ADS1261 D011_SBAS760.gif
Chop mode, shorted input, 30 units
Figure 12. Offset Voltage Drift Distribution
ADS1260 ADS1261 D205_SBAS760.gif
After calibration, gain = 1
Figure 14. Offset Voltage Long-Term Drift
ADS1260 ADS1261 D013_SBAS760.gif
30 units
Figure 16. Gain Error Drift Distributions
ADS1260 ADS1261 D003_SBAS760.gif
20 SPS, Sinc4
Figure 18. Noise vs Temperature
ADS1260 ADS1261 D005_SBAS760.gif
40000 SPS, Sinc5
Figure 20. Noise vs Temperature
ADS1260 ADS1261 D028_SBAS760.gif
20 SPS, gain = 4, 256 data points
Figure 22. Conversion Data Histogram
ADS1260 ADS1261 D030_SBAS760.gif
7200 SPS, gain = 4, 8192 data points

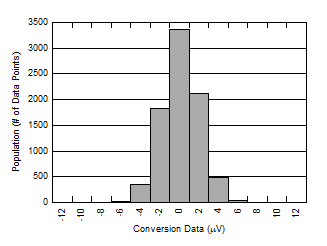

Figure 24. Conversion Data Histogram
ADS1260 ADS1261 D033_SBAS760.gif

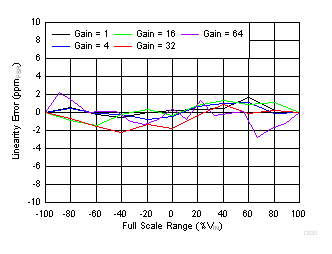

Figure 26. Integral Nonlinearity vs VIN
ADS1260 ADS1261 D015_SBAS760.gif
30 Units
Figure 28. Integral Nonlinearity Distribution
ADS1260 ADS1261 D102_SBAS760.gif
ADS1260B, ADS1261B - 30 units
Figure 30. Voltage Reference vs Temperature
ADS1260 ADS1261 D024_SBAS760.gif
IREFP measured with VREFN = AVSS
IREFN measured with VREFP = AVDD

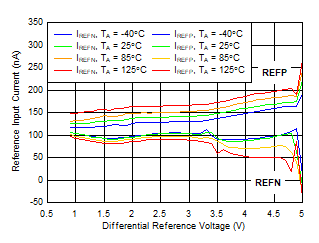

Figure 32. Reference Input Current vs Reference Voltage
ADS1260 ADS1261 D016_SBAS760.gif
30 units
Figure 34. Internal Oscillator vs Temperature
ADS1260 ADS1261 D025_SBAS760.gif
Figure 36. PGA High Monitor Threshold
ADS1260 ADS1261 D027_SBAS760.gif

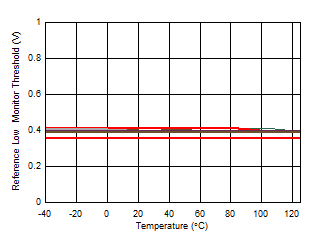

Figure 38. Reference Voltage Low Alarm Threshold
ADS1260 ADS1261 D151_SBAS760.gif
Data rate = 1200 SPS
Figure 40. PSRR vs Frequency
ADS1260 ADS1261 D022_SBAS760.gif
IIDAC = 50 µA

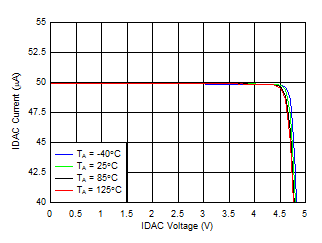

Figure 42. IDAC Current vs IDAC Voltage
ADS1260 ADS1261 D020_SBAS760.gif
IIDAC = 1000 µA
Figure 44. IDAC Current vs IDAC Voltage
ADS1260 ADS1261 D023_SBAS760.gif
IIDAC1 = IIDAC2 = 250 µA
Figure 46. IDAC Current Match vs IDAC Voltage
