3.1 Differential Signal Spacing

To minimize crosstalk in high-speed interface implementations, the spacing between the signal pairs must be a minimum of 5 times the width of the trace. This spacing is referred to as the 5W rule. A PCB design with a calculated trace width of 6 mils requires a minimum of 30 mils spacing between high-speed differential pairs. Also, maintain a minimum keep-out area of 30 mils to any other signal throughout the length of the trace. Where the high-speed differential pairs abut a clock or a periodic signal, increase this keep-out to a minimum of 50 mils to ensure proper isolation. For examples of high-speed differential signal spacing, see #SPRAAR76242 and #SPRAAR79659.

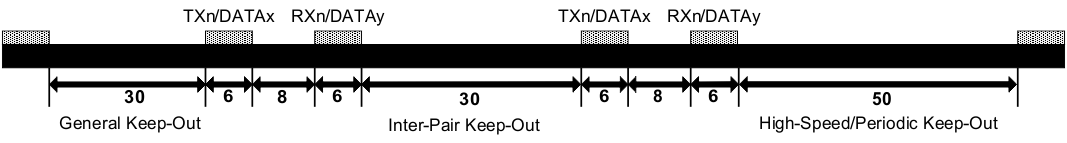

GUID-5BCD5A0F-7EDF-4D28-821D-7238AD5C8733-low.gif Figure 3-1 USB3/SATA/PCIe/HDMI/SGMII/CSI Differential Signal Spacing (mils)
GUID-9EF8B4C4-BE3B-4166-B1A1-3FFEC276D7C2-low.gif Figure 3-2 USB2 Differential Signal Spacing (mils)
