4.11.2 RX Typical Characteristics at 800MHz

Typical values at TA = +25°C, ADC Sampling Rate = 2949.12 GHz. Default conditions: output sample rate = 491.52MSPS (decimate by 6), PLL clock mode with fREF = 491.52MHz, AIN = –3 dBFS, DSA setting = 4 dB.

AFE7906 RX In-Band Gain Flatness for Channel 1RX, fIN = 830 MHz
With 0.8 GHz matching, normalized to 830 MHz
Figure 4-50 RX In-Band Gain Flatness for Channel 1RX, fIN = 830 MHz
AFE7906 RX Input Phase vs Temperature and DSA at fOUT = 0.8 GHz
With 0.8 GHz matching, normalized to phase at 25°C
Figure 4-52 RX Input Phase vs Temperature and DSA at fOUT = 0.8 GHz
AFE7906 RX Calibrated Differential Amplitude Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 4-54 RX Calibrated Differential Amplitude Error vs DSA Setting at 0.8 GHz
AFE7906 RX Calibrated Integrated Amplitude Error vs DSA Setting at 2.6 GHz
With 0.8 GHz matching
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 4-56 RX Calibrated Integrated Amplitude Error vs DSA Setting at 2.6 GHz

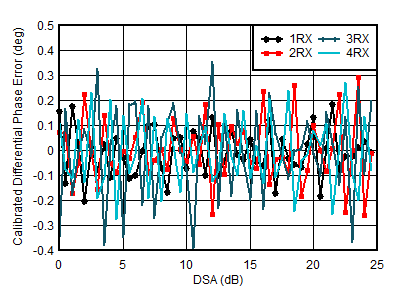

AFE7906 RX Calibrated Differential Phase Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 4-58 RX Calibrated Differential Phase Error vs DSA Setting at 0.8 GHz
AFE7906 RX Calibrated Integrated Phase Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 4-60 RX Calibrated Integrated Phase Error vs DSA Setting at 0.8 GHz
AFE7906 RX Noise Spectral Density vs Temperature at 0.8 GHz
With 0.8 GHz matching, 12.5-MHz offset from tone
Figure 4-62 RX Noise Spectral Density vs Temperature at 0.8 GHz
AFE7906 RX Noise Spectral Density vs Input Amplitude and Channel at 0.8 GHz
With 0.8 GHz matching, 12.5-MHz offset from tone
Figure 4-64 RX Noise Spectral Density vs Input Amplitude and Channel at 0.8 GHz
AFE7906 RX IMD5 vs DSA Setting and Temperature at 0.8 GHz
With 0.8 GHz matching, each tone –7 dBFS, tone spacing = 20 MHz
Figure 4-66 RX IMD5 vs DSA Setting and Temperature at 0.8 GHz
AFE7906 RX IMD3 vs Input Level and Temperature at 0.8 GHz
With 0.8 GHz matching, tone spacing = 20 MHz, DSA = 12 dB
Figure 4-68 RX IMD3 vs Input Level and Temperature at 0.8 GHz
AFE7906 RX HD2 vs DSA Setting and Channel at 0.8 GHz
With 0.8 GHz matching, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-70 RX HD2 vs DSA Setting and Channel at 0.8 GHz
AFE7906 RX HD2 vs Input Level and Temperature at 0.8 GHz
With 0.8 GHz matching, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-72 RX HD2 vs Input Level and Temperature at 0.8 GHz
AFE7906 RX HD3 vs DSA Setting and Temperature at 0.8 GHz
With 0.8 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 4-74 RX HD3 vs DSA Setting and Temperature at 0.8 GHz
AFE7906 RX HD3 vs Input Level and Temperature at 0.8 GHz
With 0.8 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 4-76 RX HD3 vs Input Level and Temperature at 0.8 GHz
AFE7906 RX IMD3 vs Supply and Channel at 0.8 GHz
With 0.8 GHz matching, –7 dBFS each tone, 20-MHz tone spacing, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 4-78 RX IMD3 vs Supply and Channel at 0.8 GHz
AFE7906 RX Noise Spectral Density vs Supply and Channel at 0.8 GHz
With 0.8 GHz matching, 12.5-MHz offset, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 4-80 RX Noise Spectral Density vs Supply and Channel at 0.8 GHz
AFE7906 RX Input Fullscale vs Temperature and Channel at 800MHz
With 0.8 GHz matching, normalized to fullscale at 25°C for each channel
Figure 4-51 RX Input Fullscale vs Temperature and Channel at 800MHz
AFE7906 RX Uncalibrated Differential Amplitude Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 4-53 RX Uncalibrated Differential Amplitude Error vs DSA Setting at 0.8 GHz
AFE7906 RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 4-55 RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 0.8 GHz
AFE7906 RX Uncalibrated Differential Phase Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 4-57 RX Uncalibrated Differential Phase Error vs DSA Setting at 0.8 GHz
AFE7906 RX Uncalibrated Integrated Phase Error vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 4-59 RX Uncalibrated Integrated Phase Error vs DSA Setting at 0.8 GHz
AFE7906 RX Output FFT at 0.8 GHz
With 0.8 GHz matching, fIN = 840 MHz, AIN= –3 dBFS
Figure 4-61 RX Output FFT at 0.8 GHz
AFE7906 RX Noise Spectral Density vs Input Amplitude and Temperature at 0.8 GHz
With 0.8 GHz matching, DSA Setting = 12 dB, 12.5-MHz offset from tone
Figure 4-63 RX Noise Spectral Density vs Input Amplitude and Temperature at 0.8 GHz
AFE7906 RX IMD3 vs DSA Setting and Temperature at 0.8 GHz
A.
With 0.8 GHz matching, each tone –7 dBFS, tone spacing = 20 MHz
Figure 4-65 RX IMD3 vs DSA Setting and Temperature at 0.8 GHz
AFE7906 RX IMD3 vs Input Level and Temperature at 0.8 GHz
With 0.8 GHz matching, tone spacing = 20 MHz, DSA = 4 dB
Figure 4-67 RX IMD3 vs Input Level and Temperature at 0.8 GHz
AFE7906 RX IMD5 vs Input Level and Temperature at 0.8 GHz
With 0.8 GHz matching, tone spacing = 20 MHz, DSA = 12 dB
Figure 4-69 RX IMD5 vs Input Level and Temperature at 0.8 GHz
AFE7906 RX HD2 vs DSA Setting and Temperature at 0.8 GHz
With 0.8 GHz matching, measured after HD2 trim, DDC bypass mode (TI only mode for characterization)
Figure 4-71 RX HD2 vs DSA Setting and Temperature at 0.8 GHz

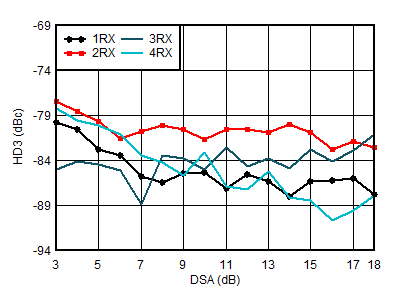

AFE7906 RX HD3 vs DSA Setting and Channel at 0.8 GHz
With 0.8 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 4-73 RX HD3 vs DSA Setting and Channel at 0.8 GHz
AFE7906 RX HD3 vs Input Level and Channel at 0.8 GHz
With 0.8 GHz matching, DDC bypass mode (TI only mode for characterization)
Figure 4-75 RX HD3 vs Input Level and Channel at 0.8 GHz
AFE7906 RX Non-HD2/3 vs DSA Setting at 0.8 GHz
With 0.8 GHz matching
Figure 4-77 RX Non-HD2/3 vs DSA Setting at 0.8 GHz
AFE7906 RX IMD5 vs Supply and Channel at 0.8 GHz
With 0.8 GHz matching, –7 dBFS each tone, 20-MHz tone spacing, all supplies at MIN, TYP, or MAX recommended operating voltages
Figure 4-79 RX IMD5 vs Supply and Channel at 0.8 GHz
