6.12.5.18 Timers

For more details about features and additional description information on the device Timers, see the corresponding subsections within Signal Descriptions and Detailed Description sections.

Table 6-128 Timer Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 0.5 5 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 10 pF

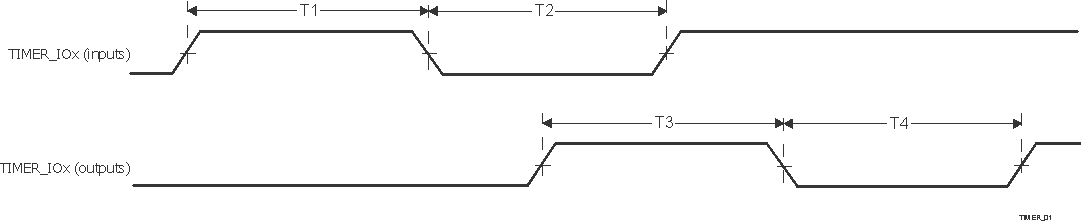

Table 6-129 Timer Input Timing Requirements see Figure 6-109
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
T1 tw(TINPH) Pulse duration, high CAPTURE 4P(1)+ 2.5 ns
T2 tw(TINPL) Pulse duration, low CAPTURE 4P(1)+ 2.5 ns
(1) P = functional clock period in ns.
Table 6-130 Timer Output Switching Characteristics see Figure 6-109
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
T3 tw(TOUTH) Pulse duration, high PWM 4P(1) - 2.5 ns
T4 tw(TOUTL) Pulse duration, low PWM 4P(1) - 2.5 ns
(1) P = functional clock period in ns.
AM62A7 AM62A7-Q1 AM62A3 AM62A3-Q1 AM62A1-Q1 Timer Timing Requirements and Switching Characteristics Figure 6-109 Timer Timing Requirements and Switching Characteristics

For more information, see Timers section in Peripherals chapter in the device TRM.
